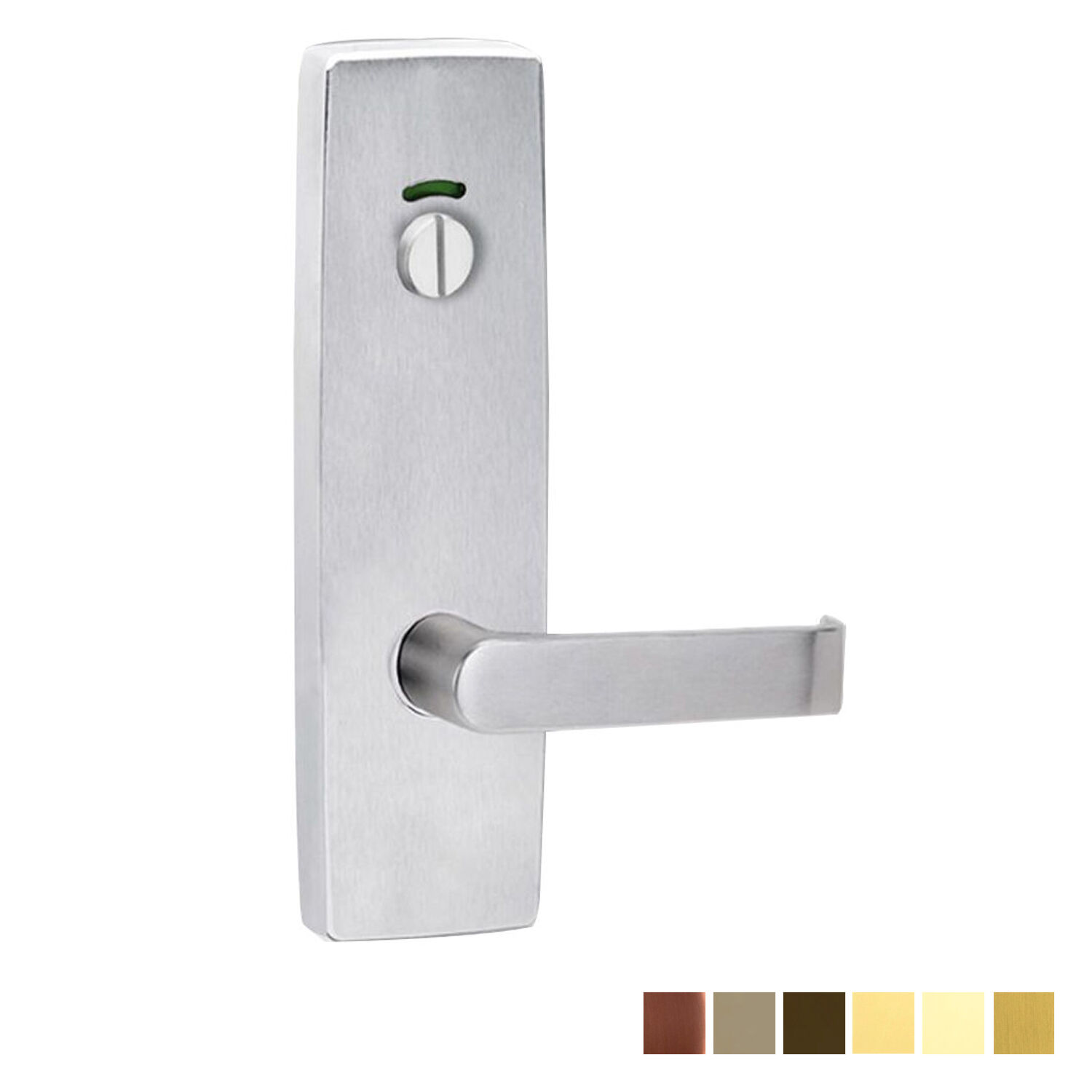

Lockwood 1814/59 Square End Plate w/ Privacy Indicator Emergency Turn & 59 Lever

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Designed for use with the Lockwood Selector & Synergy Series Mortice Latches
• Lockwood lever Overture 59
• Rectangular exterior square end plate
• Non-handed

Specifications:

• Door Thickness: 32mm - 45mm
• Cylinder Pitch: 64mm
• Fixing Centres: 148mm

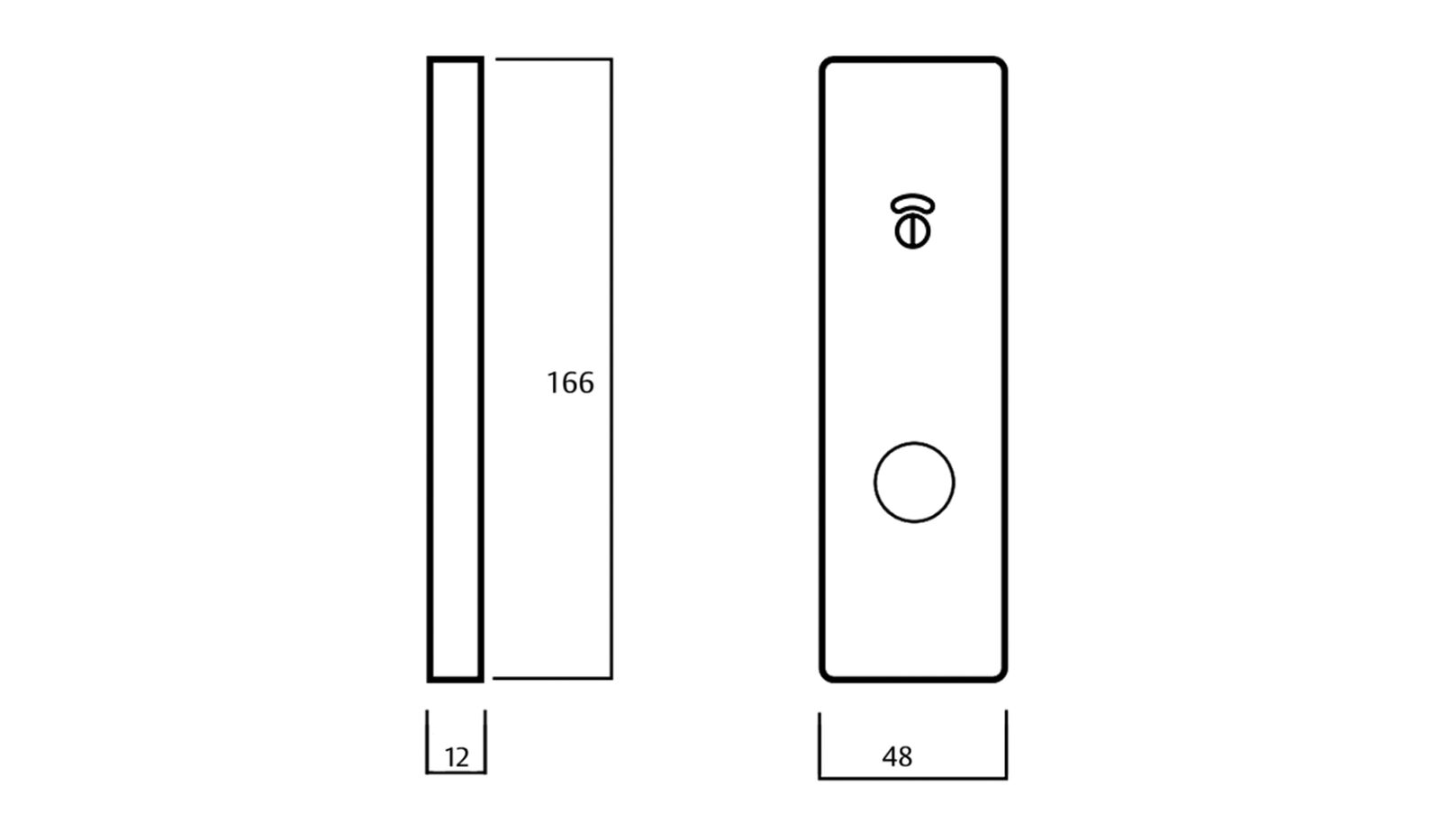

• Plate Measures:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm

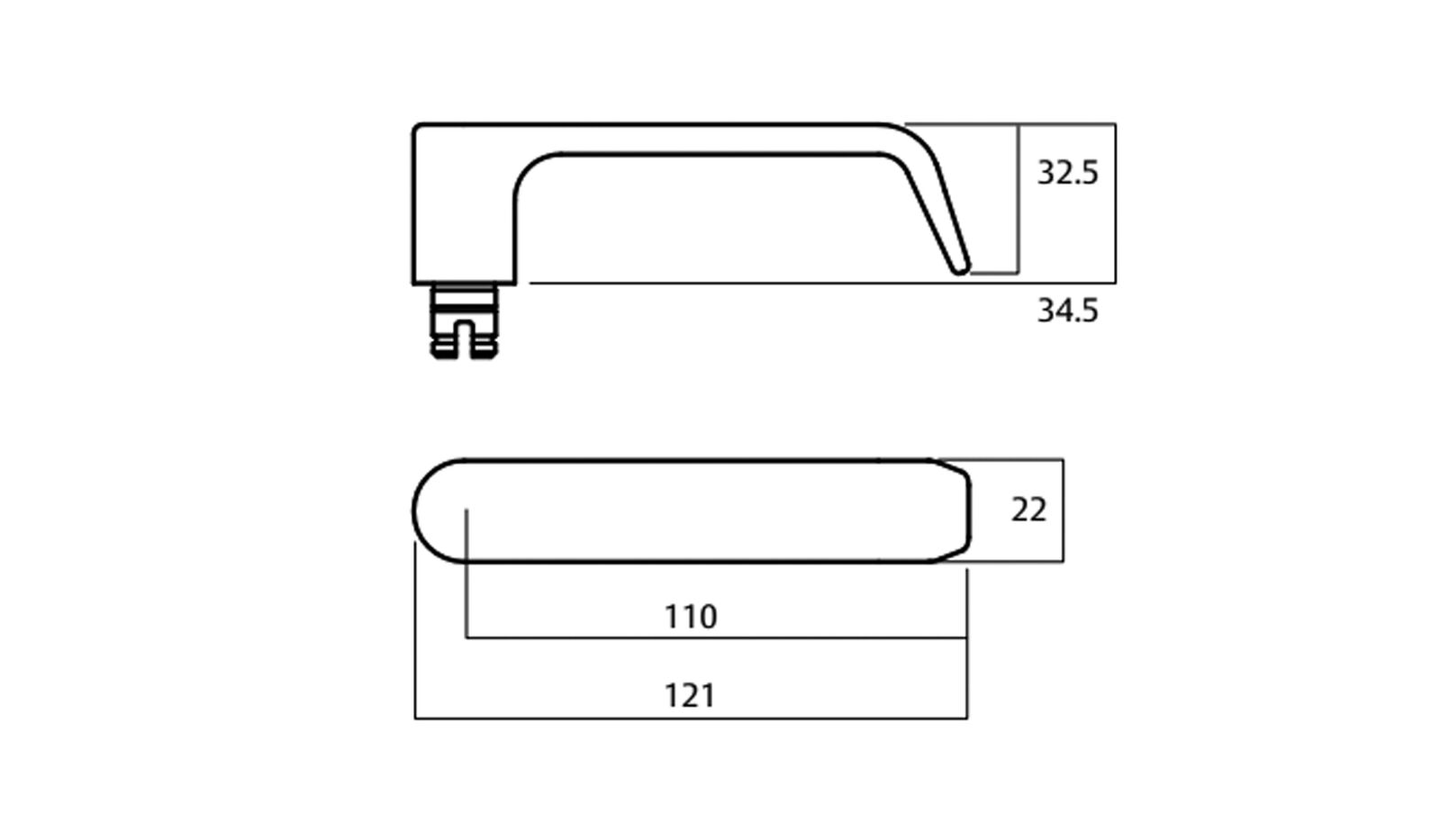

• Lever Dimensions:
  • Length: 121mm
  • Projection: 57.5mm
• Plate Has A Lever: Yes
• Plate Has An Emergency Slot Turn: Yes
• Plate Has An Indicator: Yes
• Fixing: Concealed Fix
• Available Finish:
  • Antique Copper
  • Architectural Bronze
  • Oil Rubbed Bronze
  • Polished Brass
  • Polished Brass Unlacquered
  • Satin Brass
  • Satin Chrome

Ratings / Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
• Disabled access AS1428.1 compliant lever
