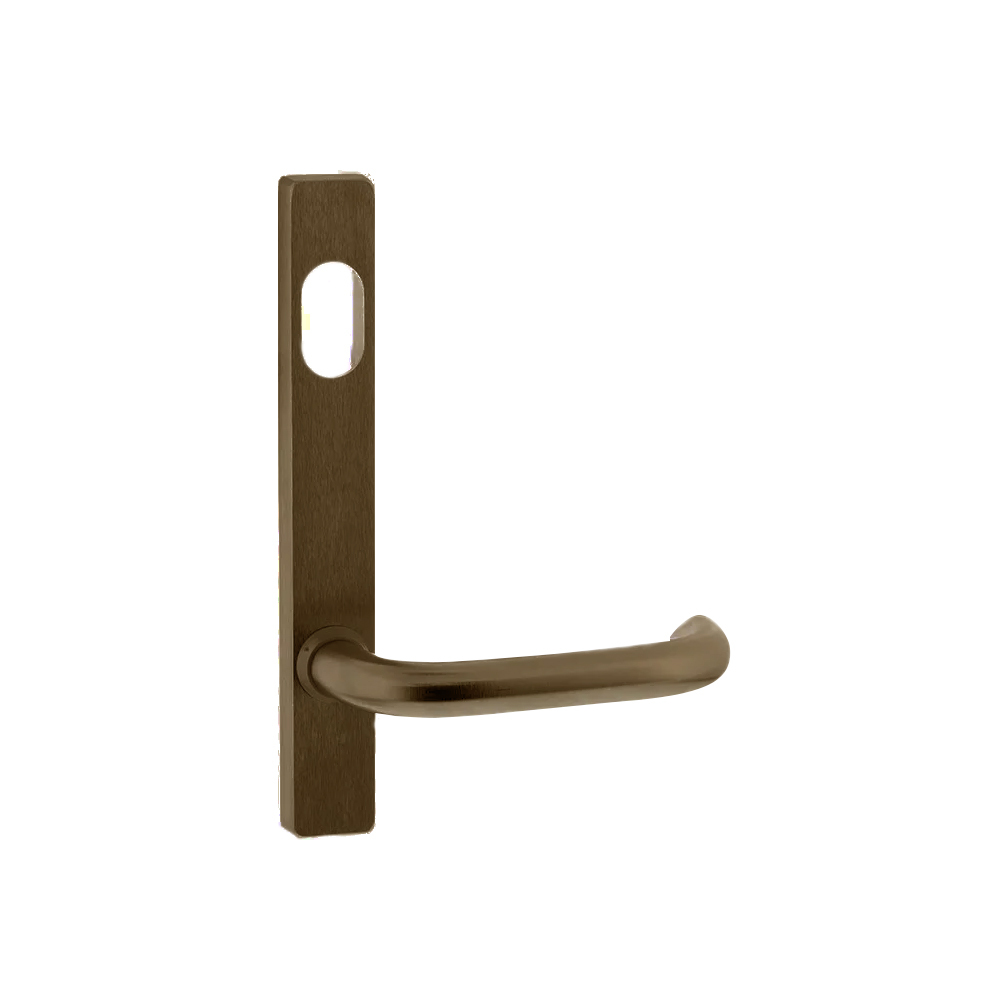

Lockwood 4801 Square End Plate With Cylinder Hole and 70 Lever
4801/70ORB

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Square End Plate suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Designed for use with Lockwood 3580/3780 series locks
• Narrow stile exterior square end plate
• Cylinder hole and 70 series tubular lever
• Concealed fixing
• Plates are designed to fit back to back
• External plates supplied with fixing screws
• Disabled access AS1428.1 compliant lever

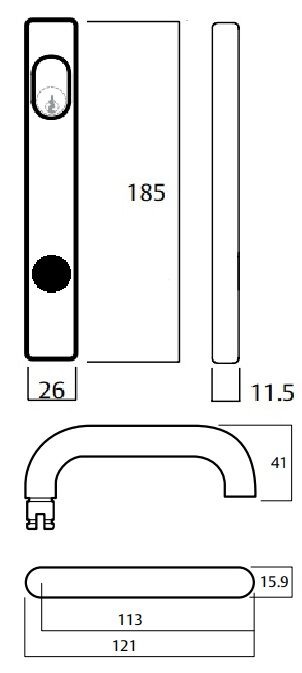

Specifications:

• Screw Fixing Centres:160 mm
• Plate Size: 185mm x 26mm x 11.5mm
• Door Thickness: 32mm - 50mm
• Internal / External: External
• Plate Type: Square End
• Material: Brass
• Plate Has A Lever: Yes
• Plate Has Oval Cylinder Hole: Yes
• Finish: Oil Rubbed Bronze
