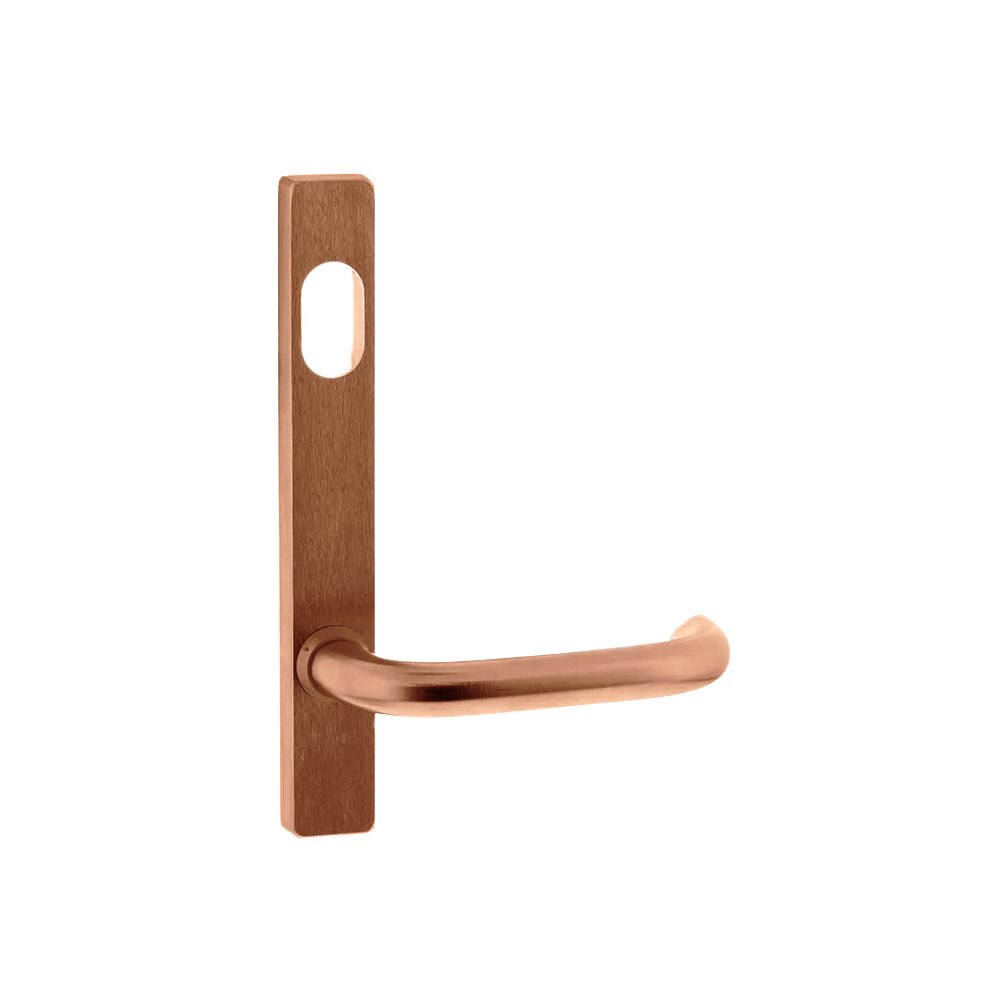

Lockwood 4801 Square End Plate With Cylinder Hole and 70 Lever
4801/70AC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Square End Plate suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • Designed for use with Lockwood 3580/3780 series locks
  • Narrow stile exterior square end plate
  • Cylinder hole and 70 series tubular lever
  • Concealed fixing
  • Plates are designed to fit back to back
  • External plates supplied with fixing screws
  • Disabled access AS1428.1 compliant lever

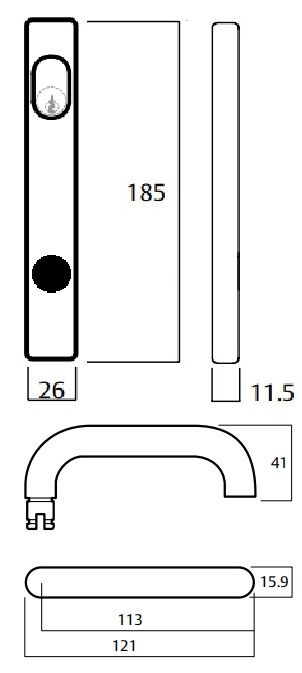

Specifications:

  • Screw Fixing Centres:160 mm
  • Plate Size: 185mm x 26mm x 11.5mm
  • Door Thickness: 32mm - 50mm
  • Internal / External: External
  • Plate Type: Square End
  • Material: Brass
  • Plate Has A Lever: Yes
  • Plate Has Oval Cylinder Hole: Yes
  • Finish: Antique Copper

SKU ASS480170AC
Barcode # 9340116042145
Brand Lockwood
