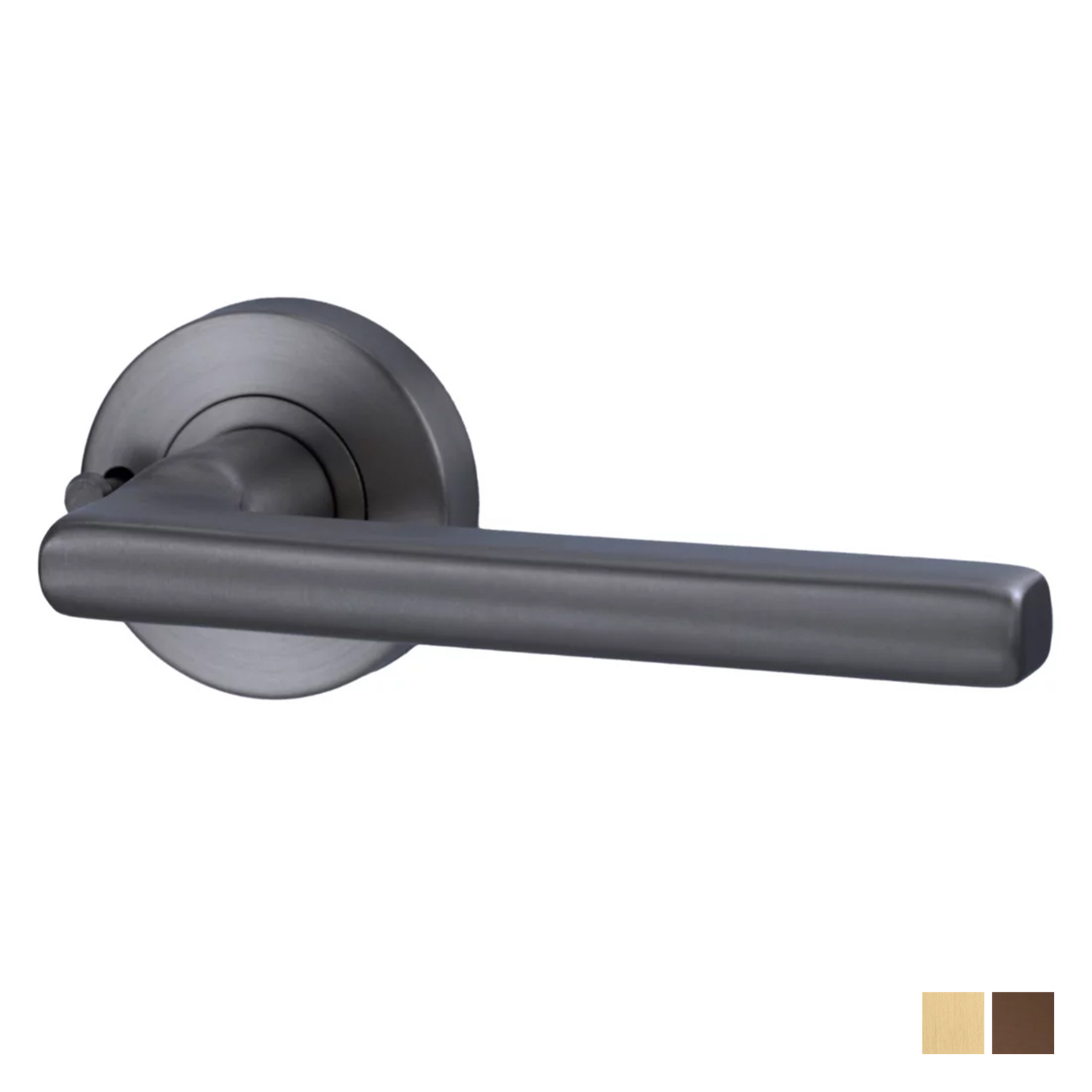

Lockwood Vivid V4 Privacy Set

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

  • 2 x Lever
  • 2 x Rose Trim

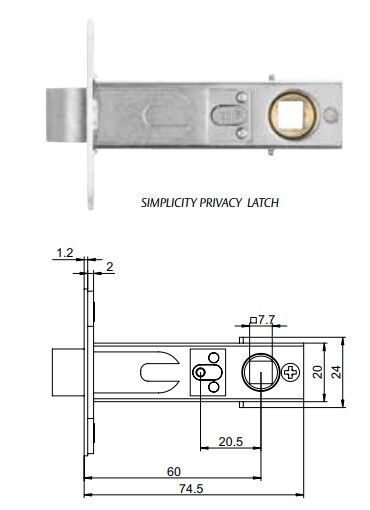

  • 1 x Privacy Latch
  • 1 x Face Plate
  • 1 x Privacy Pin
  • 1 x Pointed Tool
  • 2 x Spindle
  • 2 x Spindle Springs
  • 2 x Through Fix Screws
  • 2 x Hex Inserts
  • 1 x Strike Plate
  • 1 x Dustbox
  • 4 x Timber Mounting Screws

Features:

  • A stylish range of internal door furniture suitable for use in residential dwellings.
  • All fixings are concealed beneath a removable rose trim providing an aesthetically appealing installation.
  • Finishes are derived from a physical vapor deposition (PVD) surface treatment which offers a range of benefits, including sustainability and durability.

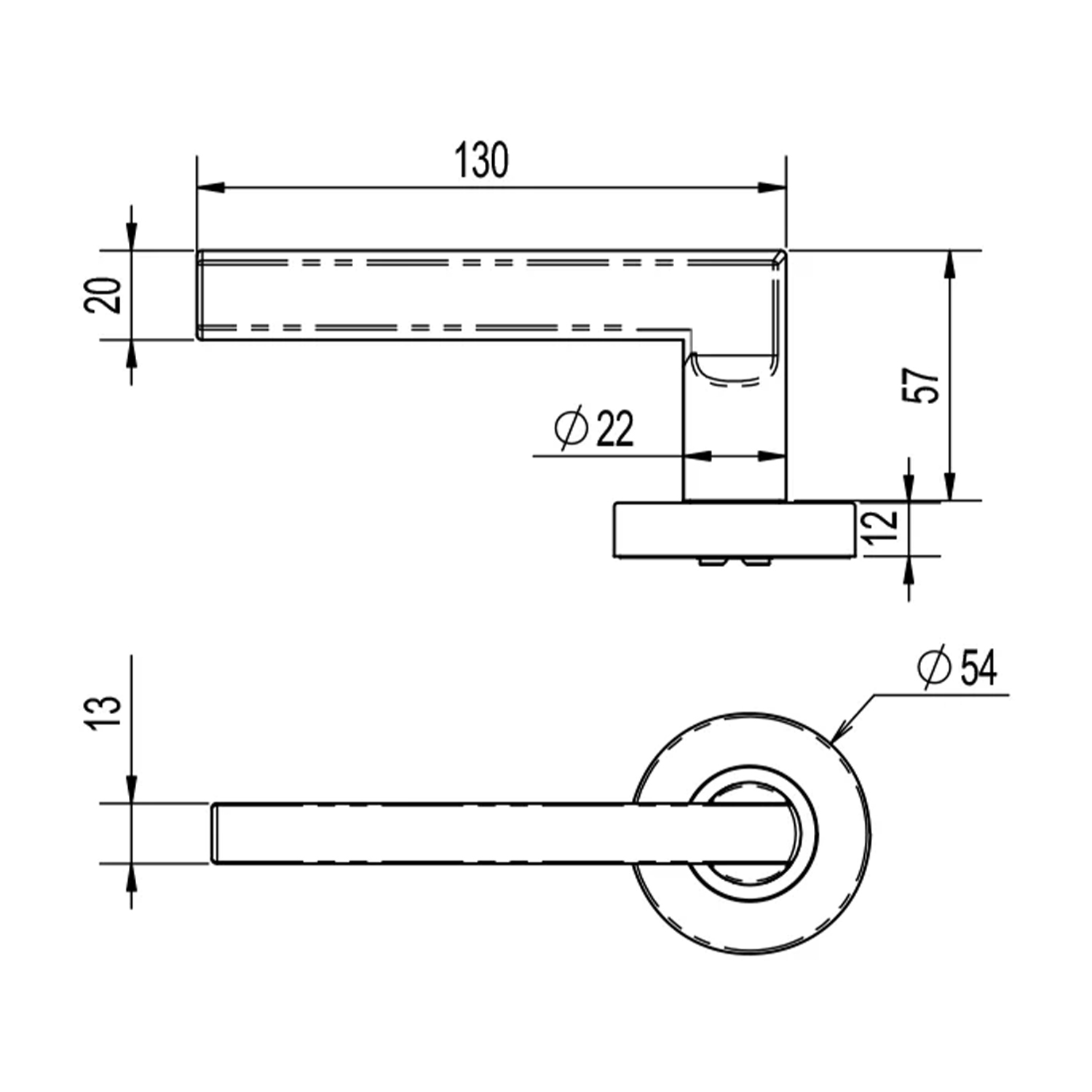

Specifications:

  • Rose Diameter: 54mm
  • Rose Thickness: 12mm
  • Lever Length: 130mm
  • Lever Width: 13mm
  • Lever Thickness: 22mm
  • Door Thickness: 32mm - 45mm
  • Projection: 69mm
  • Available Finish:
    • Gunmetal
    • Satin Brass
    • Satin Bronze

Standards and Compliance:

  • Tested to AS4145.2 2008 for Durability passing D7 - 300,000 cycles.
  • Tested to AS4145.2 2008 for Neutral Salt Spray, passing C6 - 168 hours.
  • AS1428.1-2009, Designed for access and mobility.
SKU ASSVIV2V4_
Brand Lockwood
