McCallum Angle Shoe Aluminium Pivot Hinge
P436

Includes:

  • 2 x Pivot hinges w/ screws

Application:

  • For ceiling and duct hatches, laundry chutes.
  • Windows and shutters, awning flaps ventilators and hoppers.
  • Joinery and furniture.

Advantages:

  • Simple hand tool installation.
  • No special skills required.
  • Non-handed, universal pivots.

Specifications:

  • Plates: Aluminium T6 temper
  • Rivet Material: Steel, Zinc Plated
  • Bearing Bush: Nylon 6
  • Geometry: Non-handed, universal pivots
  • Max Load: 50kg Door
  • Finish: Silver Powder Coated

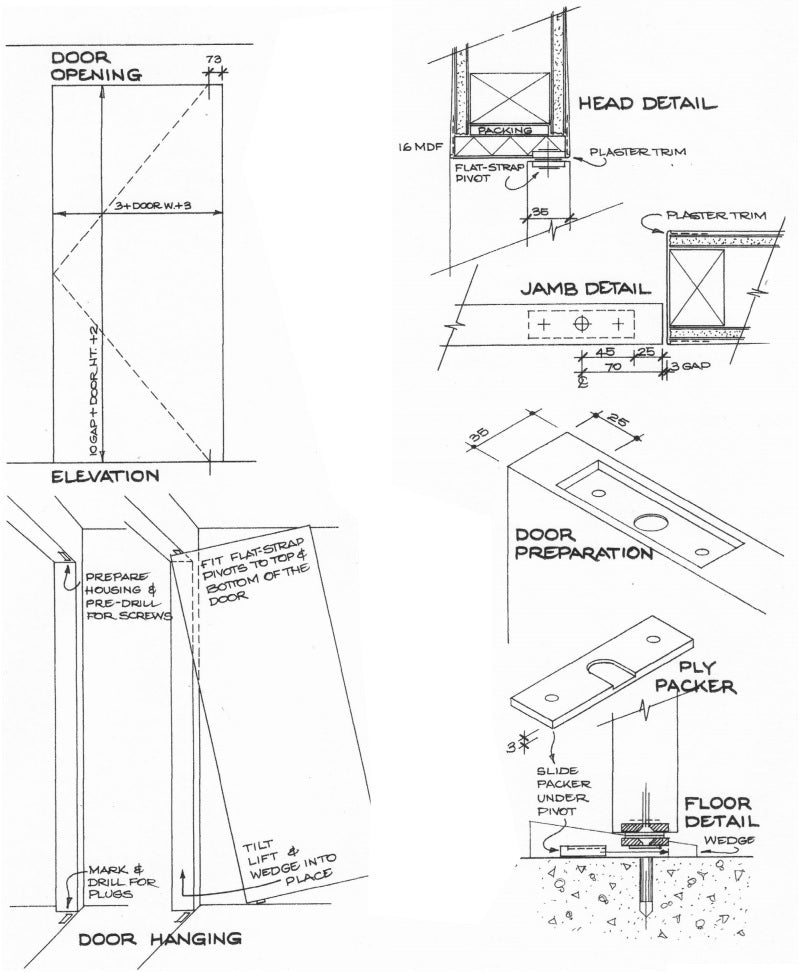

Installation Guide Only:

  • Door thickness: 35mm.
  • Please turn over for greater detail.

Fixing:

  • Fastening screws supplied.
  • Pop rivets are not recommended.



SKU MCCP436
Barcode # 2000000010687
Brand McCallum
