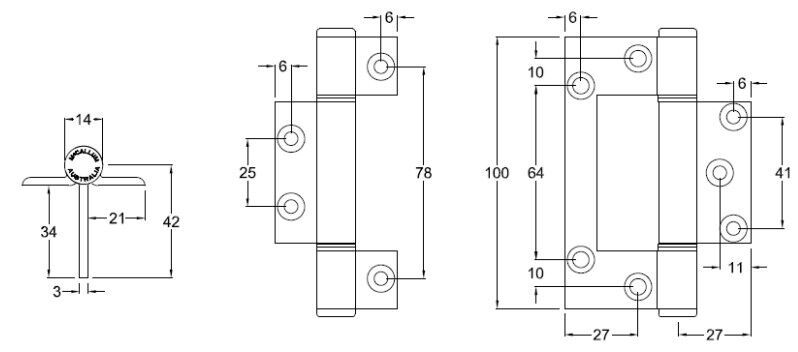

McCallum Aluminium Fast-Fix Hinge
A124BLK

1x Hinge w/ screws

Application:
Suitable for aluminium entrance doors in high usage situations.
Suitable for either centre pocket or front edge glazing systems.
Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required.

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Diameter: 6mm stainless steel with machined chamfer both ends.
• Bushes: Flanged nylon.
• Knuckle: Squareline - Heavy duty.
• Aluminium Endcaps: Pressed-in interference fit.
• Finish: Black powder coat.

Installation Guide Only:
Door Thickness: Minimum 35mm.
When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
as possible. For excessive usage a fourth hinge may be required.
Standard Door: 2040 high x 820 wide x 20 kgs – 3 hinges.
Locator allows for fast fixing.

Fixing
Fastening screws supplied.
Two directional.
Pop rivets are not recommended.
