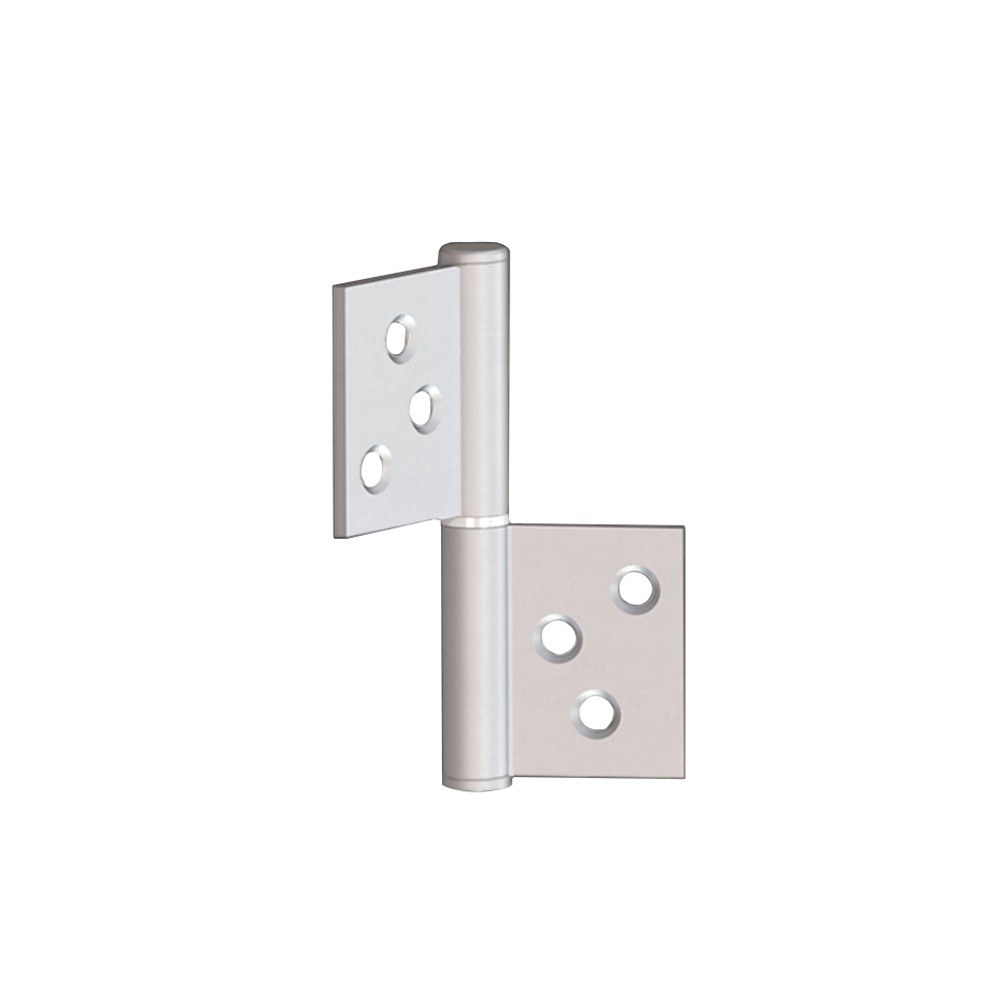

McCallum A103 Door Hinge Aluminium Lift Off Non Handed 109x40mm
A103

Application:

• Lift-off facility for aluminium and timber doors.

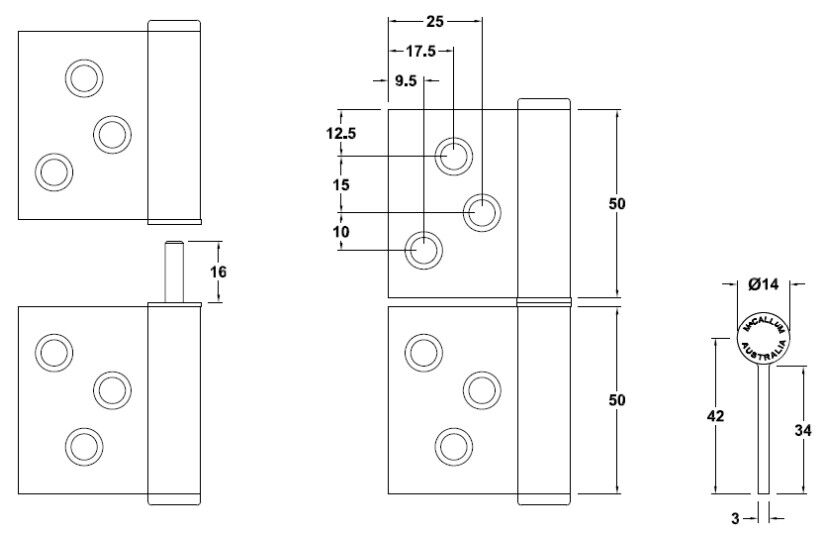

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Diameter: 4.7mm 304 stainless steel with machined chamfers.
• Bushes: Flanged nylon.
• Knuckle: Round.
• Aluminium Endcaps: Pressed-in interference fit.
• Pin Length: 15mm.
• Maximum Weight Capacity: 25 kg
• Finish: Satin Natural Anodised

INSTALLATION GUIDE ONLY

• These hinges are designed to suit left and right hand installations making it easier for specifying.
• The leaves are central on the knuckle with double countersinking.
• Two of the screw holes in the leaf align with metal frame pattern.
• The third hole will require drilling and tapping of the frame.
• 3 x 12mm x M5 metal screws are supplied for the metal frame.
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.

Standard Door: 2040 (h) x 820 (W)

• For lift-off clearance, we recommend a 30mm gap, minimum at the top of the door.

Fixing

• Fastening screws supplied.
• Pop rivets are not recommended.
