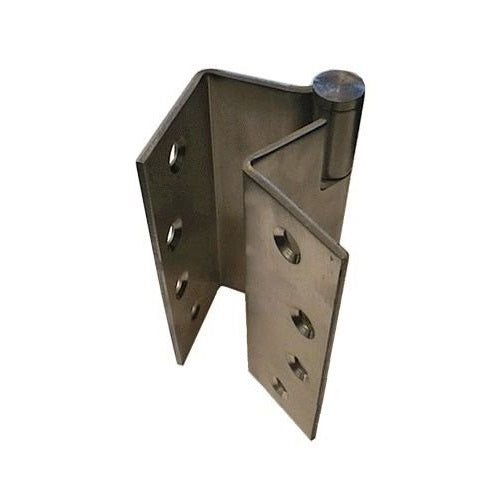

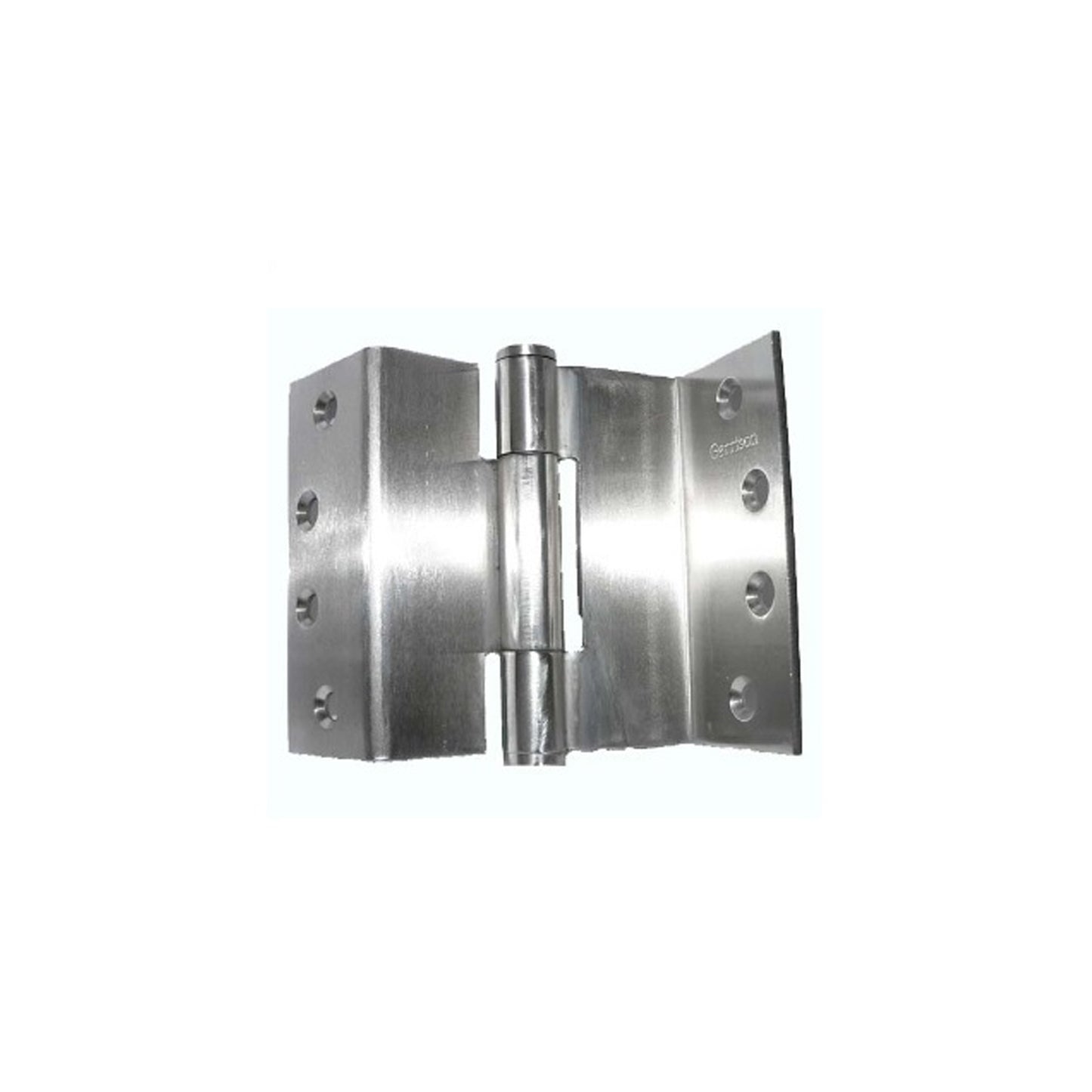

Mccallum Hospital Hinge
S271

Includes:

  • 1 x Heavy Duty Ball Bearing Hospital Hinge

Features:

  • Heavy Duty Ball Bearing Hospital Hinge 100×85 – 42.5×3.5mm
  • The swing clear hinge is designed to swing the door clear of the door opening allowing extra door clearance for wheelchairs and walkers
  • Suitable for Timber doors with Timber or Metal frames
  • Industry Standard hole pattern

Specifications:

  • Hinge Type: Broad Butt Hinge

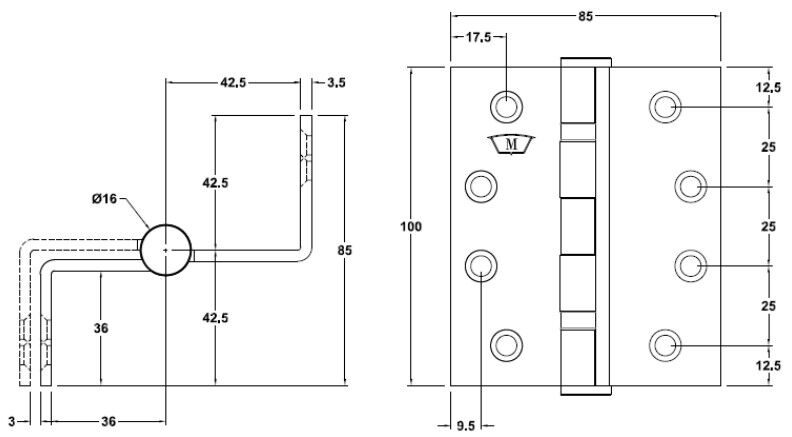

  • Dimension: 100 x 85 -42.5x 3.5mm
  • Knuckle: Round Centre
  • Material: Stainless Steel 304 Grade
  • Hinge Pin: 7.9mm Stainless Steel 304 Grade
  • Bearings: Stainless Steel Off-Cage Ball Bearing
  • End Cap: Stainless Steel 304 Grade Interference fit
  • Handing: Non-Handed
  • Frame Type: Metal – Timber
  • Door Type: Timber
  • Minimum Door Thickness: 35mm
  • Fixing Screws Supplied: Yes
  • Finish: Satin Stainless Steel
SKU MCCS271SSS
Barcode # 2000000014142
Brand McCallum
