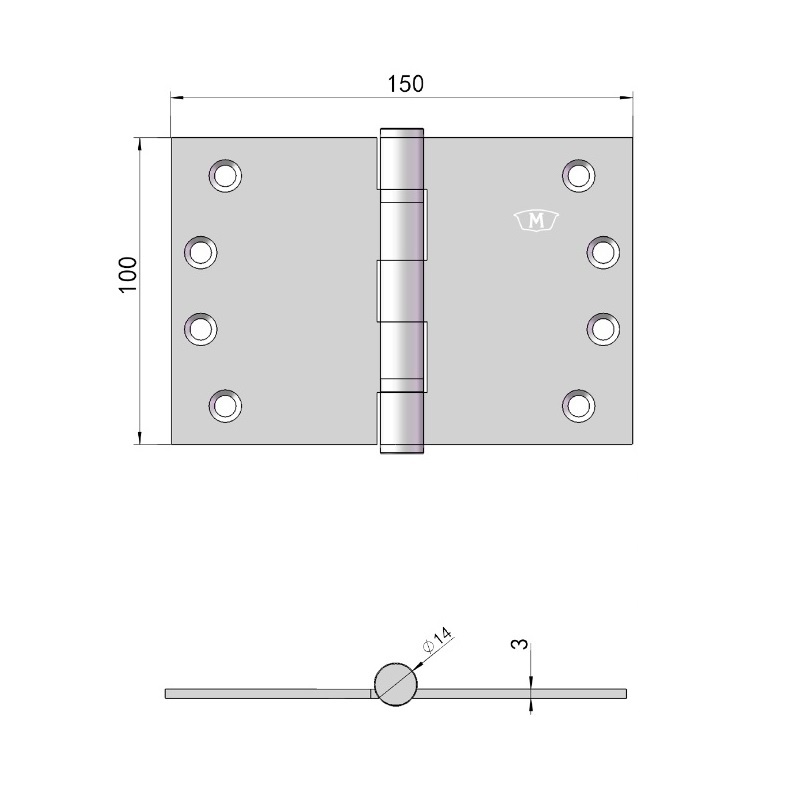

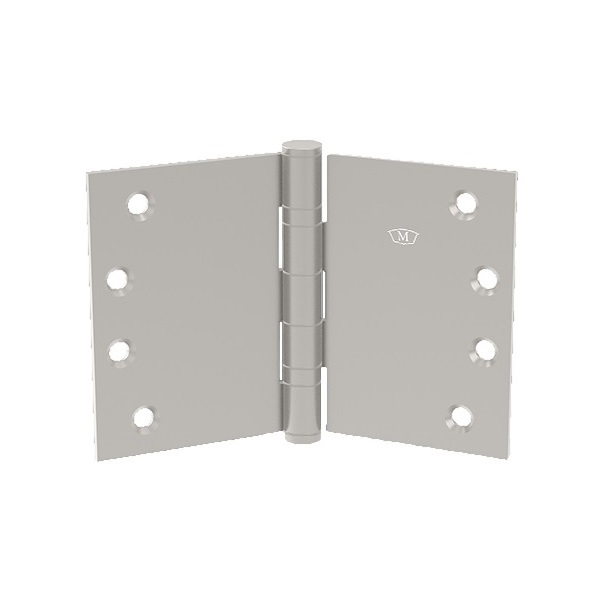

McCallum Stainless Steel Wide Throw Butt Hinge S240

1x Hinge w/ screws

Application:

Suitable for aluminium and timber doors with aluminium, steel and timber frames.

Specifications:

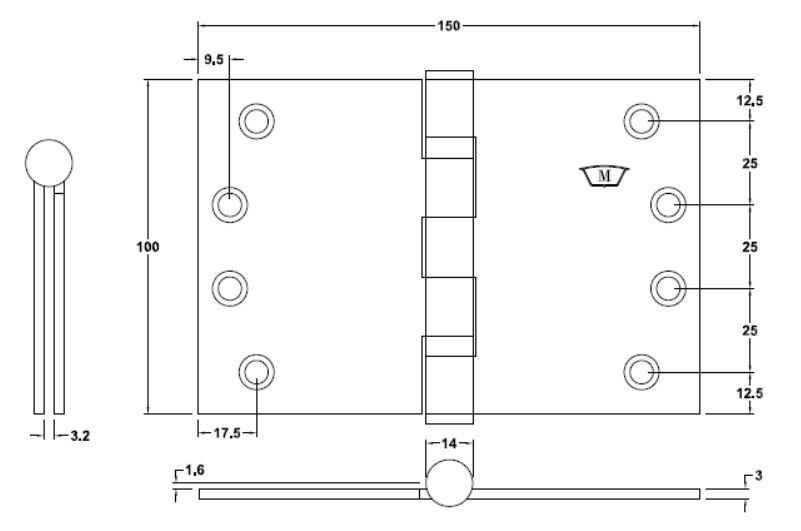

Material: 304 grade stainless steel. Pin Dia: 6.9mm – 304 stainless steel. Knuckle: Round. Endcaps: Pressed-in interference fit. 304 grade stainless steel. Stamped with McCallum crest. Fixed Pin. Bearings: 2 off cage & ball bearings. All 304 grade stainless steel.

Installation Guide Only:

  • Door Thickness: Minimum 35mm. When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible.
  • Standard Door: 2040 (H) x 820 (W) - 3 hinges.

Fixing: Fastening screws supplied. Pop rivets are not recommended.

Finish: Satin stainless steel.

SKU MCCS240SSS
Barcode # 2000000009728
Brand McCallum
