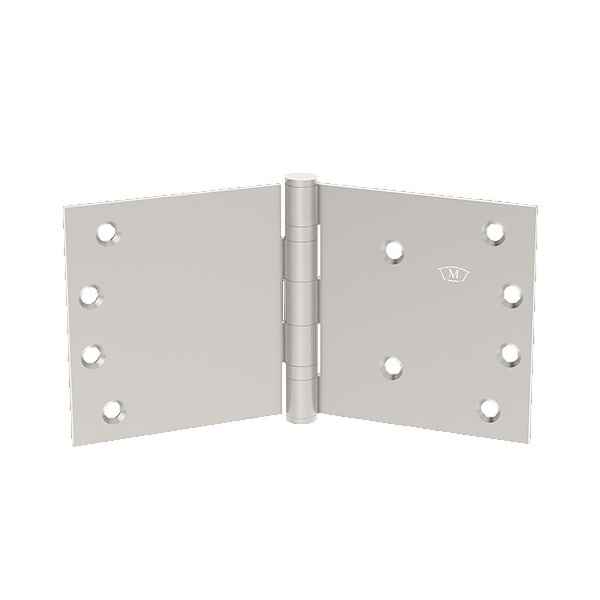

McCallum Stainless Steel Wide Throw Butt Hinge S241 1x Hinge w/ screws

Application:

  • Suitable for aluminium and timber doors with aluminium, steel and timber frames.

Specifications:

  • Material: 304 grade stainless steel
  • Pin Dia: 6.9mm – 304 stainless steel
  • Knuckle: Round
  • Endcaps: Pressed-in interference fit 304 grade stainless steel
  • Stamped with McCallum crest
  • Fixed Pin
  • Bearings: 2 off cage & ball bearings
  • All 304 grade stainless steel

Installation Guide Only:

  • Door Thickness: Minimum 35mm
  • When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible
  • Standard Door: 2040 (H) x 820 (W) - 3 hinges
  • Fixing Fastening screws supplied
  • Two extra fastening holes to allow more support from jamb material
  • Pop rivets are not recommended
  • Finish: Satin stainless steel
SKU MCCS241SSS
Barcode # 2000000009742
Brand McCallum
