Metlam Gravity Hinge Concealed Bolt Through Fix
301BOLT

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

• Gravity-assisted door opening/door closing with lift-off capability

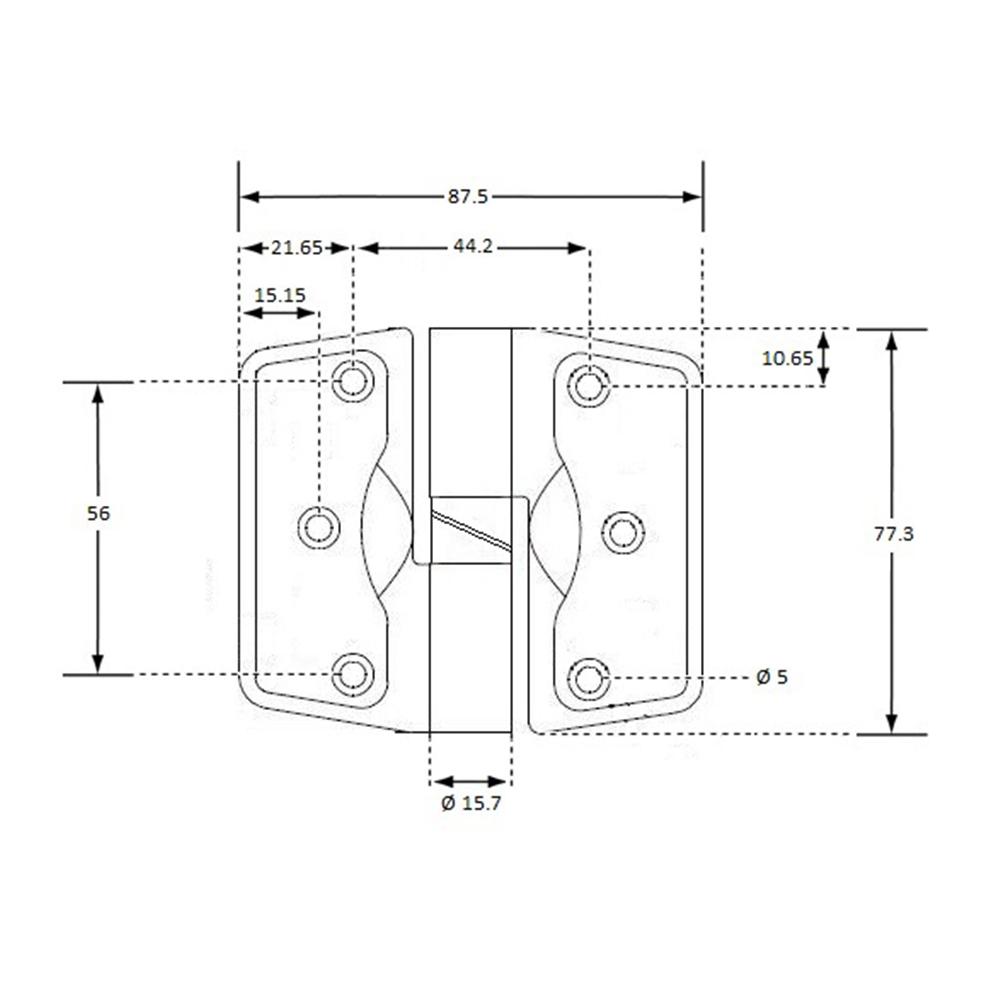

Specifications:

• Material: Diecast Zinc and Stainless Steel Shaft
• Load Rating: 15kg per Hinge
• Height: 77.3mm
• Length: 87.5mm
• Centre to Centre: 56mm
• Fixing: Concealed Bolt Through Fix
• Finish: Satin Chrome Plate
• Available Handing:
  • Left Hand
  • Right Hand
• Available Function:
  • Hold Open
  • Hold Close

Note

• 3 Hinges per door is recommended to prevent door bowing
• For Bolt Through use 106C_FACEPLATE Concealed Fix Face Plate (Available in Satin Chrome Plate, Bright Chrome Plate and Satin Nickel Plate)
