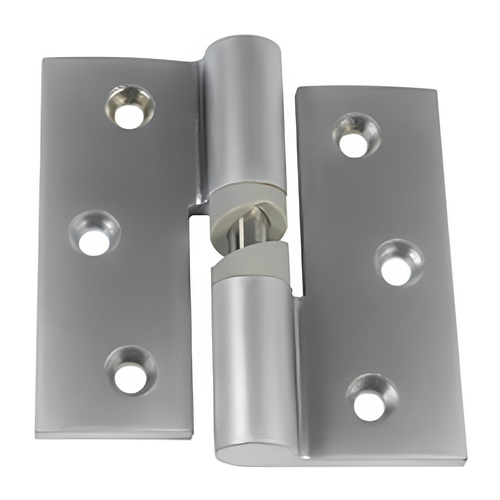

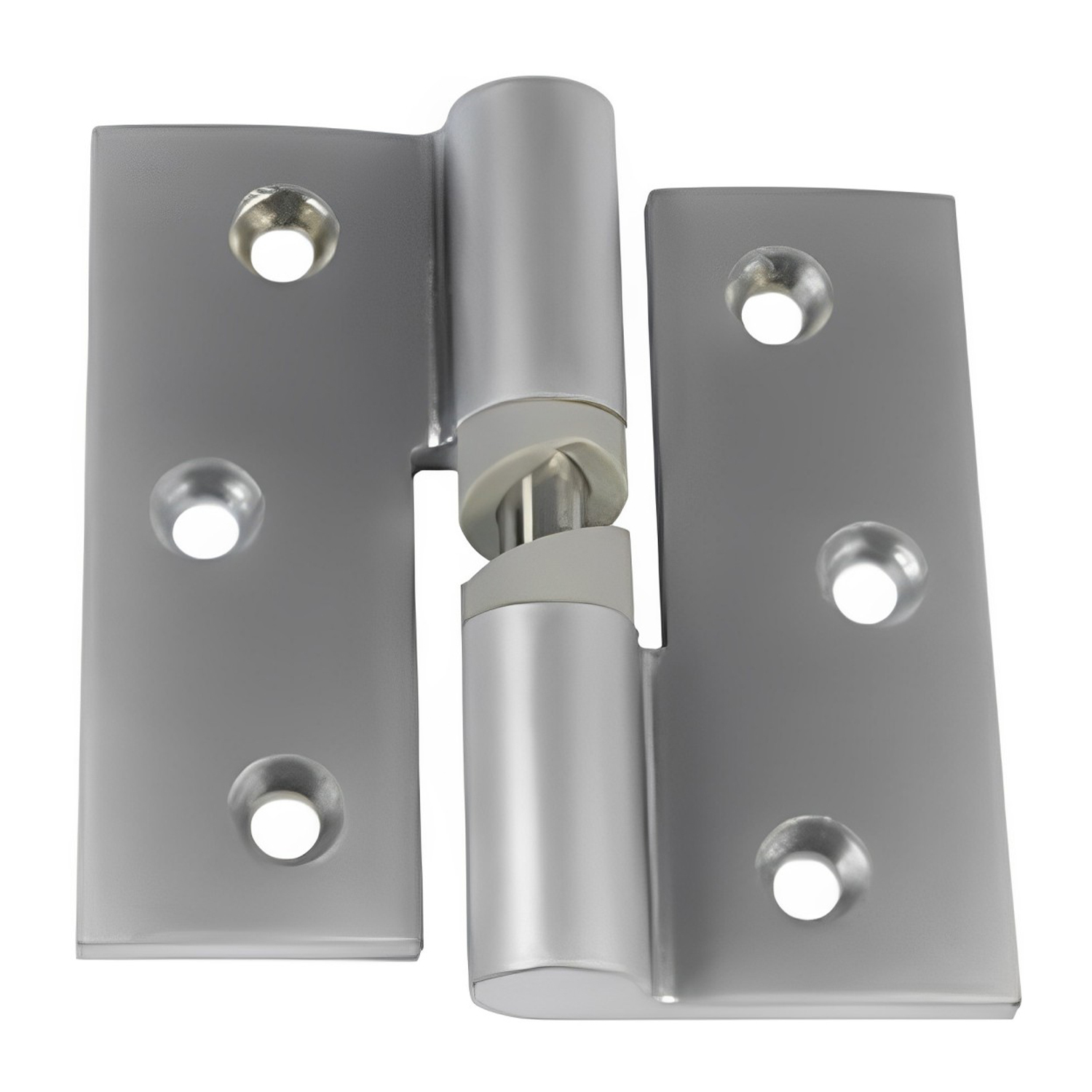

Metlam Gravity Hinge
106_LHHC_SCP

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Minimum Hinge Clearance: 30mm
  • Load Rating: 15kg per Hinge
  • Function: Hold Close

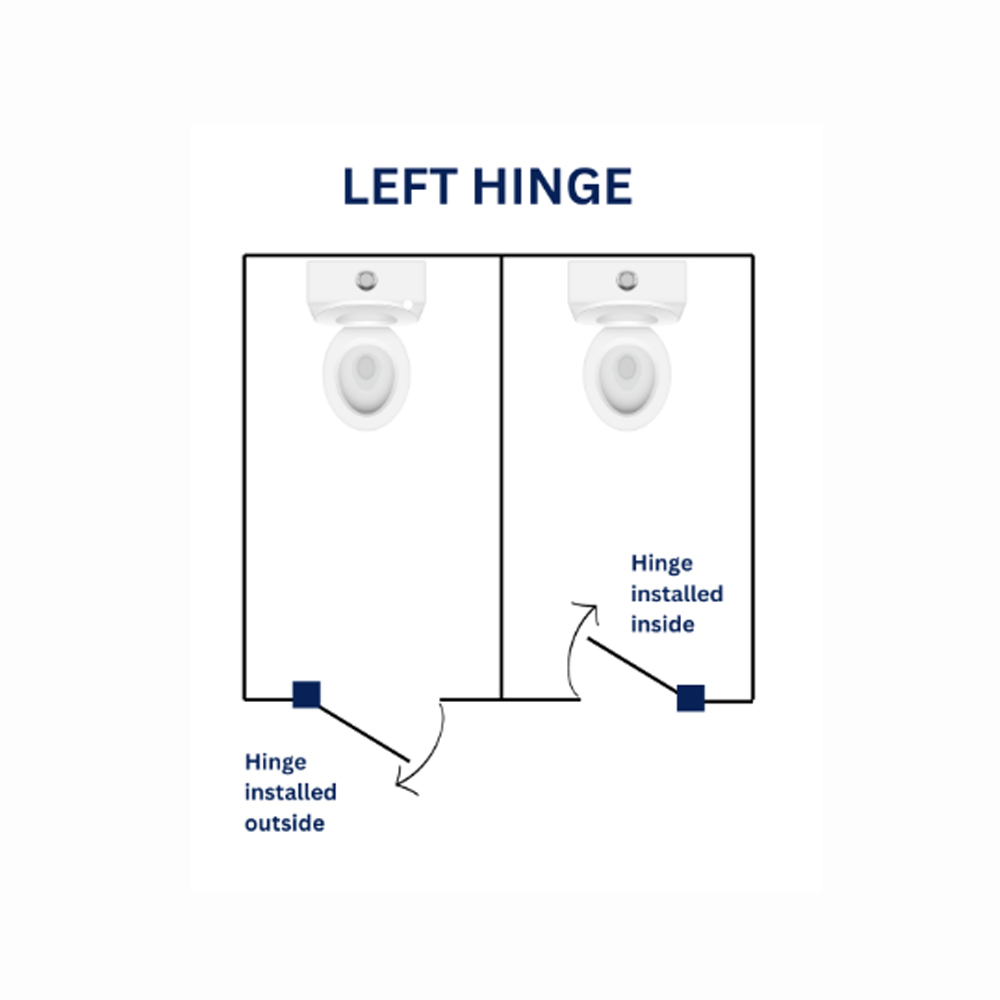

  • Handing: Left Hand

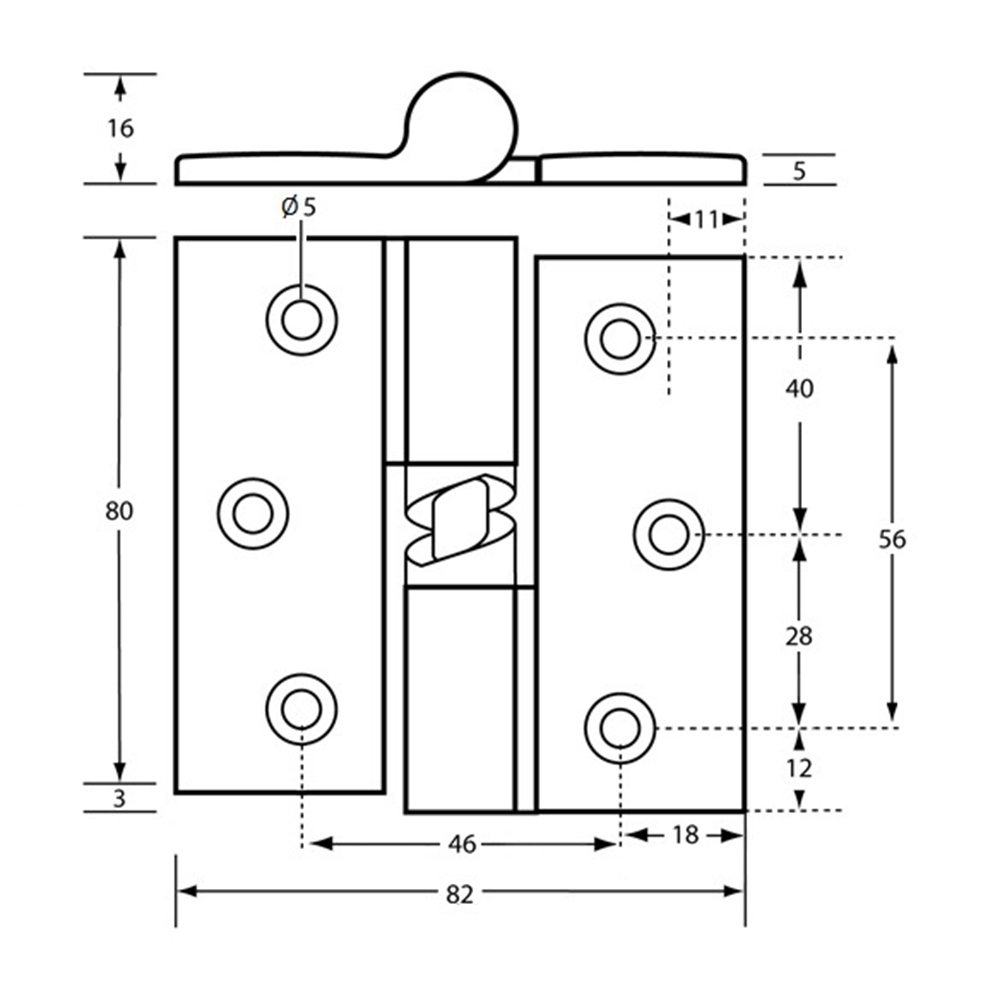

  • Height: 80mm
  • Length: 82mm
  • Thickness: 5mm
  • Centre to Centre: 56mm
  • Fixing: Visible Screw Fix
  • Finish: Satin Chrome
SKU MET106SCLHHCSF
Barcode # 2000000007410
Brand Metlam
