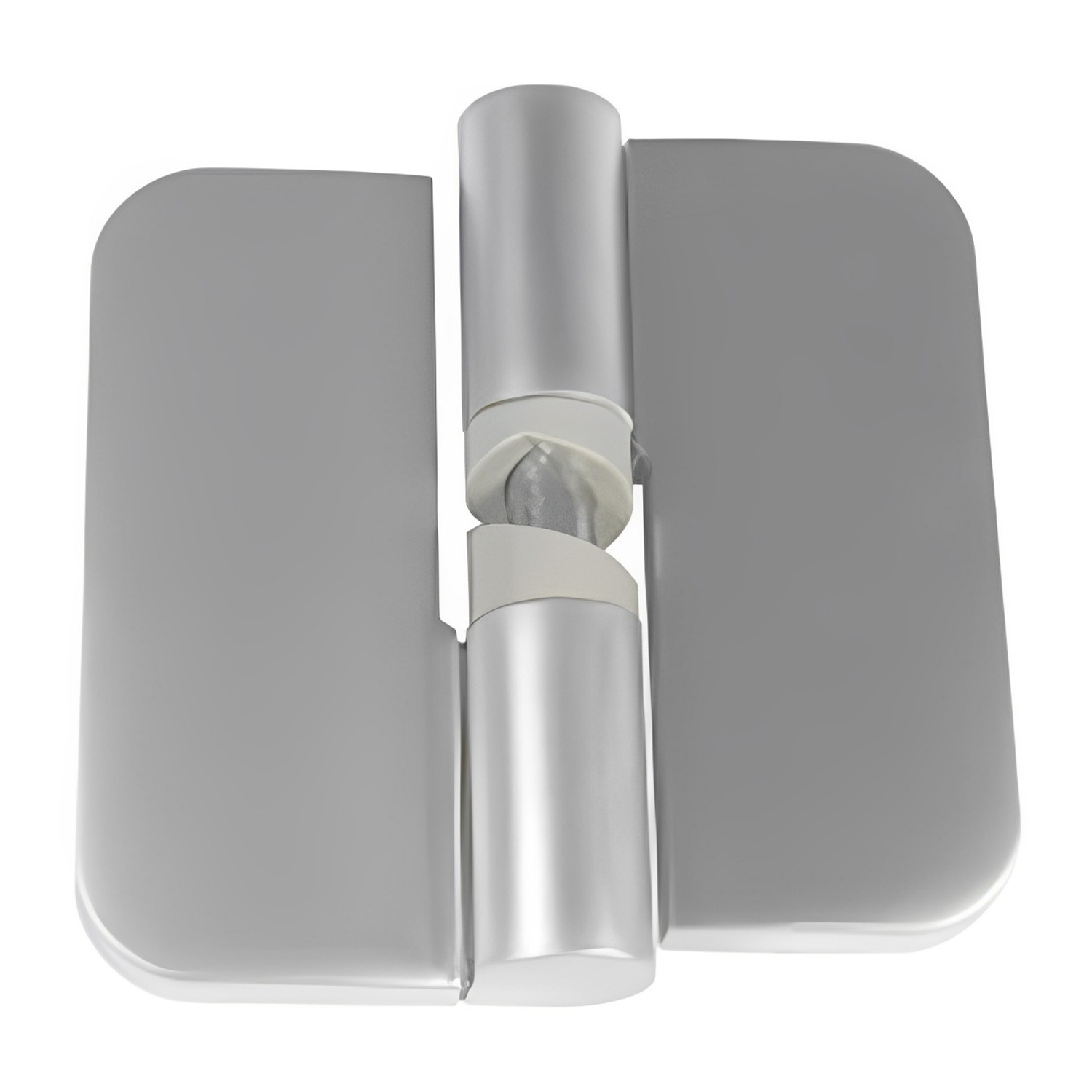

Metlam Gravity Hinge
106C_LHHO_SCP

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

• Gravity-assisted door opening/door closing with lift-off capability

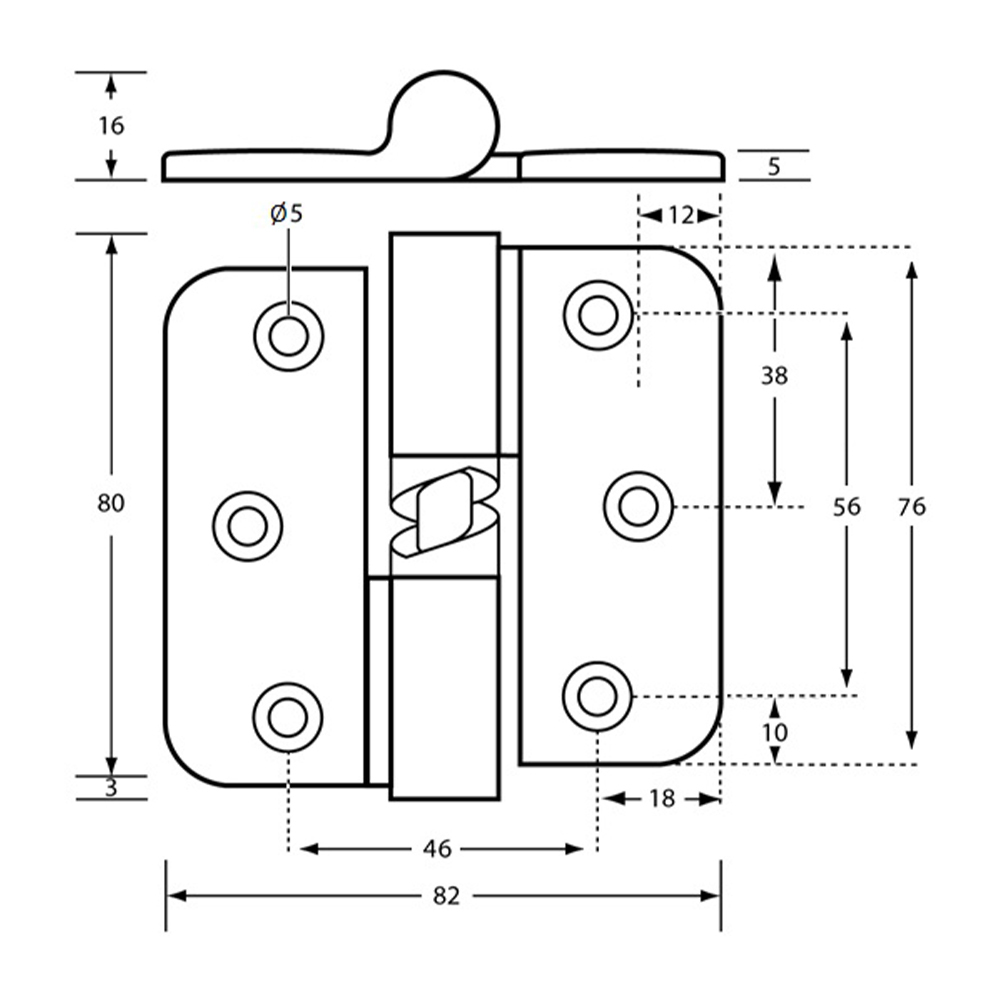

Specifications:

• Material: Diecast Zinc and Stainless Steel Shaft
• Minimum Hinge Clearance: 30mm
• Load Rating: 15kg per Hinge
• Function: Hold Open

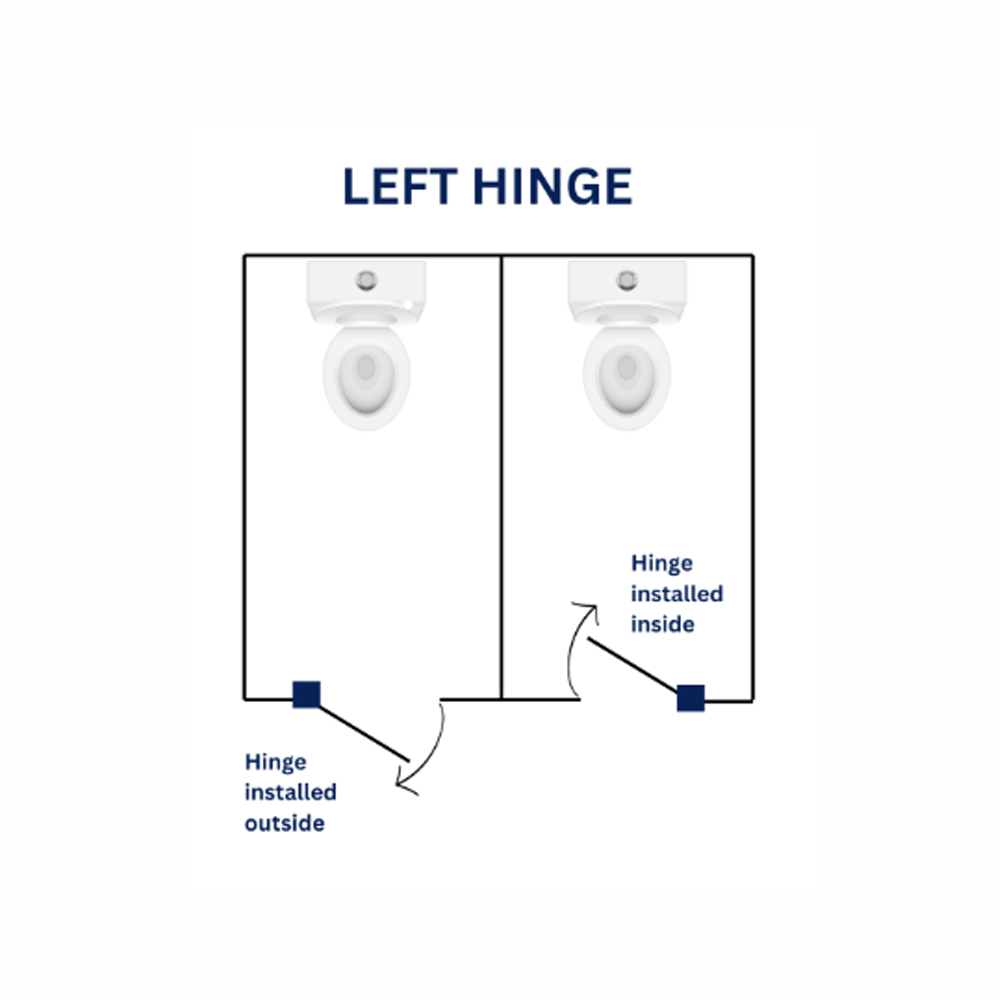

• Handing: Left Hand
• Height: 80mm
• Length: 82mm
• Thickness: 5mm
• Centre to Centre: 56mm
• Fixing: Concealed Screw Fix
• Finish: Satin Chrome
