Metlam Moda Lock and Indicator Set
MODA_LOCK_SCP

Lock and Indicator Set is typically refers to a type of door lock system commonly used in public or commercial settings, such as restrooms, dressing rooms, or meeting rooms. This type of lock provides both security and privacy by indicating whether the room is occupied or vacant.

Lock and Indicator Set Function - allowing the door to be securely closed and locked from the inside. It usually has a latch or bolt mechanism that extends into the door frame to prevent the door from being opened without a key or other unlocking mechanism.

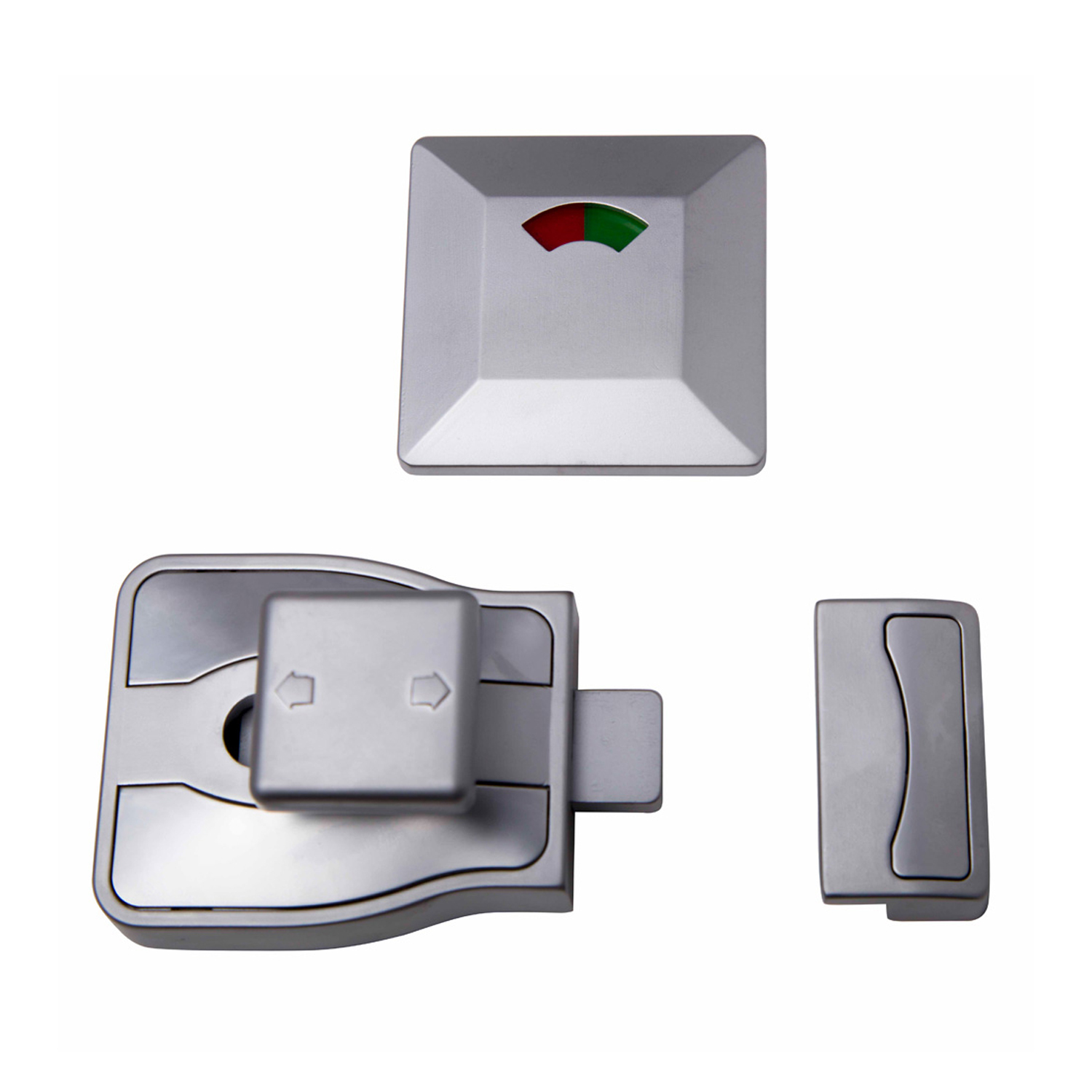

Includes:

  • 1 x Indicator
  • 1 x Easy-Glide Slide Lock
  • 1 x Staple

Features:

  • Large eyelet allows for a clearer view of the vacant or engaged signal
  • Solid one-piece diecast handle
  • A Unique Easy-Glide Slide Lock forrestricted hand mobility, limb loss, and hygiene protection Raised directional arrows to assist those with vision impairment Functional modern design
  • Our Design Registered 'no backing plate' set up saves time on installation with an on-door easy adjustment to ensure a smooth fit
  • Supplied with universal fixing pack to suit board thickness variation between 12mm to 33mm

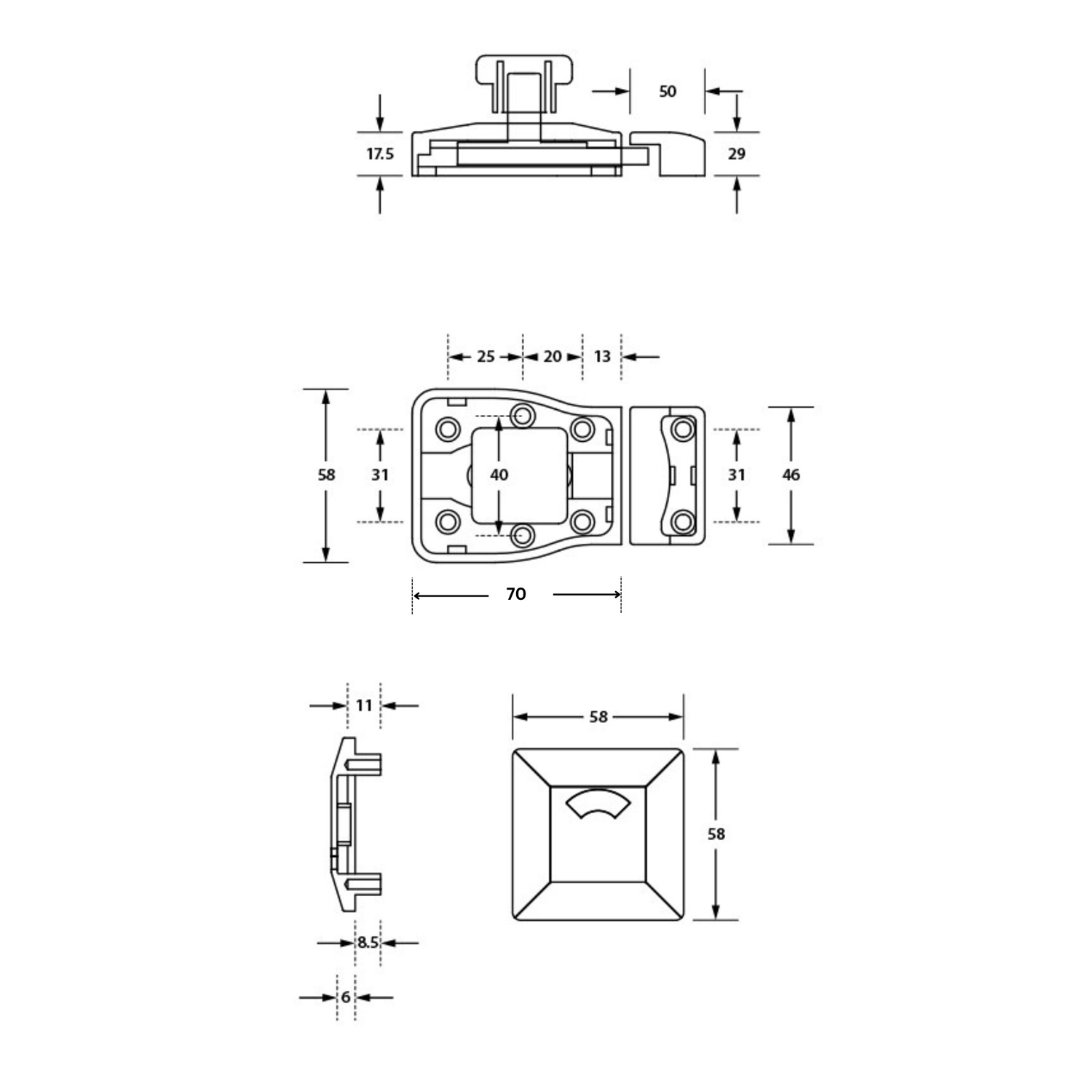

Specifications:

  • Material: Diecast Zinc, Alloy ZP3 ABS Snap-On Cover
  • Slide Lock Center to Center: 31mm
  • Slide Lock Length: 70mm
  • Slide Lock Overall Height: 58mm
  • Staple Height: 58mm
  • Staple Width: 58mm
  • Staple Projection: 11mm
  • Mounting: Concealed Screw Fix
  • Finish: Satin Chrome Plate

Ratings/Compliant:

  • This product is deemed to satisfy AS1428.1 Australian disability standards for use in ambulant and accessible toilet cubicles when installed in accordance with AS1428.1 guidelines.


SKU METMODALOCKSCP
Brand Metlam
