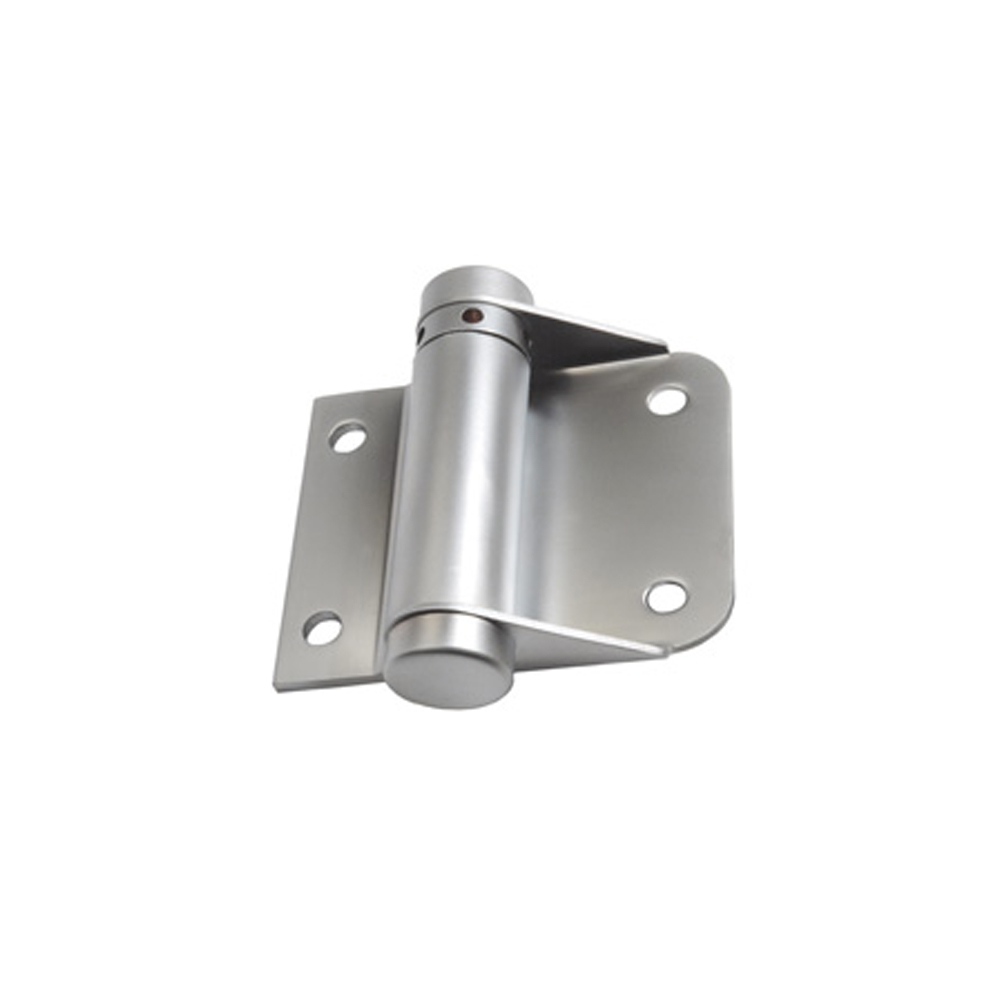

Metlam Spring Hinge
109_HO_SCP_BF

Spring Hinge used in both residential and commercial applications, spring hinge doors also work as double-acting swing hinges. These are called saloon doors or swing door hinges, which are popular in hospitals, restaurants, schools, and many other institutions.

Spring Hinges Function - are self-closing hinges. A spring mechanism in the barrel allows the hinges to automatically close a door which enables these hinges to serve as an alternative to overhead mounted door closer. The closing power of the hinges can be adjusted whilst still on the door or gate.

Features:

  • Spring-assisted
  • Visible Fix

Specifications:

  • Material: 304 Stainless Steel
  • Mounting: Bolt Through
  • Function: Hold Open
  • Load Rating: 20 - 25Kg per hinge
  • Finish: Satin Chrome Plate

Note:

  • For optimum performance - 2 hinges per door up to 40Kgs For doors over 40Kg allow for 20Kg per hinge
  • 3 Hinges per dooris recommended to prevent door bowing
SKU MET109HOBFSCP
Barcode # 2000000032054
Brand Metlam
