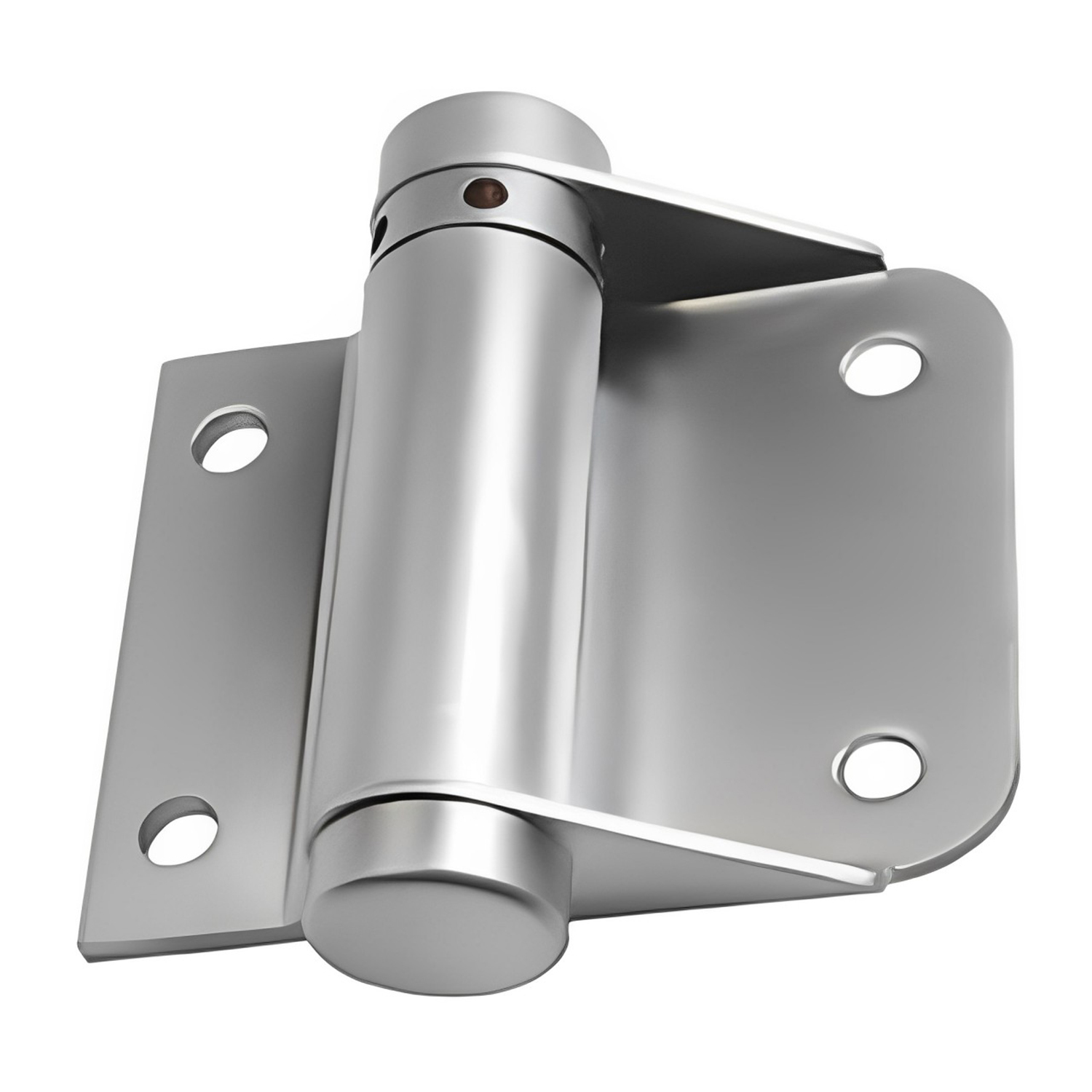

Metlam Spring Hinge

Spring Hinge is a type of hinge fitted with a spring. When installed, it automatically closes the door from an open position

Spring Hinge Function - operates by using a built-in spring mechanism. When the door is opened, the spring is compressed. As you release the door, the spring’s tension causes it to close automatically. This design ensures that the door remains closed without the need for manual effort.

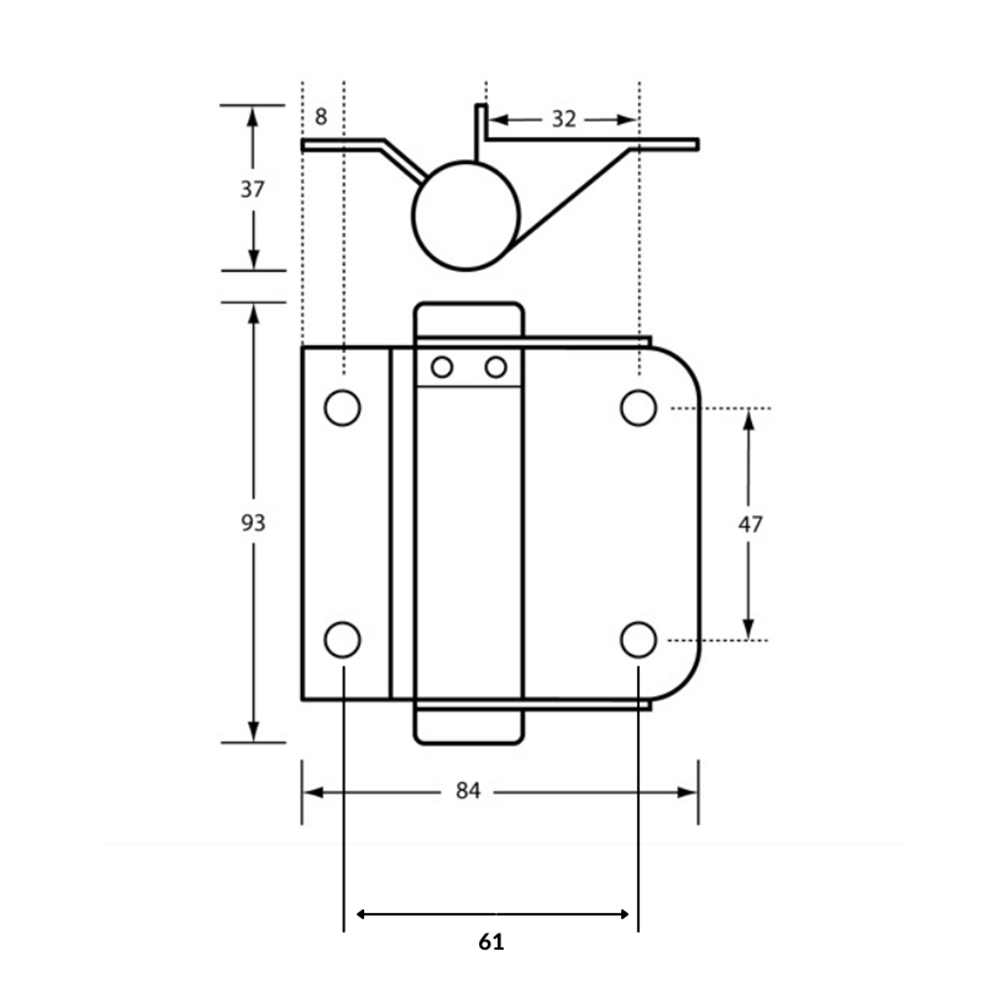

Specifications:

• Material: Brass
• Max Load Rating: 25kg
• Height: 93mm
• Width: 84mm
• Centre to Centre: 61mm
• Projection: 37mm
• Fixing:
  • No Fixings
  • Visible Bolt Through Fix
  • Visible Screw Fix
• Finish: Satin Chrome Plate

For Optimum Performance:

• 2 hinges per door up to 40Kgs
• For doors over 40Kg allow for 20Kg per hinge

Note:

• 3 Hinges per door is recommended to prevent door bowing
• All Hinges Are Available With Or Without Fixings. Please Nominate Your Requirements At The Time Of Ordering.
