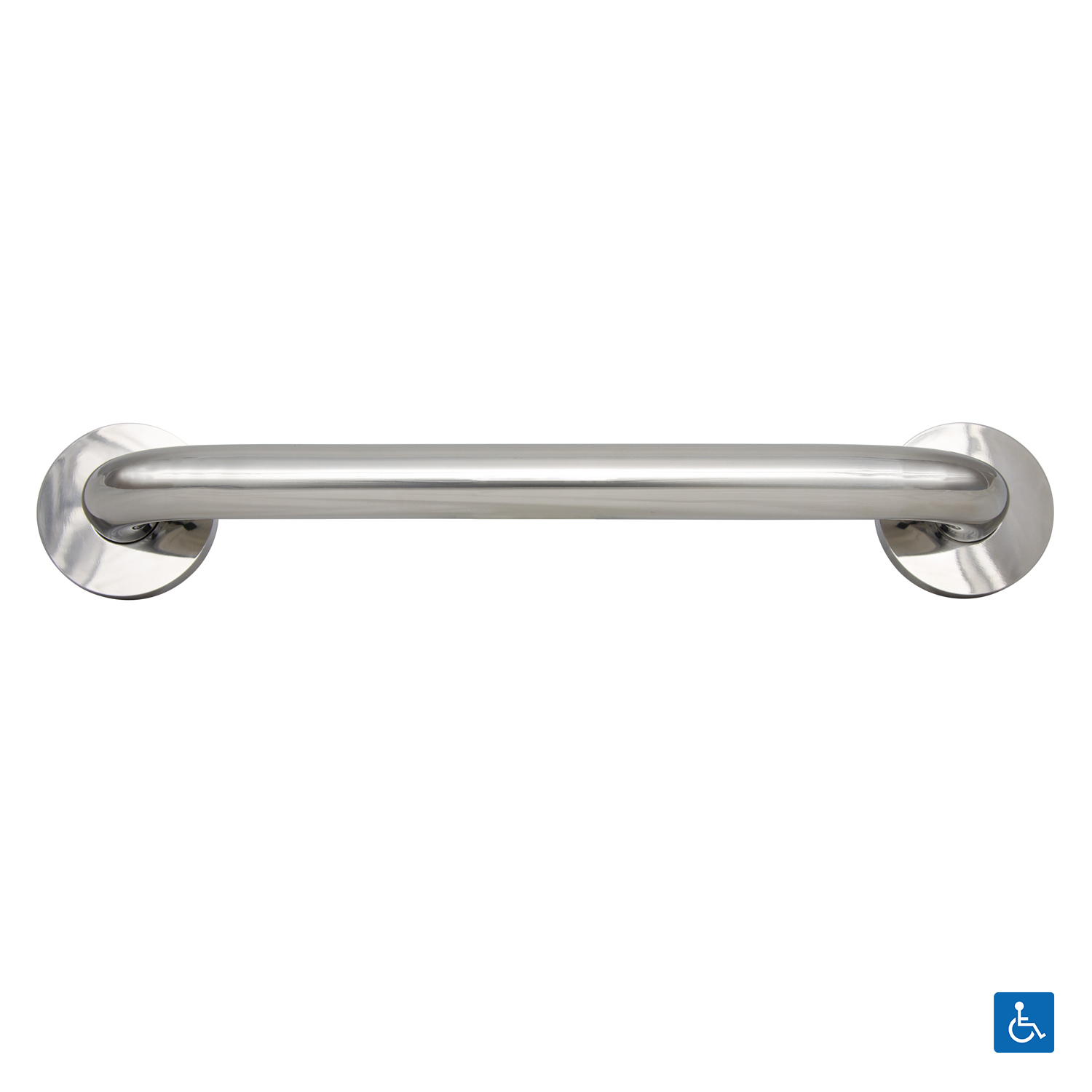

Metlam Straight Grab Rail Concealed Fix

Grab Rail is commonly used in showers and bathtubs to assist with transfers into and out of the enclosure, to maintain balance while standing or moving, and to generally prevent slips and falls.

Grab Rail Function - often referred to as handrails, safety rails, or shower bars, are typically attached on walls, ceilings, or floors to assist weak, crippled, or elderly people enter and exit rooms and facilities safely.

Features:

• Concealed Fix screw-on Flange Cover

Specifications:

• Material: 304 Stainless Steel
• Grab Rail Diameter: 25mm
• Curve Angle: 90 Degrees
• Base Diameter (Flange On): 63.5mm
• Base Diameter (Flange Off): 62.5mm
• Finish: Polished Stainless Steel
• Mounting: Concealed Fix
• Available Size (Centre to Centre):
  • 450mm
  • 1200mm

Rating/Compliance:

• It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon is suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.
• Compliant with the Force Requirements within AS1428.1: 2021, Section 14.
