Metlam Xcel Slide Lock and Indicator Set
XCEL_SLIDELOCK_ANMBWSF

Lock and Indicator Set is typically refers to a type of door lock system commonly used in public or commercial settings, such as restrooms, dressing rooms, or meeting rooms. This type of lock provides both security and privacy by indicating whether the room is occupied or vacant.

Lock and Indicator Set Function - allowing the door to be securely closed and locked from the inside. It usually has a latch or bolt mechanism that extends into the door frame to prevent the door from being opened without a key or other unlocking mechanism.

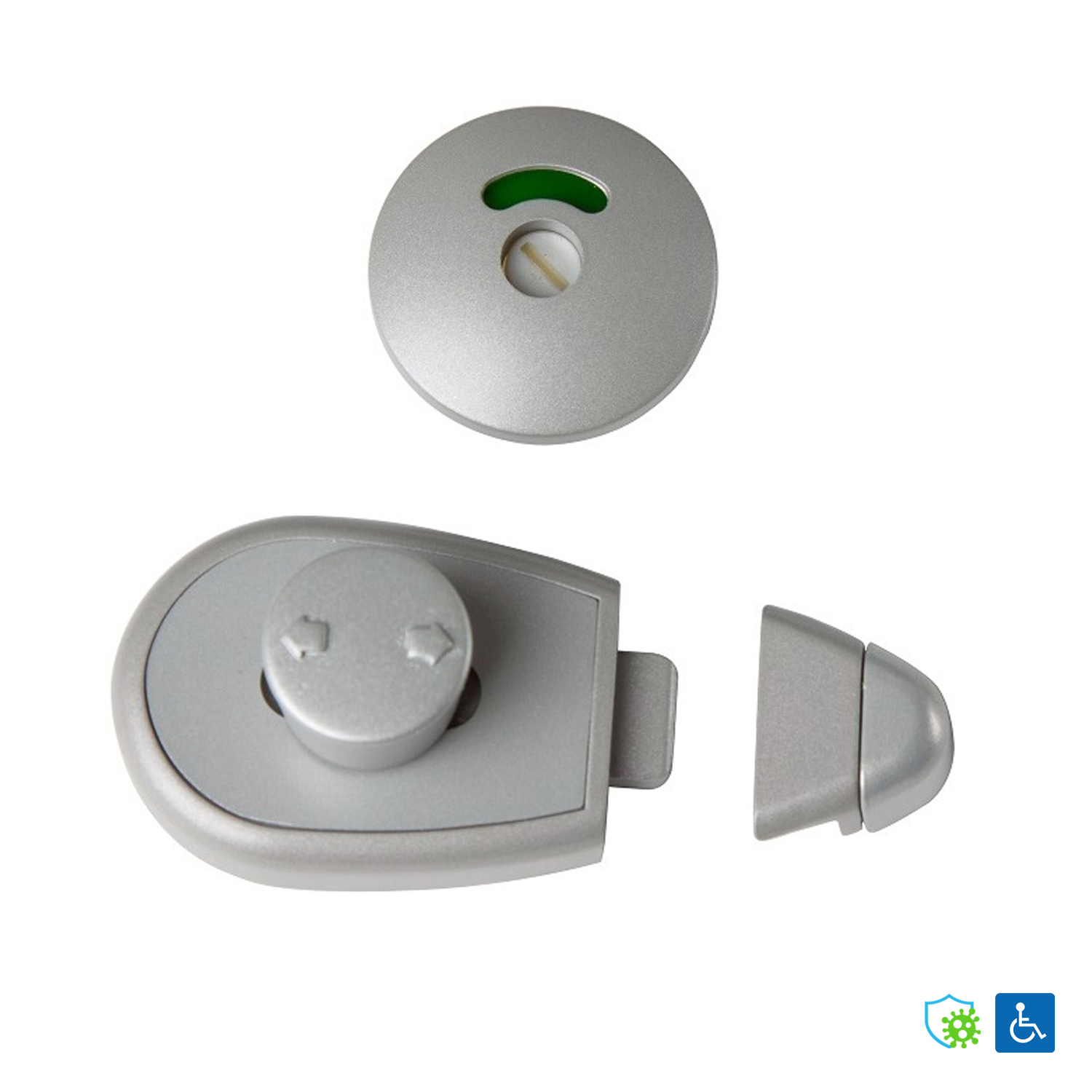

Includes:

• 1 x Indicator
• 1 x Easy-glide slide lock
• 1 x Staple

Features:

• Anti-pull-through fixing plate
• Unique Easy-Glide Slide Lock for restricted hand mobility, limb loss and hygiene protection
• Raised directional arrows for vision-impaired
• The universal system provides design uniformity
• Consistent installation saves time
• Staple Functional modern design
• Supplied with universal fixing pack to suit board thickness variation between 12mm to 36mm

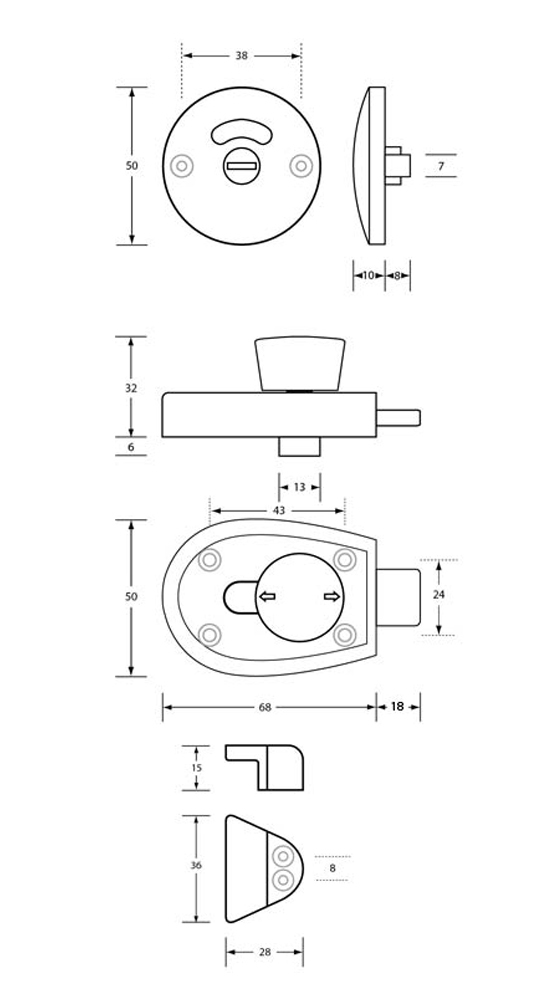

Specifications:

• Mounting: Concealed Screw Fix
• Indicator Diameter: 50mm
• Indicator Center to Center: 38mm
• Indicator Depth: 8mm
• Indicator Projection: 10mm
• Slide Lock Height: 50mm
• Slide Lock Center to Center: 43mm
• Slide Lock Projection: 32mm
• Staple Height: 36mm
• Staple Width: 28mm
• Finish: Antimicrobial

Compliant:

• This product is compliant for ambulant and accessible specifications when installed in accordance with AS1428.1 guidelines
