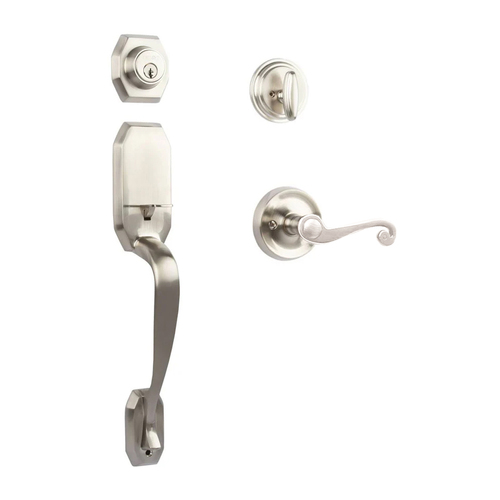

N2lok Garrone Door Handle Interconnect Spiral Lever Entrance Set
765 GA IC/SP SN BP

Entrance Door Handle is defined as a lock that can be unlocked by a key from the outside when the outer lever is locked by a turn button on the inside lever. The inside lever is always unlocked.

Entrance Door Handle Function - Outside key unlocks the outside, the inside lever is free at all times, push button locks the outside.

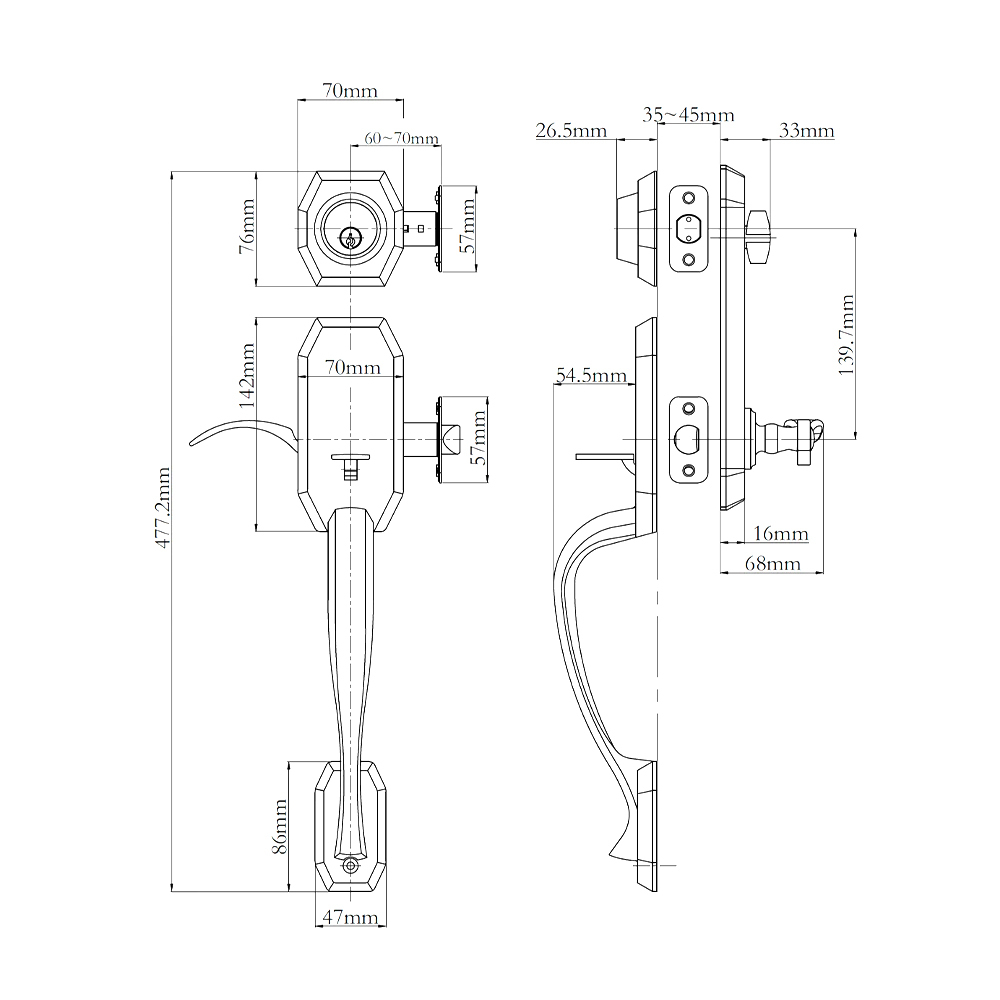

Specifications:

• Cylinder Height: 76mm
• Cylinder Width: 70mm
• Cylinder External Projection: 26.5mm
• Cylinder Internal Projection: 33mm
• Overall Height: 477.2mm
• Handle Width: 70mm
• Handle Projection: 54.5mm
• Door Thickness: 35mm - 45mm
• Backset: 60mm - 70mm Adjustable
• Lever Projection: 68mm
• Finish: Satin Nickel
