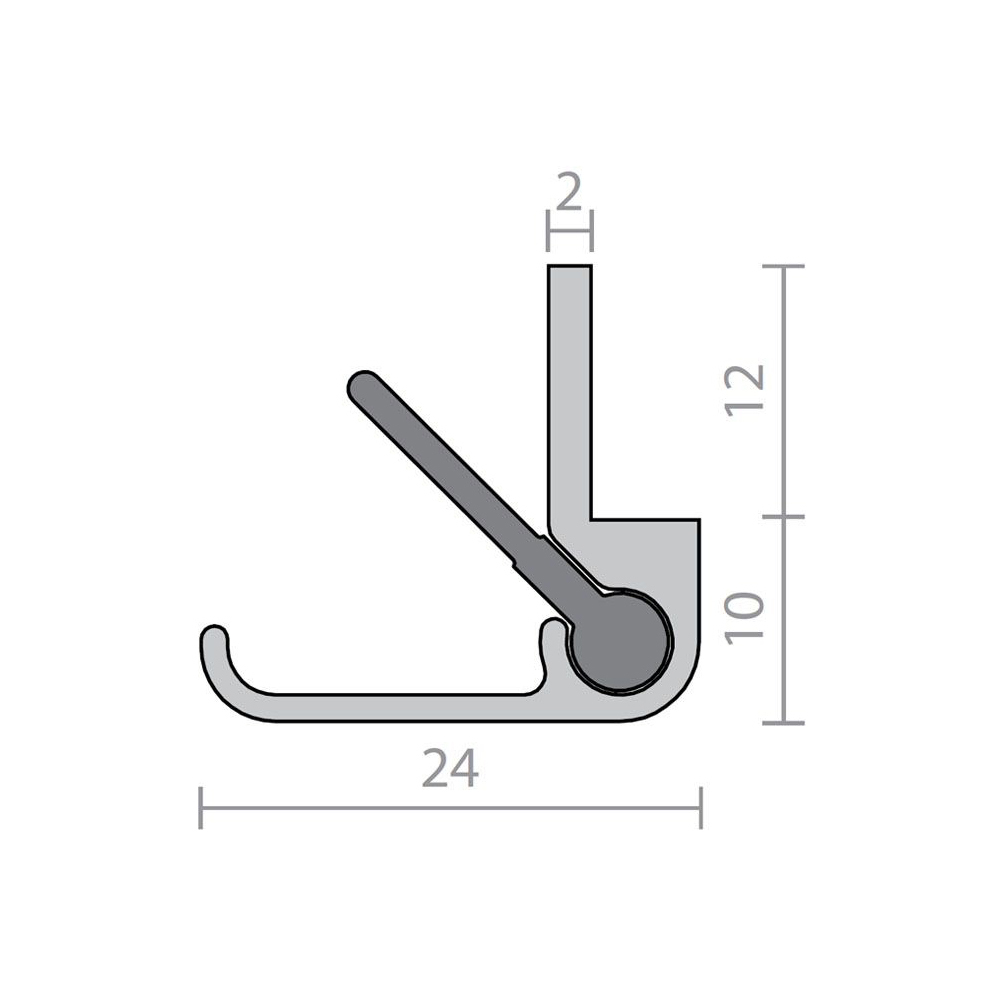

Raven Acoustic Astragal Meeting Stile Seal

RP16SI

An acoustic, smoke astragal. Its proven design is effective in sealing the meeting stiles of plain or rebated double doors. Its aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop. If necessary, its aluminium fixing leg can be checked out to allow for locks and latches.

Features:

• Used where one door leaf is active.
• Smoke door magnetic hold open applications such as hospital corridors, sequence select door closers are required
• Fixing holes are pre-drilled

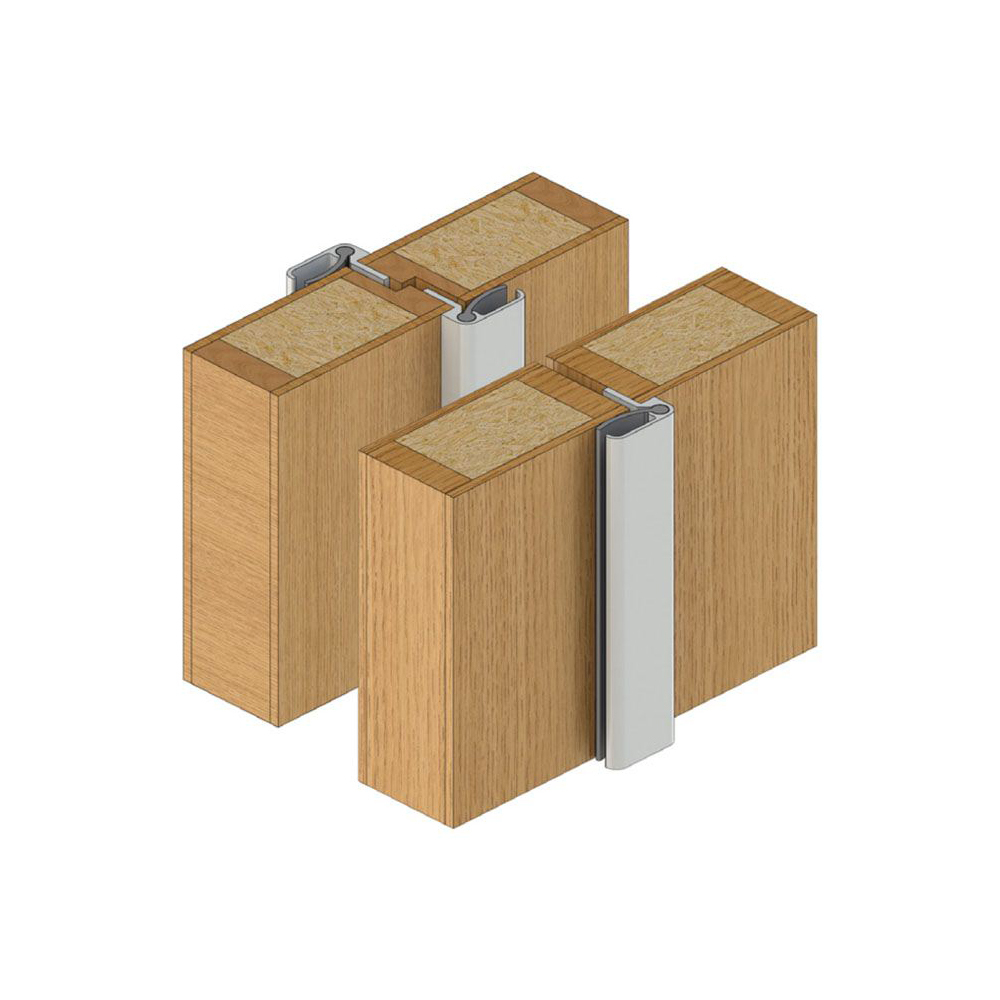

• Can be rebated or surface mounted

Specification:

• Min/Max Gap: 2.5mm to 8mm
• Finish: Clear Anodised
• Fixing: Screw Fix
• Seal: Silicon Rubber
• Screws: Zinc plated, cross recess head CSK S.T. screws supplied
• Sizes: 2750mm

Approval/s:

• CF5710
• ANSI/BHMA A156.22
• Acoustic AUS/NZ: NCC Spec. F5.5.
• UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
• Fire Gasket flammability index 1 when tested to AS1530.2.
• Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
• Energy NCC Pt. 3.12.3.3 & J3.4.
