Raven RP10Si Door Frame Perimeter Seal
A10SIBKLS

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

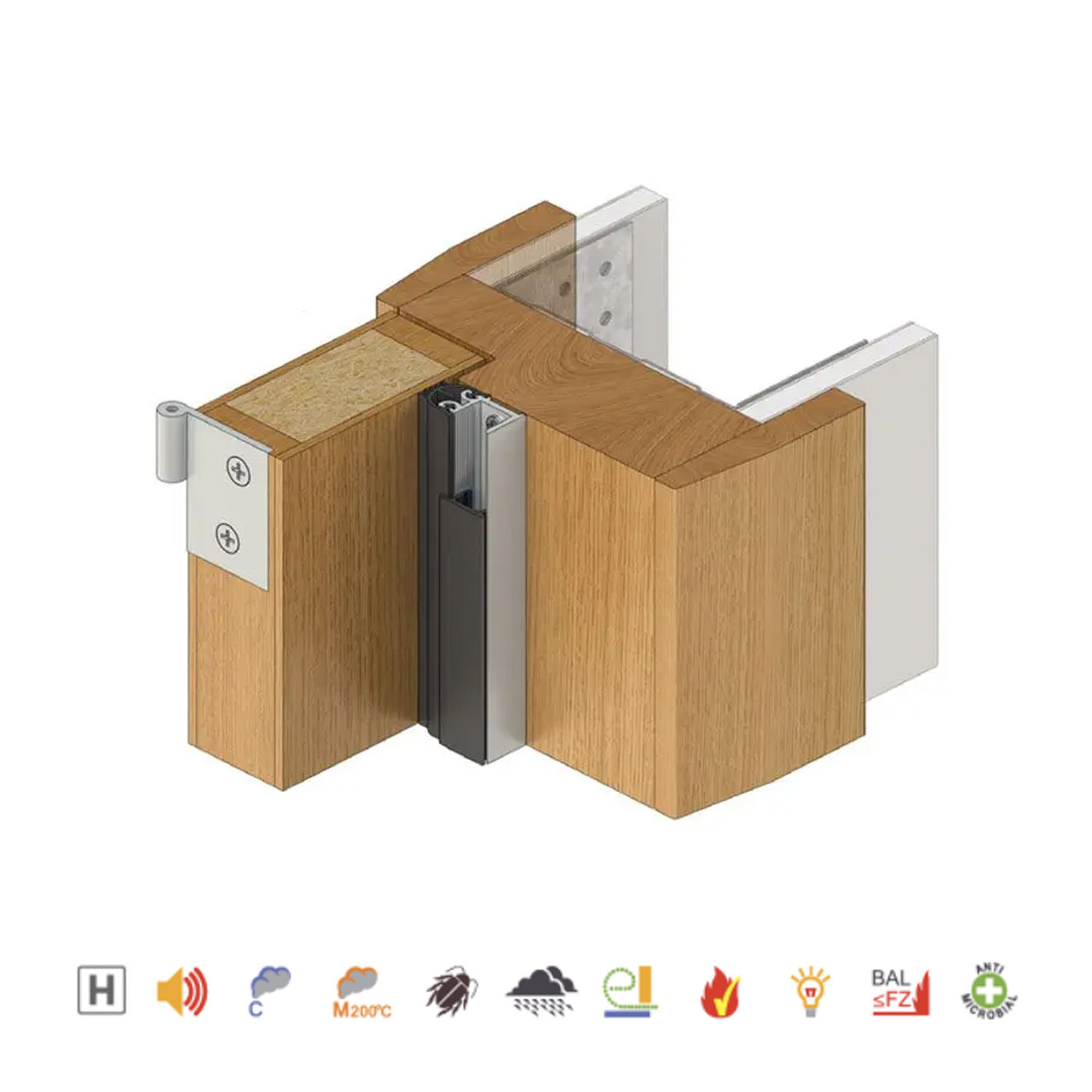

• Effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames

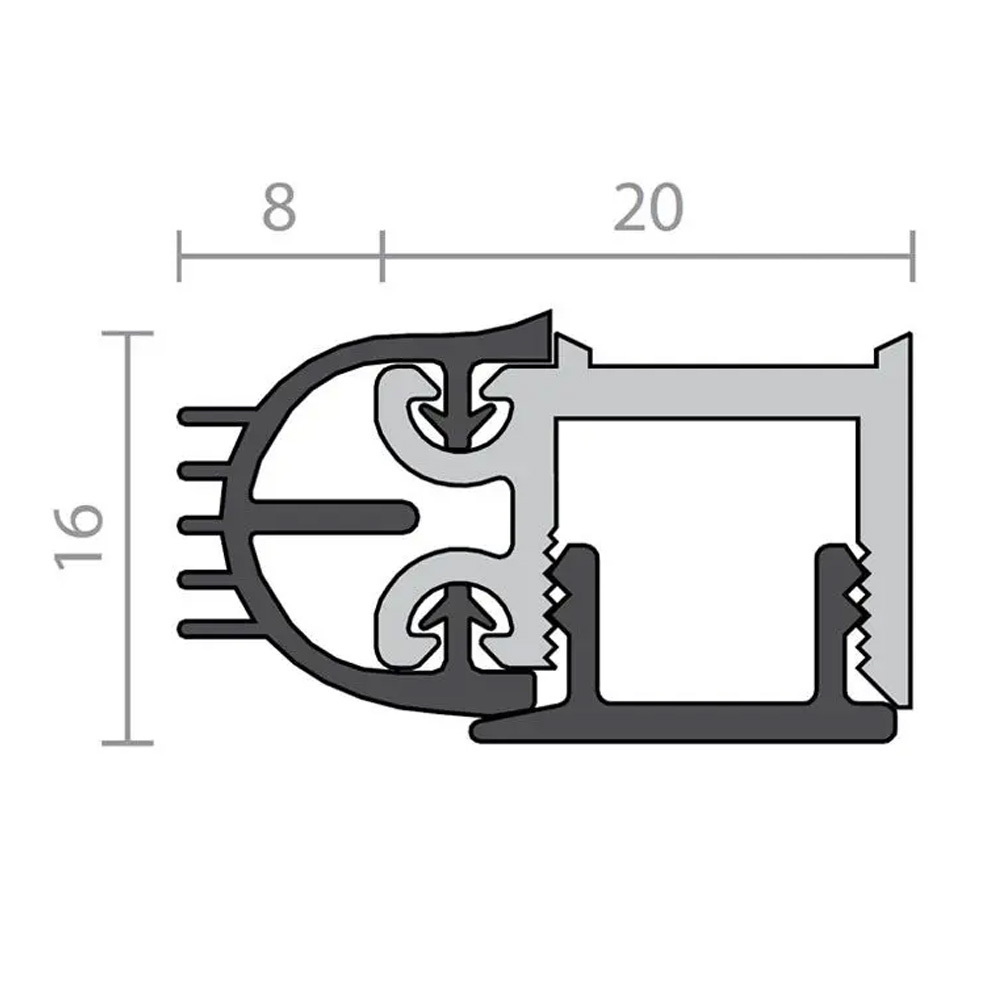

• Multi-fin design for improved noise and energy sealing
• The minimum deflection design creates maximum sealing efficiency
• RP10Si can be mitred or butt jointed for a neat finish
• Adjustable by large concealed fixing slots for a precision fit, RP10Si has a tamper resistant, rigid PVC cover strip (SE)
• Can be used on all four sides of the door to form a bulk head seal
• If fixing to rebated frames of single doors, specify a long backset door latch.

Specifications:

• Location: Head and jambs of single and double butt hinged doors.
• Min/Max Gap: 0mm to 10mm
• Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied
• Seal: RP310Si. Black or light grey silicon rubber (SE)
• Size: Long Single Door Set: 2x 2750mm & 1x 1000mm
• Finish: Black

Approvals:

• UL R37913.
• Certifire CF5710
• ANSI/BHMA A156.22.
• Acoustic AUS/NZ: NCC Spec. F5.5.
• UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
• Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
• UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
• FRL & FRR-/240/60 and FD240.Fire Approved
• Gasket flammability index 1 when tested to AS1530.2.
• Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
• Energy NCC Pt. 3.12.3.3 & J3.4.
