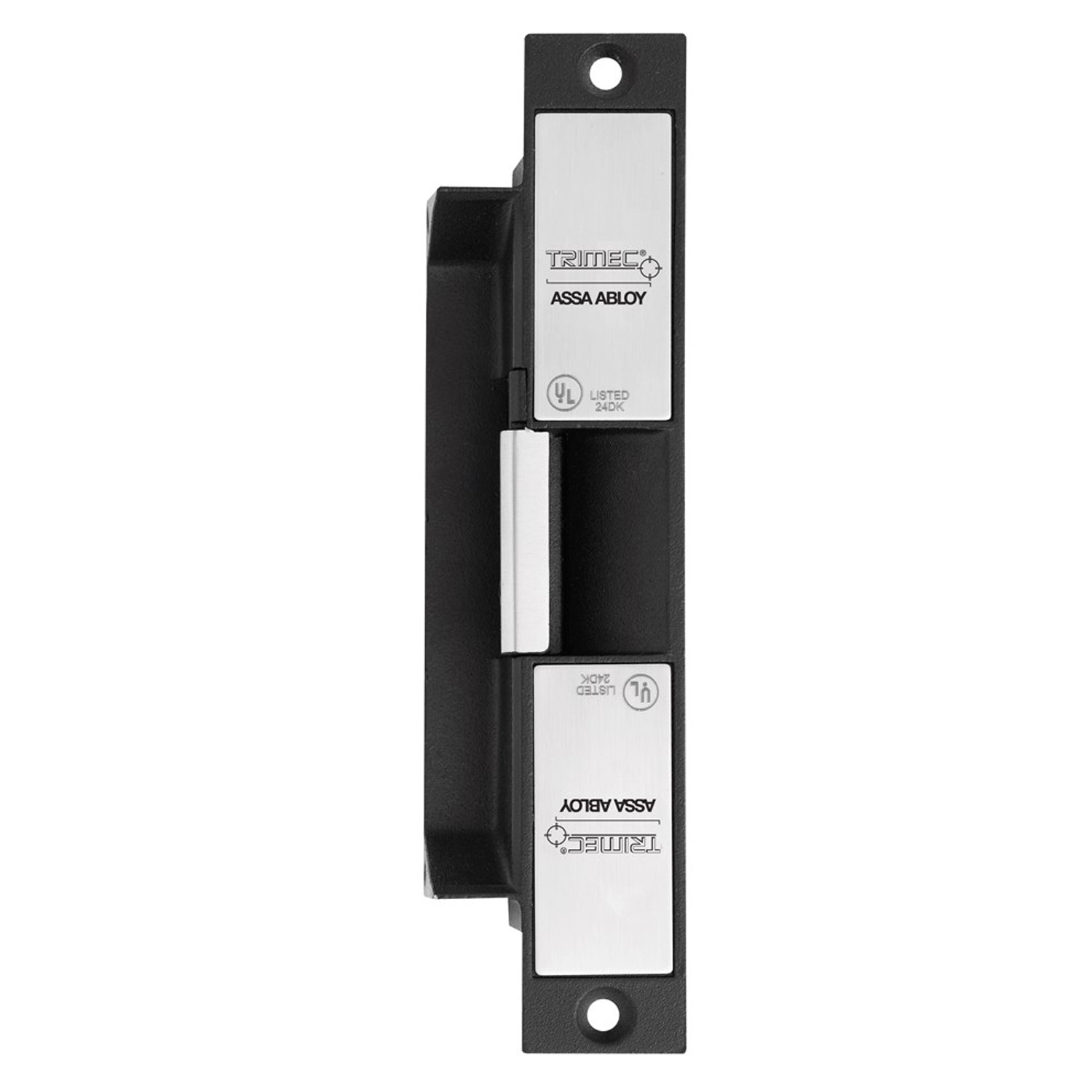

Trimec ES2000 Electric Strike
110201-000

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• The Trimec® ES200 series electric strikes are designed for use with all access control systems.
• Fail secure/fail safe is changeable on site.
• Suitable for use on hinged doors with fire and/or high security requirements.
• Non-handed.

Features:

• Fire rated to 4 hours
• Drilled for lip extension
• Suitable for use on hinged doors with fire or security requirements
• This series has a deeper throat than most others on the market
• Power to open/power to lock
• Changeable on site
• Stainless steel striker
• 3 hardened locking pins
• Solenoid can be continuously powered
• Self adhesive installation template
• Supplied with mounting kit
• TRICARE 5 Year Warranty

Applications:

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Specifications:

• Holding force: 850kg
• Low Current Consumption: Max 175mA @ 12Vdc
• Drilled for Lip Extension: Yes
• Field Selectable: Fail Safe/Fail Secure Yes
• Working Voltage: 12 Vdc
• Fire Rated: Yes, 4 hours
• Locking Mode: Fail Secure/Fail Safe
• Holding Strength: 850kg
• Depth of Body: 27mm

Standards and Compliance:

• S3 (Security) Australian Lock Standard (AS4145.2.· 2008)
• D3 (Durability) Australian Lock Standard (AS4145.2· 2008)
• BS 5872 Approved
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
• For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
• Approved to UL1034 (highest level)
• CE approved (EMC, ROHS & REACH)
• Regulatory Compliance Mark (RCM) approved
