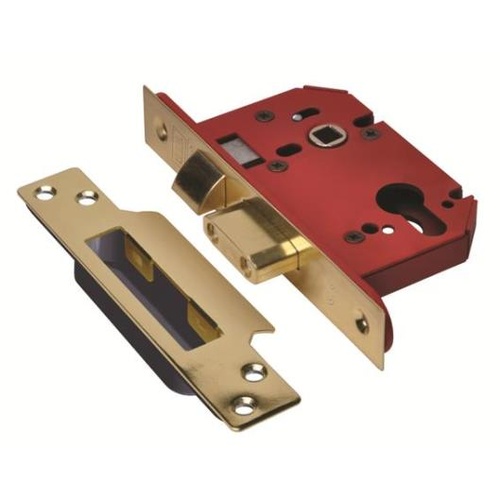

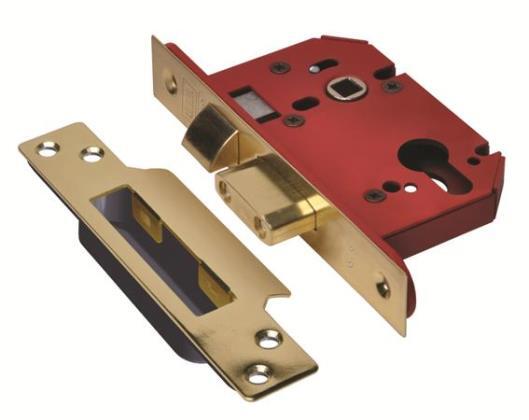

Euro profile cylinder Sashlock
JL22EUS-SS-3.0

Application:

• For timber doors hinged on the left or right
• Suitable for doors up to 54mm thick
• For use with an euro profile cylinder

Features:

• Easily reversible radius latch that uses the unique
• UNION SwitchLatch technology, No tools are needed,
• it's Time saving and Simple
• Anti rattle adjustable strike for on site fine tuning
• Radius plastic splinter guard for easy installation and a
• professional finish
• Anti­saw security features for resistance against attack
• Chamfered bolt design increases the performance of the lock under side load testing.
• Radius inner forend for ease of installation
• Deadbolt locked or unlocked by the cylinder key or turn
• 14mm deadbolt for secure positive deadlocking
• Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
• Hardened steel pins provide resistance to attack from sawing

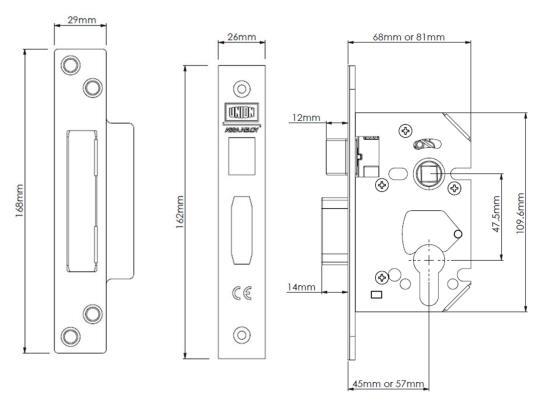

Specifications:

• Case Size:  81mm (3")
• Backset: 57mm
• Case: Steel, red powder coat
• Forend: Stainless steel or brass plated
• Striking Plate: Finished to match forend
• Faceplate: Supplied with square faceplate which covers a radius inner forend
• Deadbolt: Zinc with hardened steel rollers
• Latch Bolt: Zinc
• Follower: Sintered Steel
• Rebate Kit: 2200REB 13mm (0.5")
• Suitable for use on 30 and 60 min fire doors
• Finish: Stainless Steel
