Whitco Spring Sash Window Balance
W631881

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

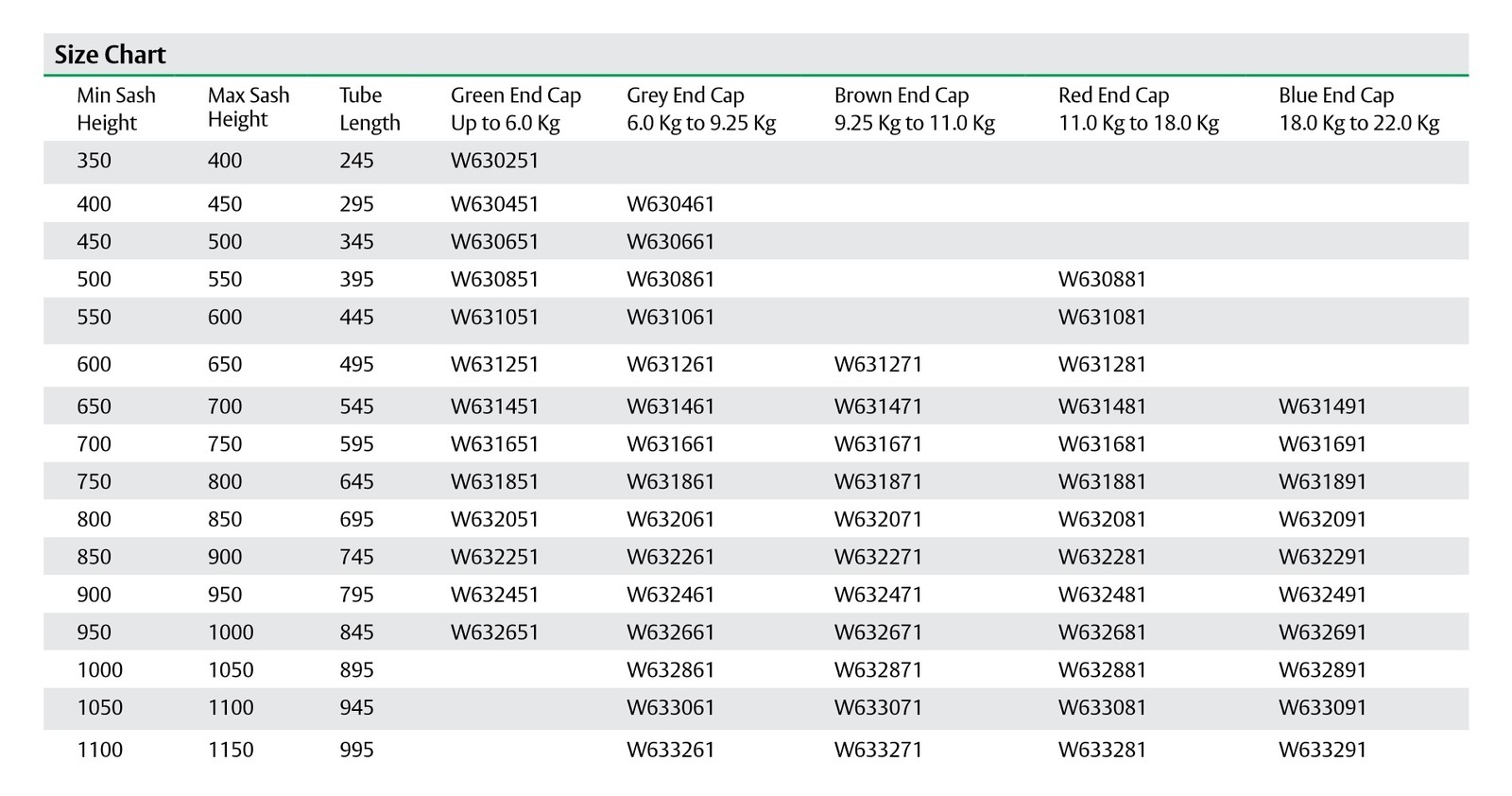

Important: 3 digit number in the title is NOT the length of the sash balance, please see below for measurements.

Description:

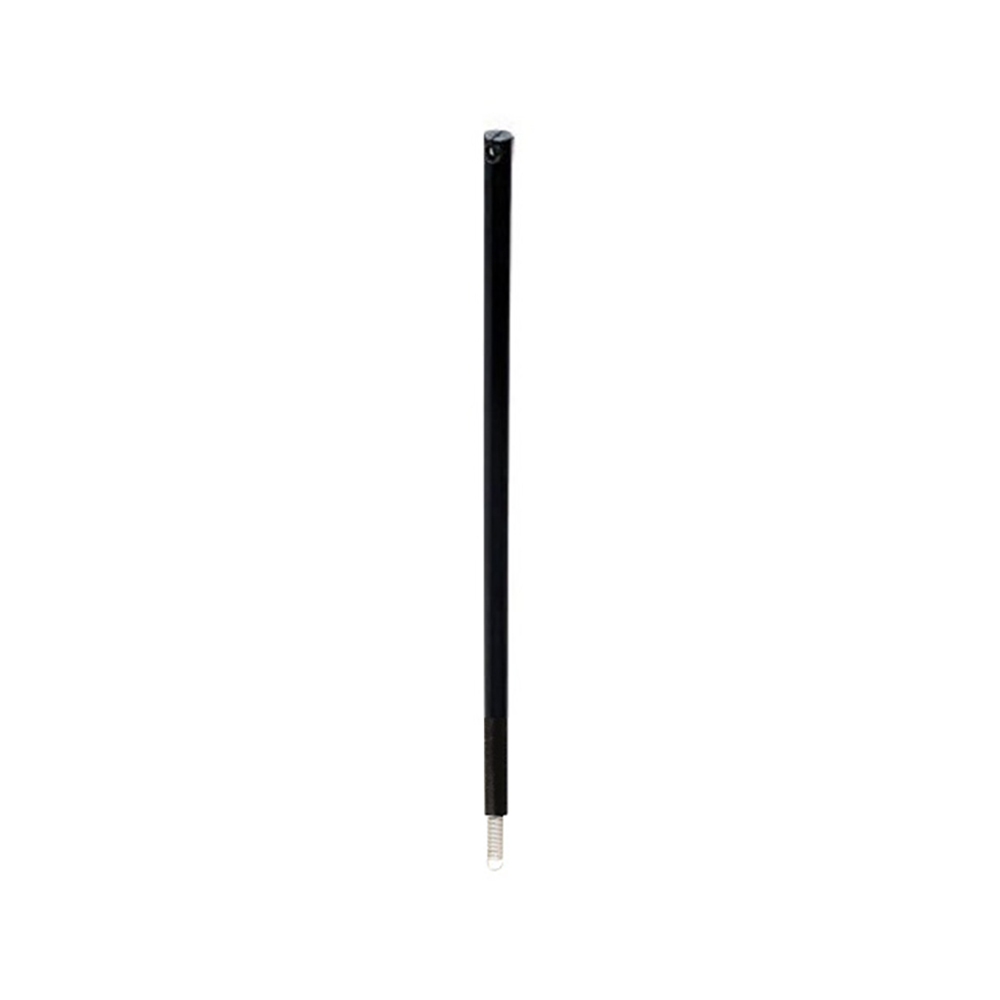

  • Narrow, tension spring balance and friction foot system for aluminum double hung windows. Maximum sash weight of 22Kg.

Features:

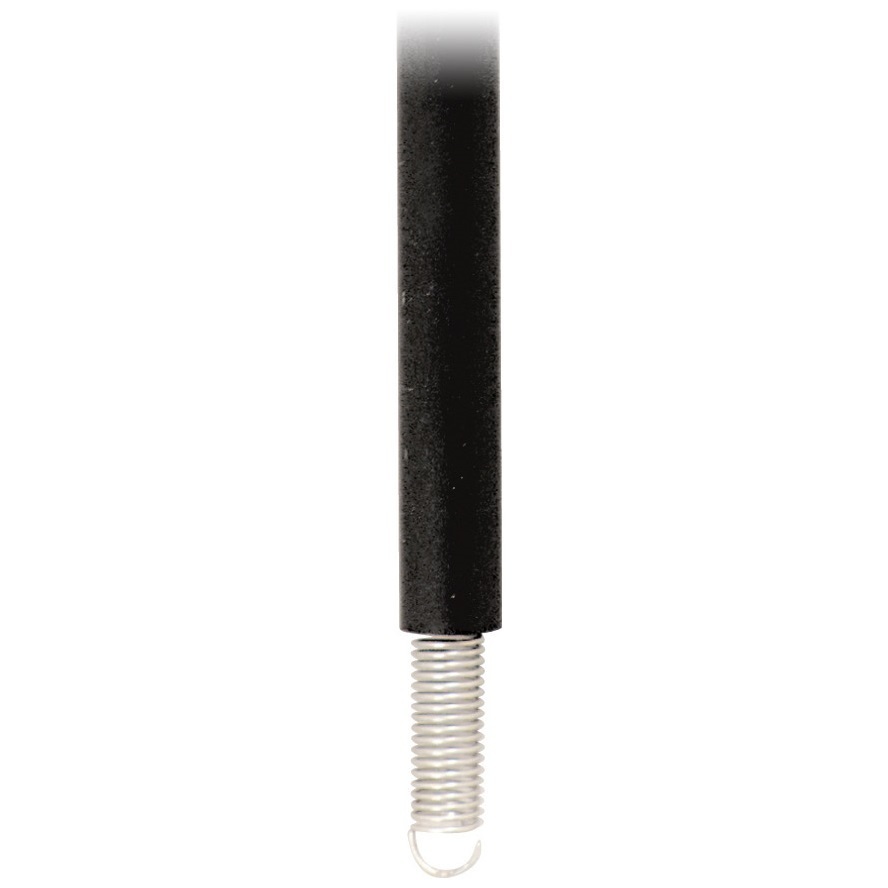

  • Oil tempered galvanised carbon steel tension spring
  • High quality Tension foot with stainless steel bow spring and adjustable polymer friction pads
  • Tough ABS black polymer outer casing
  • Shock absorbing stops available

Specifications:

  • Red End Cap 11 Kg Up to 18 Kg
  • Min Sash Height: 750mm
  • Max Sash Height: 800mm
  • Tube Lenght: 645mm

Accessories: (Not Included)

Accessories for these sash balances are also available. Please search our store for the following items

  • W635100 Standard Foot Assembly 2.5mm Pads
  • W635200 Narrow Foot Assembly
  • W635500 J Foot Assembly
  • W635600 A & L Foot Assembly
  • W635900 W Foot Assembly
SKU ASSW631881
Barcode # 9311847992580
Brand Whitco
