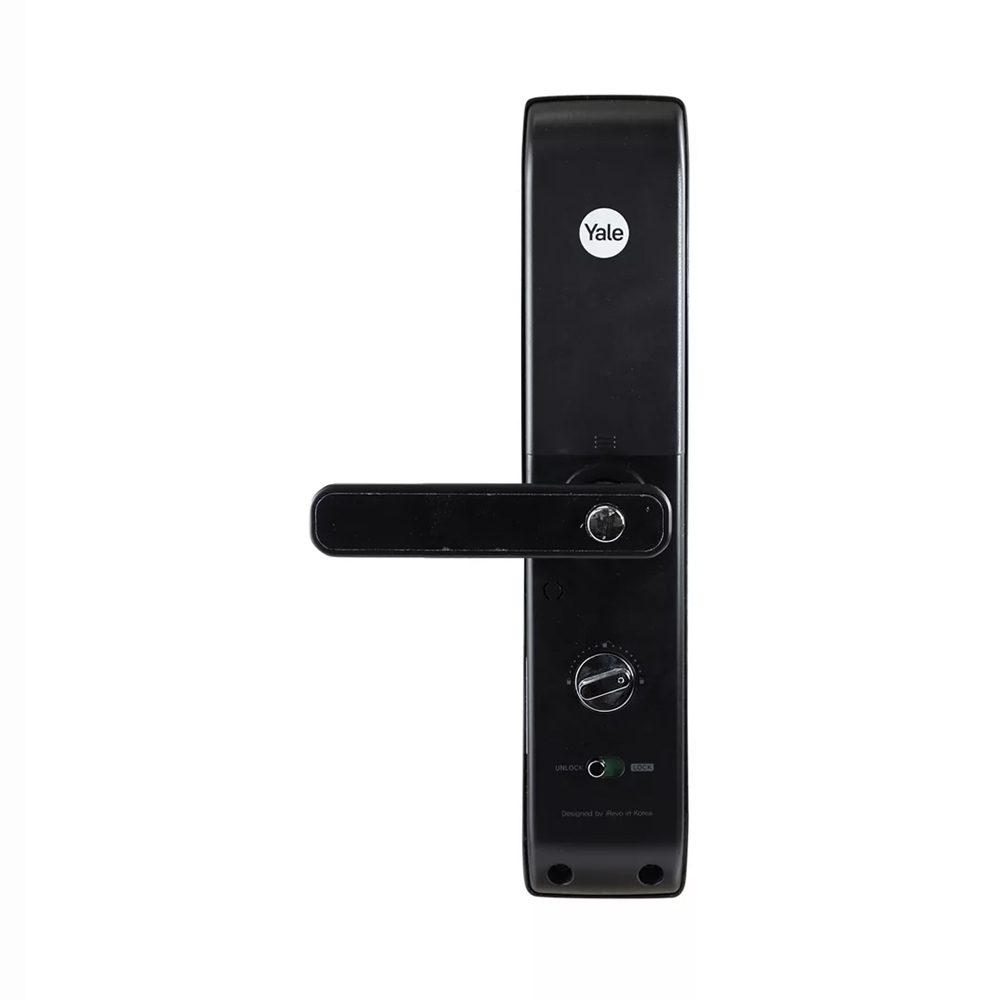

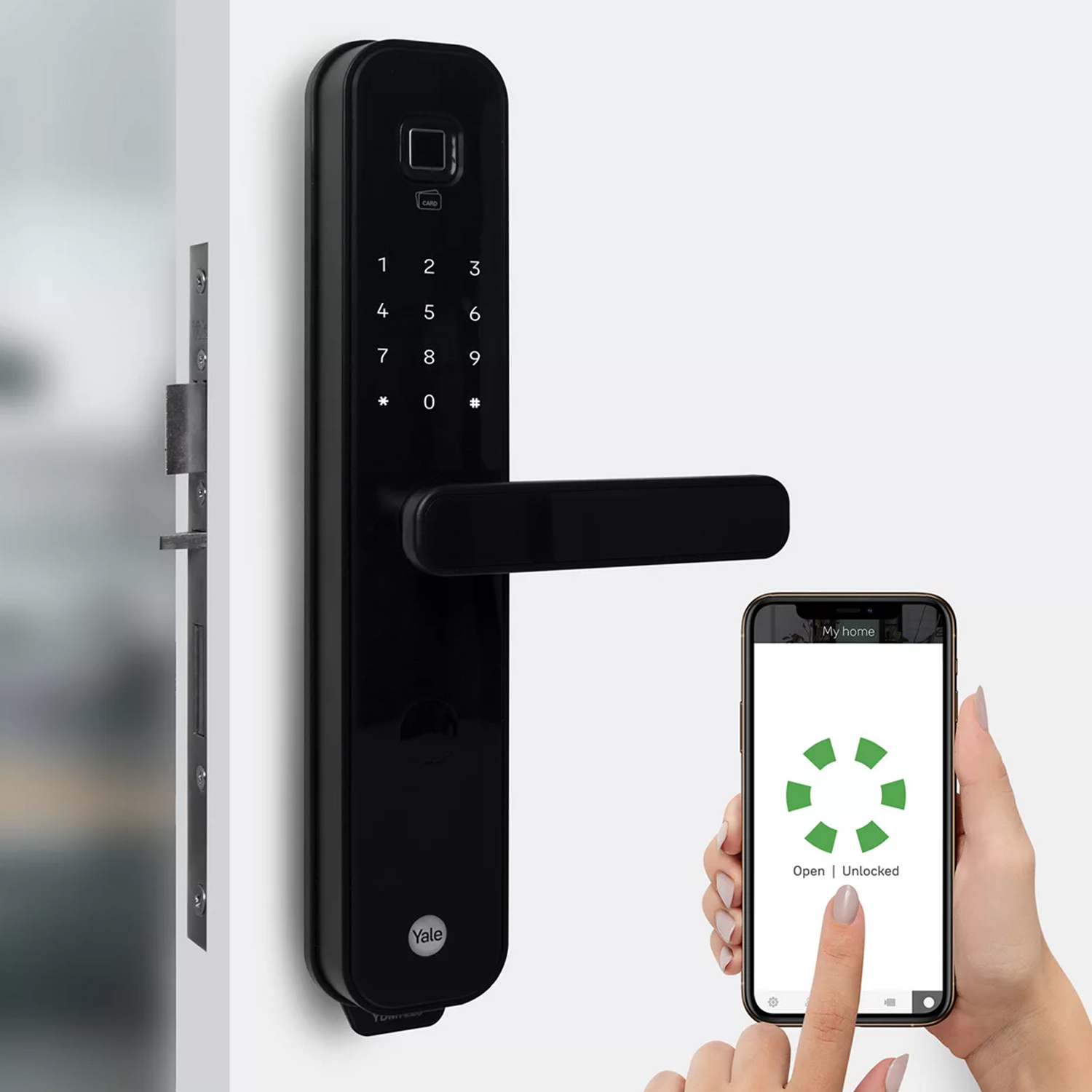

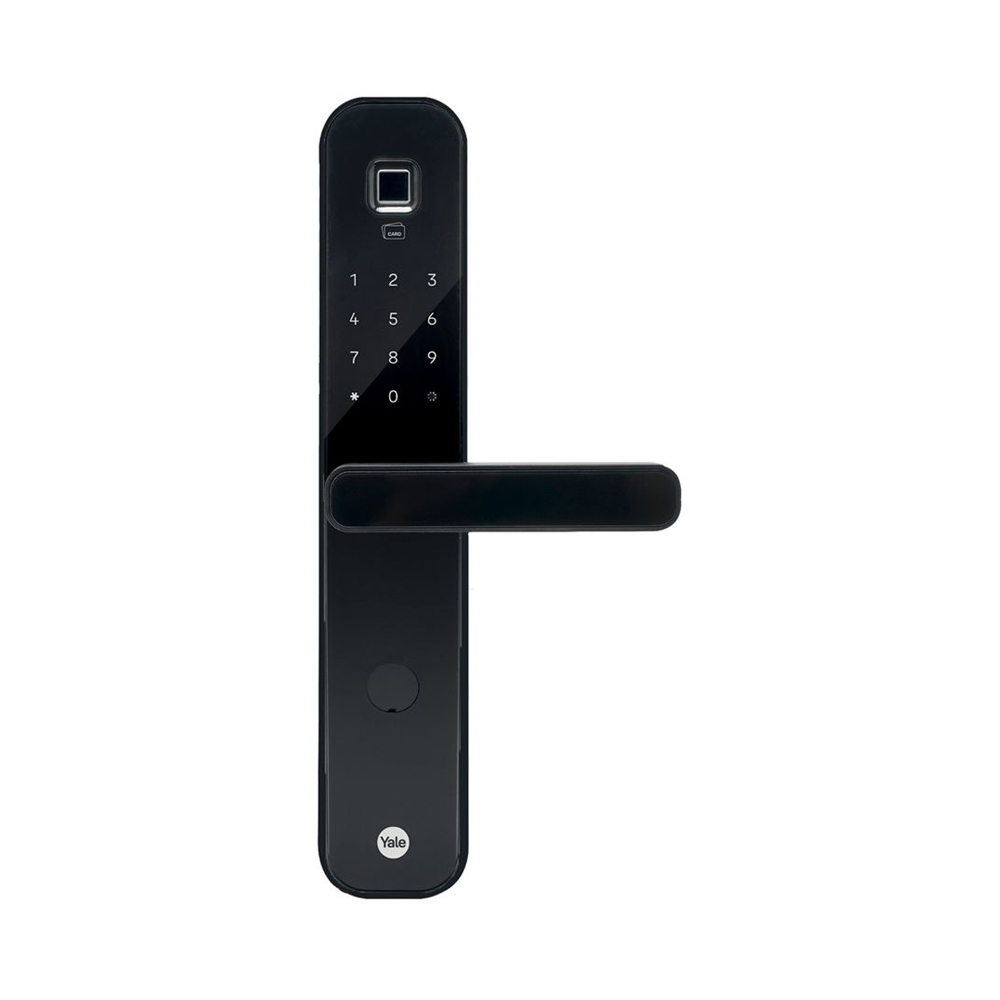

Yale YDM7220 Smart Digital Mortice Lock with Home Module
YDM7220/60/HK/MBK

Digital Door Lock designed for medium to heavy duty applications. Its full size lever handles and its large 10 digit keypad enables to control access in a wide variety of applications.

Digital Door Lock Function - The door can be unlocked by entering the correct code on the digital keypad (allowing keyless entry).

Features:

• Create up to 100 Unique PIN codes
• Create up to 100 fingerprints
• Control through one APP with the YDM series Yale Home module (included)
• Suitable for timber doors 40mm to 95mm thick
• Mechanical key override
• 60mm backset mortice lock
• BioSecure coating on the lever handle which is formulated using silver ions to inhibit bacteria growth and reduce the risk of secondary infections
• 4 x AA Alkaline Batteries
• 9V battery backup
• Home automation integration capabilities with Yale Connect Plus Bridge

Specifications:

• Lock Type: Mortice lock
• Door Thickness: 40-95mm Timber door
• Backset: 60mm
• RFID: 4 x Contactless Key Tags Included
• Fingerprint: Yes, up to 100 registrations
• Power: 4 x AA Alkaline batteries
• Battery Life on Lock: Approximately 12 months
• Low Battery Warning: Yes
• Volume Settings: Yes
• Operating Temperature: -25 - 70 Degree Celsius
• Humidity: 0 - 95%
• IP Rating: IPX4
• Use: Entry doors. Not for use on doors where the internal escutcheon is exposed to outside elements. Eg: Outdoor gate
• Break In/ Tamper Alarm: Yes
• Finish: Matt Black

Rating/Compliance:

• Compliance Regulatory Compliance Mark (RCM & R-NZ) for Australia and New Zealand

Note:

• Yale YDM series Rebate kit (SYDMRK01) is sold separately
• Yale Connect Plus Wi-Fi Bridge is required and sold separately
