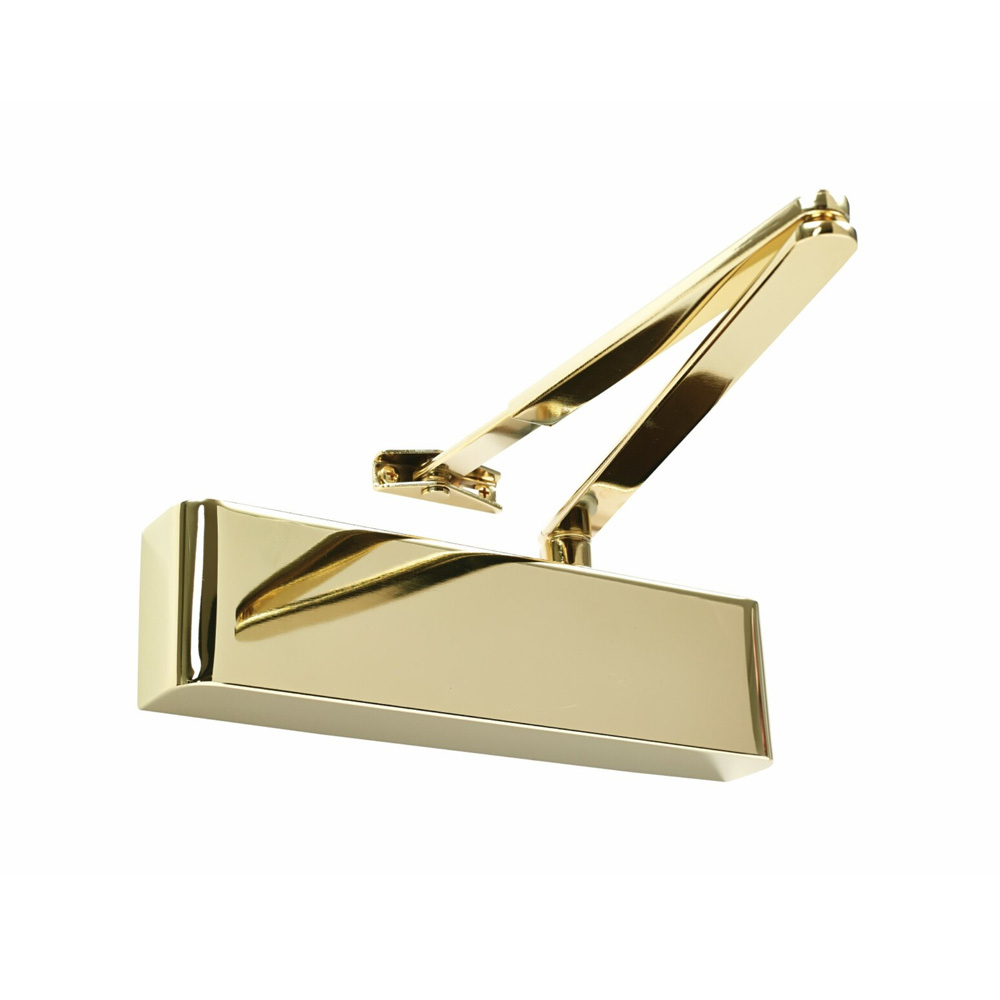

Zanda Door Closer Combined Unit - Flat Bar Armset
TS.9205.SRFB.EB

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

• 1 x TS9205 mechanism
• 1 x Flat Bar Armset
• 1 x Semi-Radiused Cover

Features:

• Variable power adjustable EN2-5
• Suits doors up to 110kg and 1250mm wide
• Universal application can be fitted in Standard, Parallel arm or Transom fitting position
• Comes standard with delayed action and back check.
• Unique semi-radius cover for an architectural look make your project stand out
• Fire tested to Australian standards
• Ideal for disability compliant projects due to its ease of opening and efficiency
• Closing and latching speeds can be adjusted from the front of the mechanism
• Suitable for timber, metal and aluminium doors

Specifications:

• Strength: EN2-5
• Mechanism: Rack and Pinion
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Adjustable Delayed Action: Optional
• Adjustable Back Check: Yes
• Door Width: 850mm to 1250mm
• Door Weight: 45kg to 110kg
• Opening Angle: 180 degrees
• Left Hand and Right Hand Doors Universal Application: Yes
• Fire Rated (BS EN 1634-1: 2000): Yes
• Tested to BS EN1154: 1997: Yes
• Finish: Electro Brass
