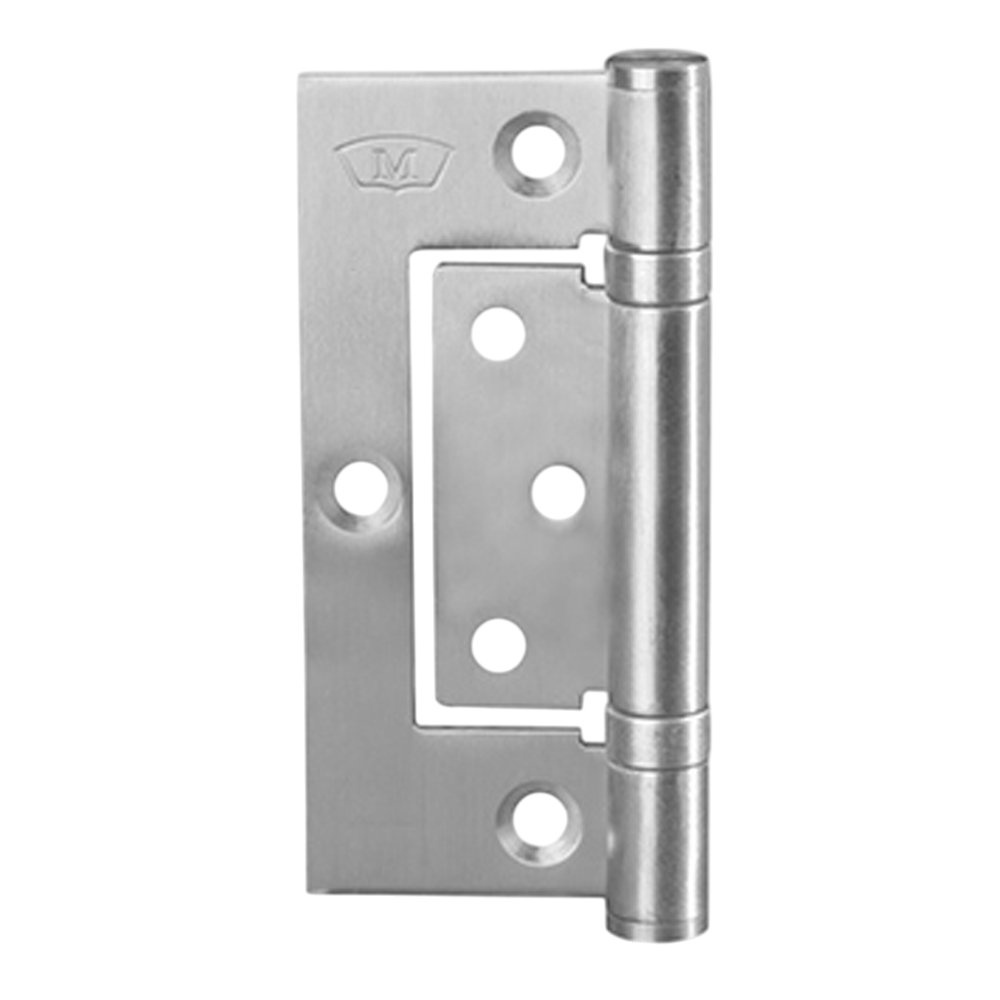

McCallum Offset Knuckle Interfold Hinge
S261SSS

Interfold Hinge used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.

Interfold Hinge Function - suitable for either centre pocket or front edged glazing systems.

Features:

  • Medium Duty Interfold Hinge
  • Offset Round Knuckle
  • Suitable for Aluminium & some Timber doors in Aluminium frames

Specification:

  • Hinge Type: Interfold Hinge
  • Length: 100mm
  • Width: 35mm
  • Thickness: 2.5mm
  • Knuckle: Round Offset
  • Material: Stainless Steel 304 Grade
  • Hinge Pin: 6.9mm Stainless Steel 304 Grade
  • Bearings: Stainless Steel Off-Cage Ball Bearing
  • End Cap: Spun Riveted Hinge Pin
  • Handing: Non-Handed
  • Frame Type: Aluminum
  • Door Type: Aluminum – Timber
  • Minimum Door Thickness: 35mm
  • Finish: Satin Stainless Steel
SKU MCCS261
Barcode # 2000000017181
Brand McCallum
