Iver Annecy Door Lever on Stepped Backplate Privacy Kit with Turn
11744KPRIV60

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

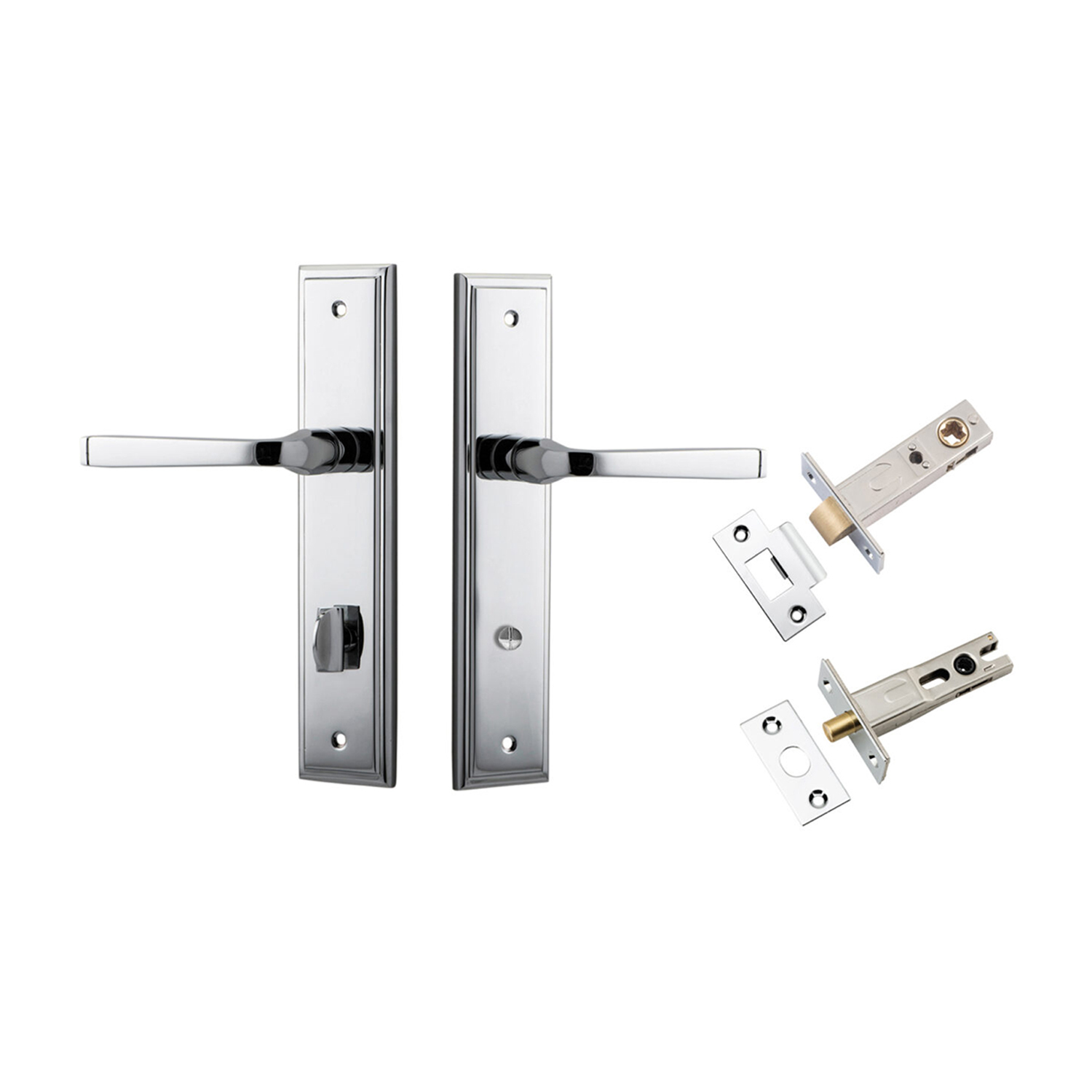

Includes:

• 2 x Levers on Backplates

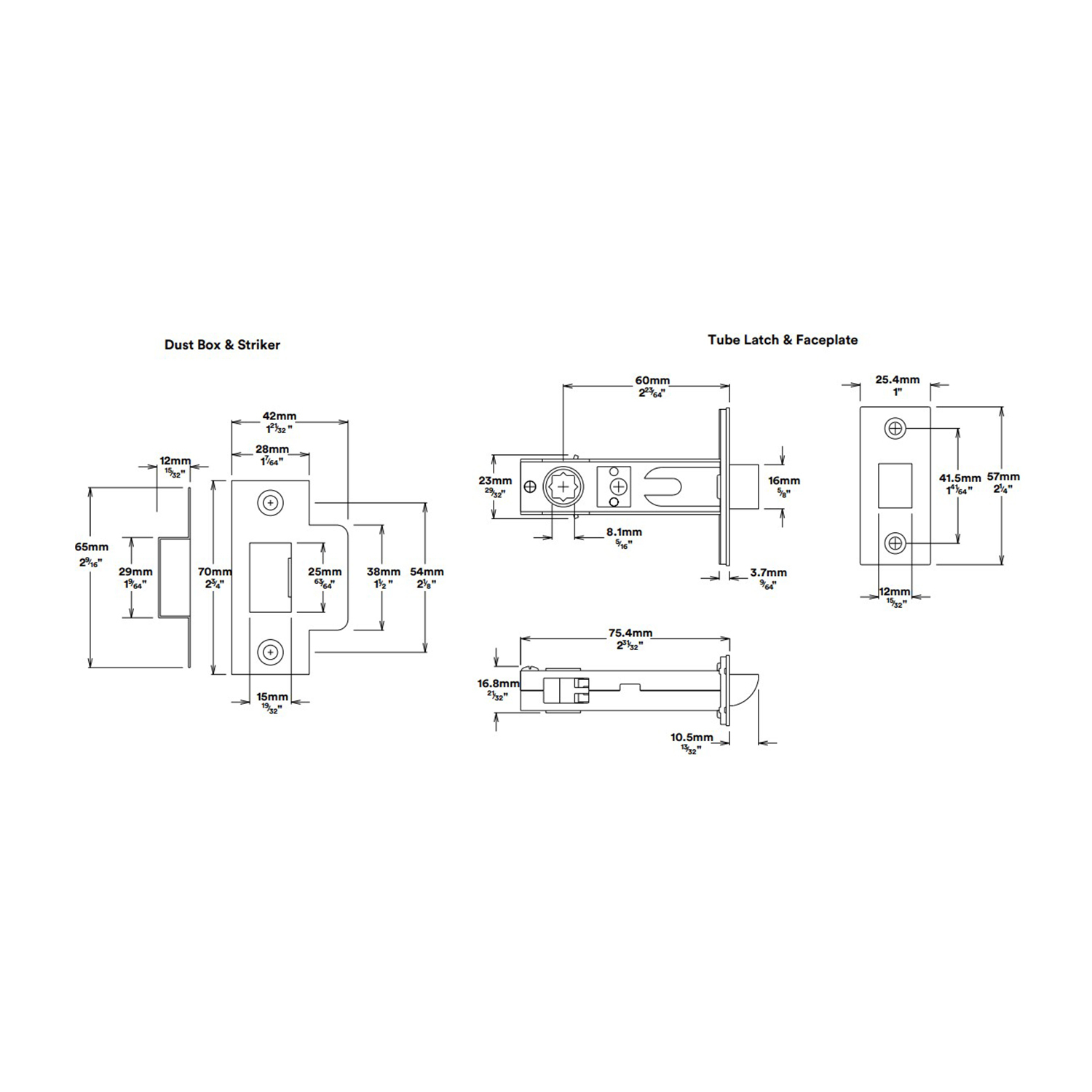

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

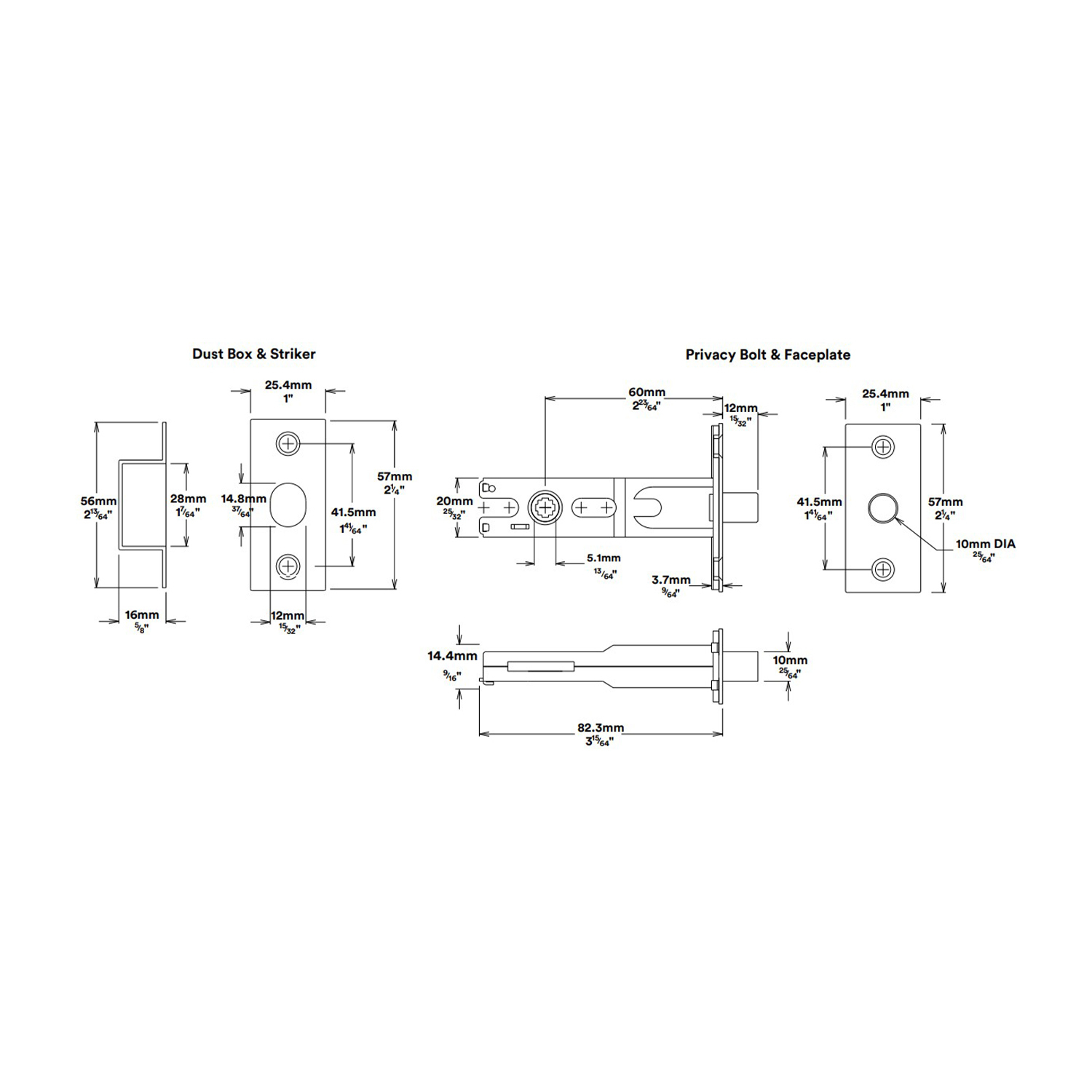

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice
• Classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time

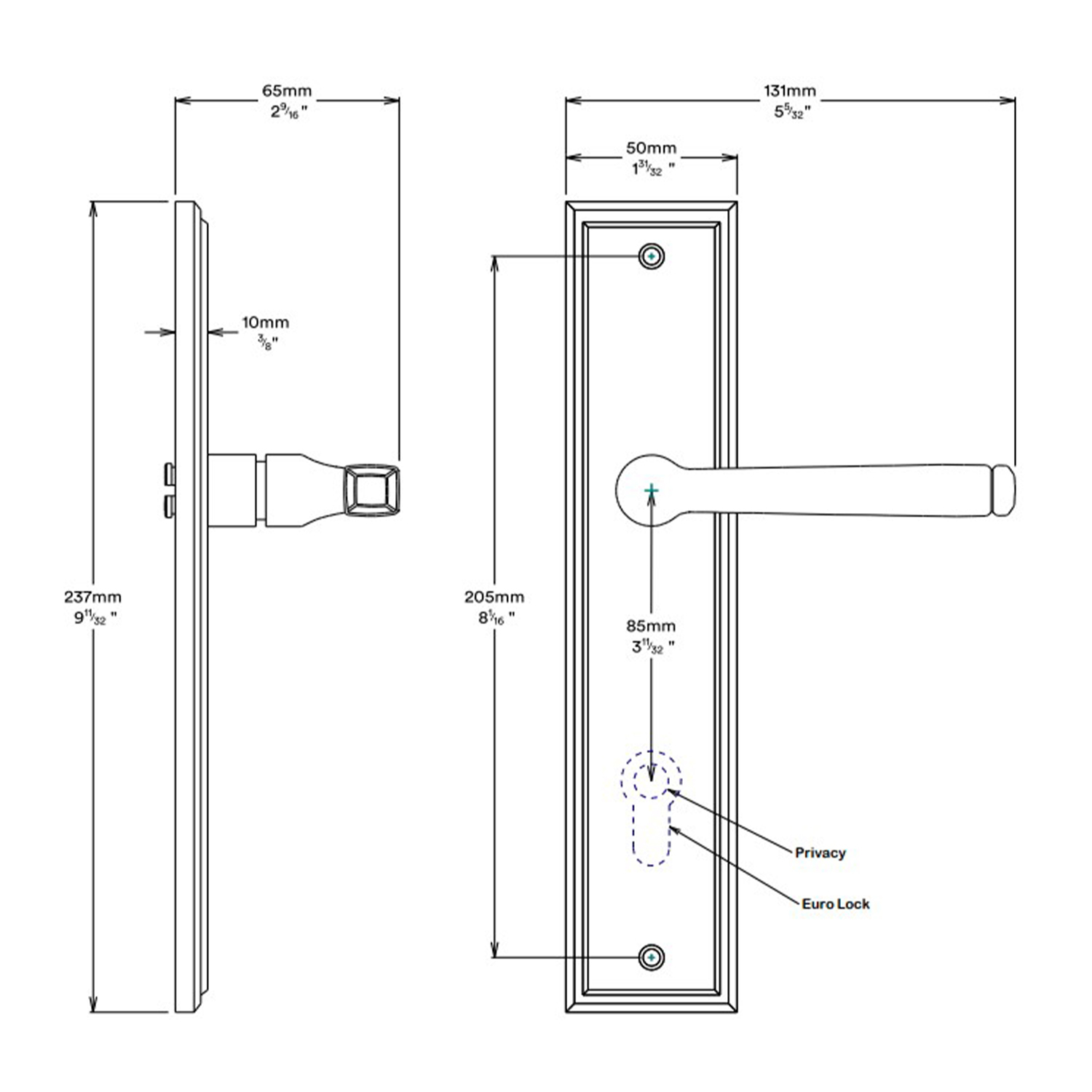

Specifications:

• Backset: 60mm
• Height: 237mm
• Width: 50mm
• Length: 117mm
• Projection: 66mm
• Centre to Centre: 205mm
• Finish: Polished Chrome
