Iver Baltimore Door Lever Handle on Square Rose Privacy Kit

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

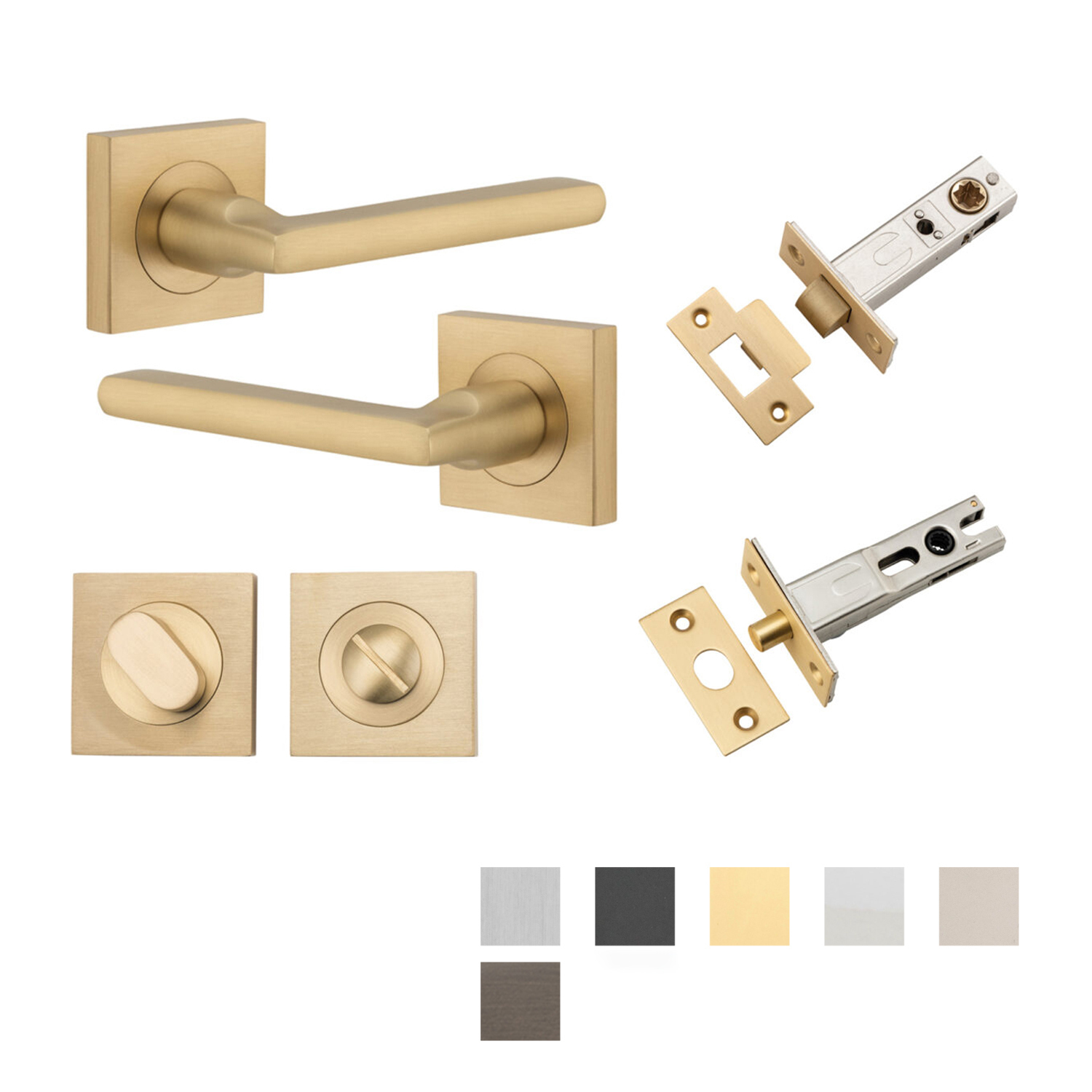

Includes:

• 2 x Levers on Square Roses

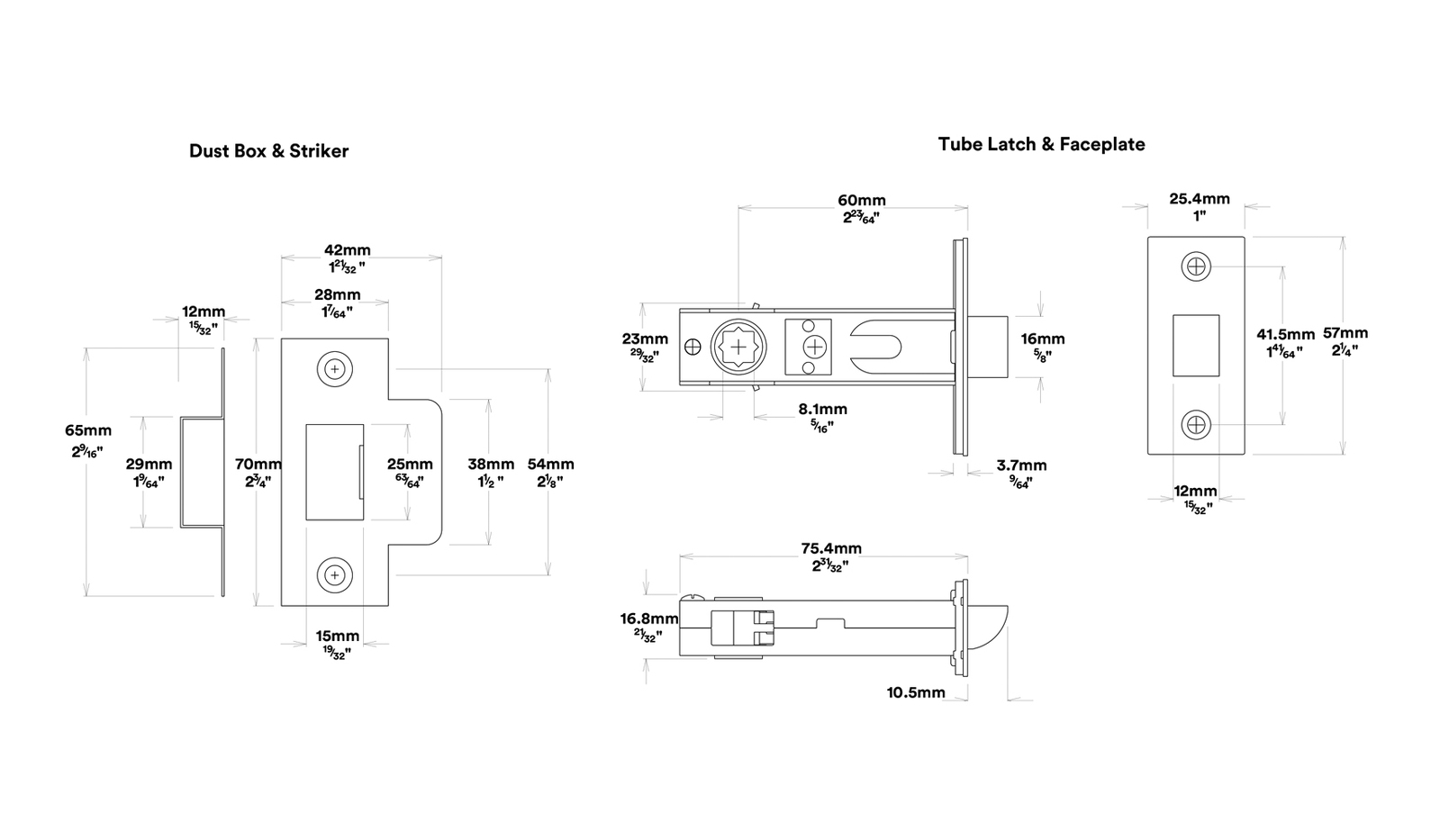

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

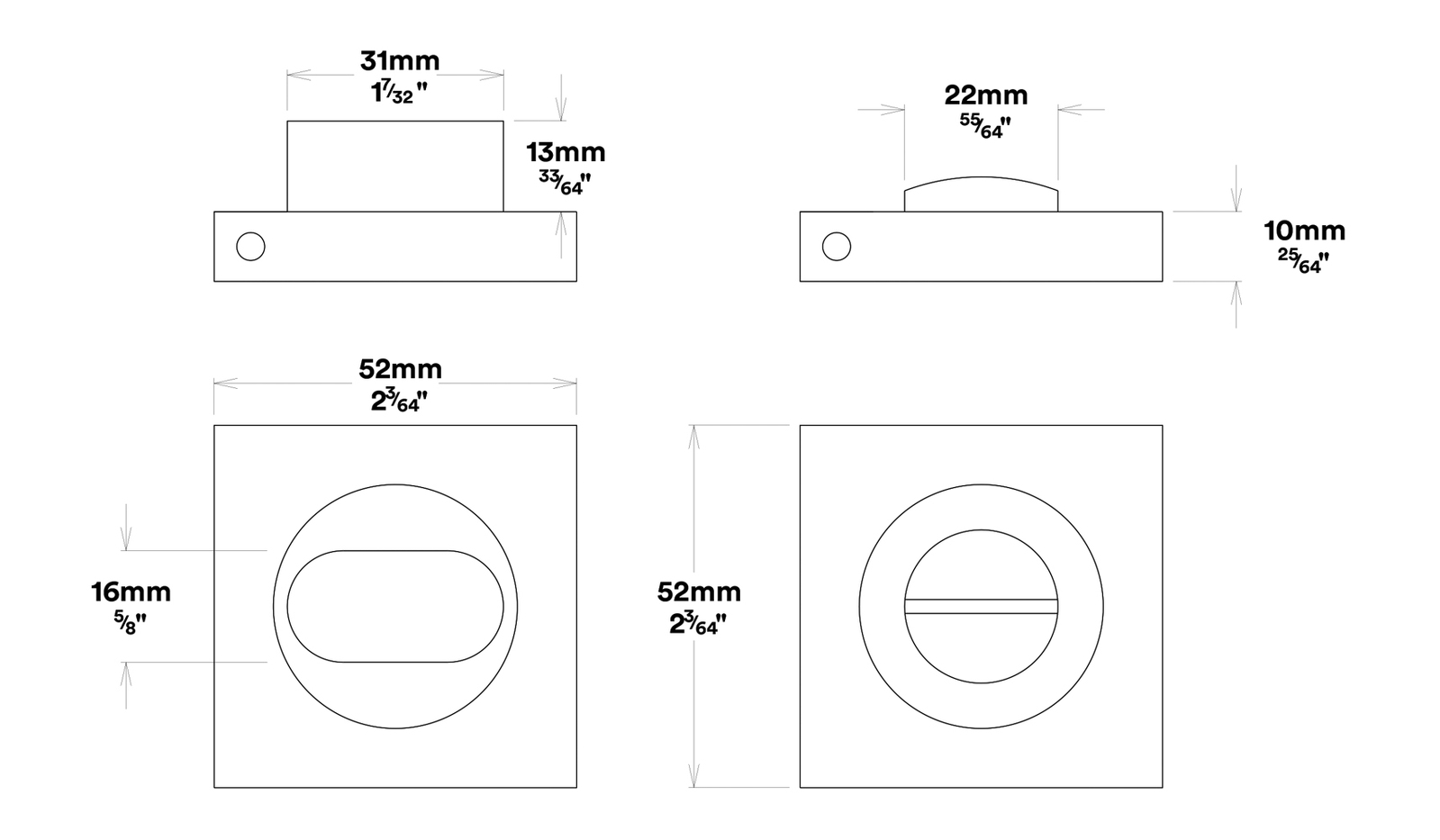

• 1 x Privacy Turn Oval Concealed Fix Square

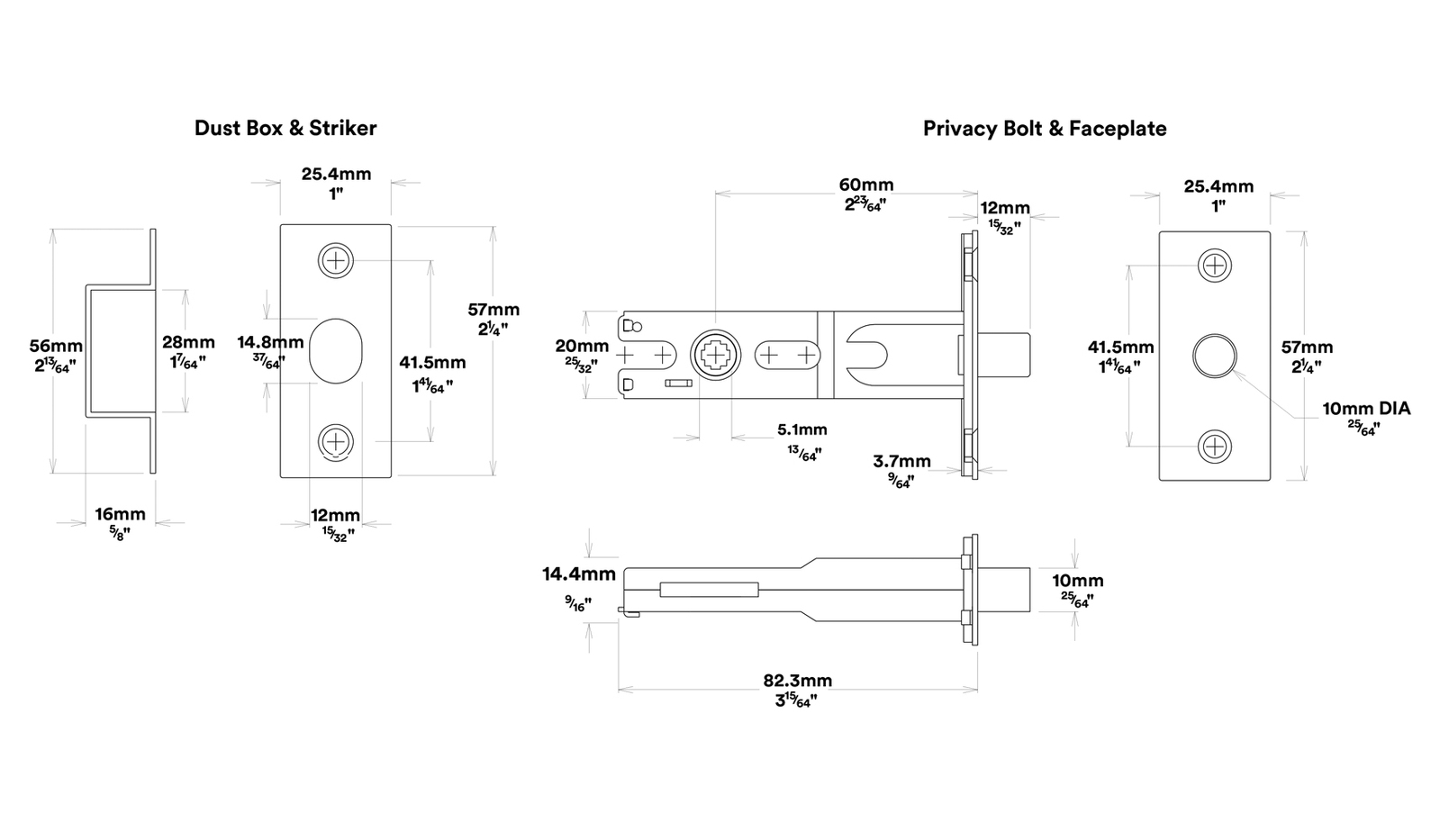

• 1 x Privacy Bolt Round Backset 60mm
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Privacy Spindles
• 39 x Screws
• 2 x Dust Boxes
• 2 x Allen Keys
• 4 x Grub Screws
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Baltimore lever is a versatile option, boasting a slimline design that effortlessly integrates into the style of any project without overshadowing or detracting from the overall aesthetic
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms
• Successfully tested to meet highest durability rating (500,000 cycles)

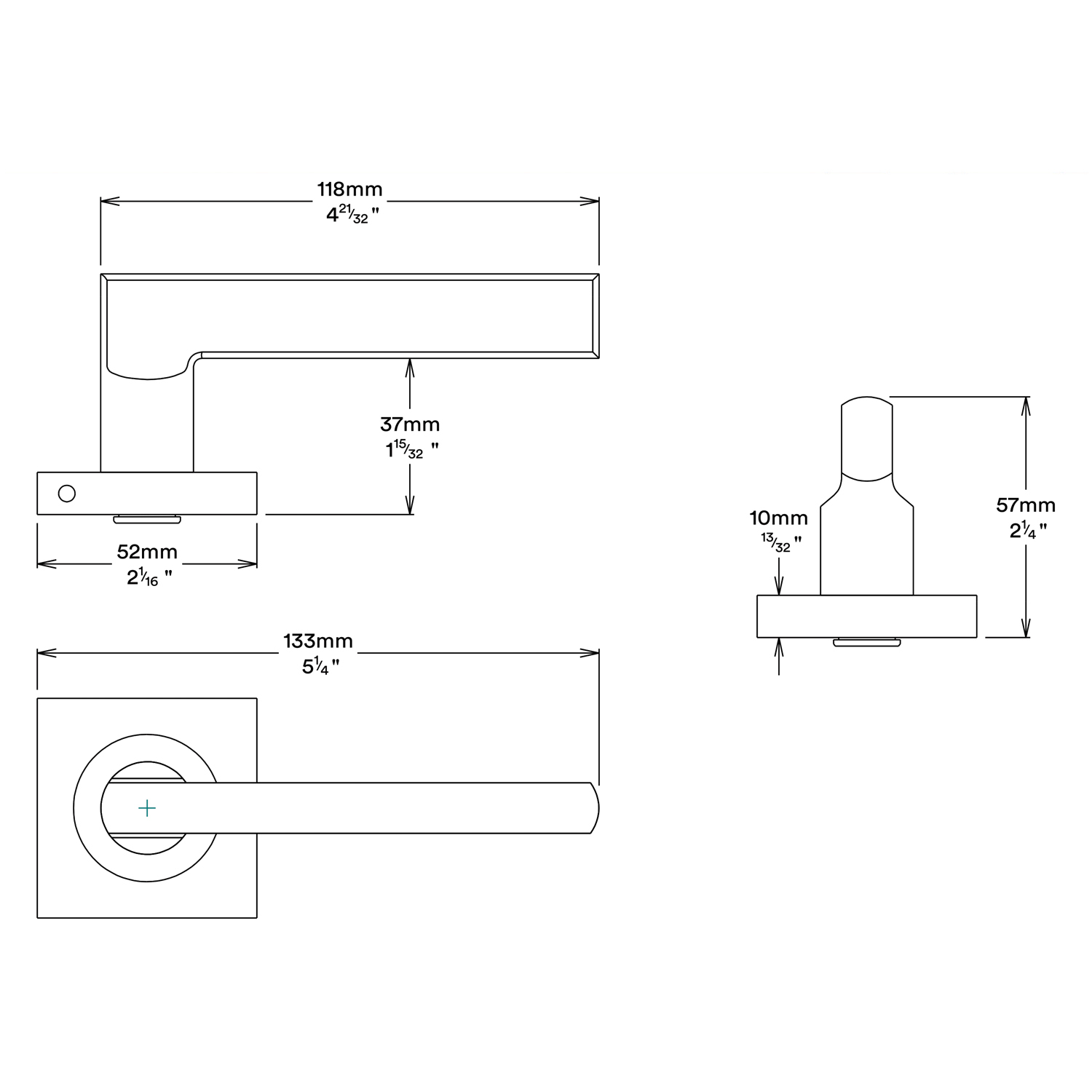

Specifications:

• Backset: 60mm
• Height: 52mm
• Width: 52mm
• Length: 118mm
• Projection: 57mm
• Centre to Centre: 41.5mm
• Function: Privacy
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
