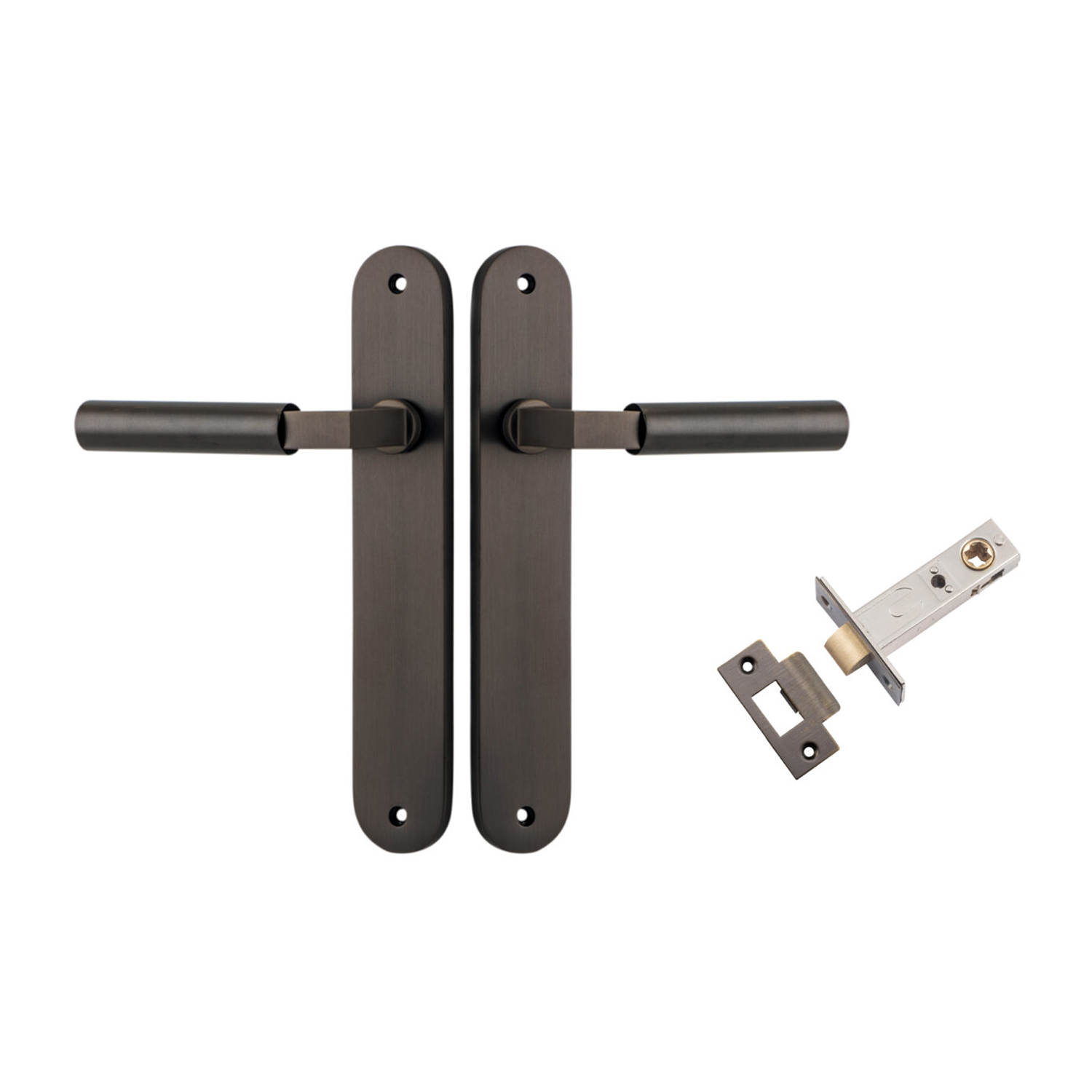

Iver Berlin Door Lever Handle on Oval Backplate Passage Kit
10766KPASS60

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

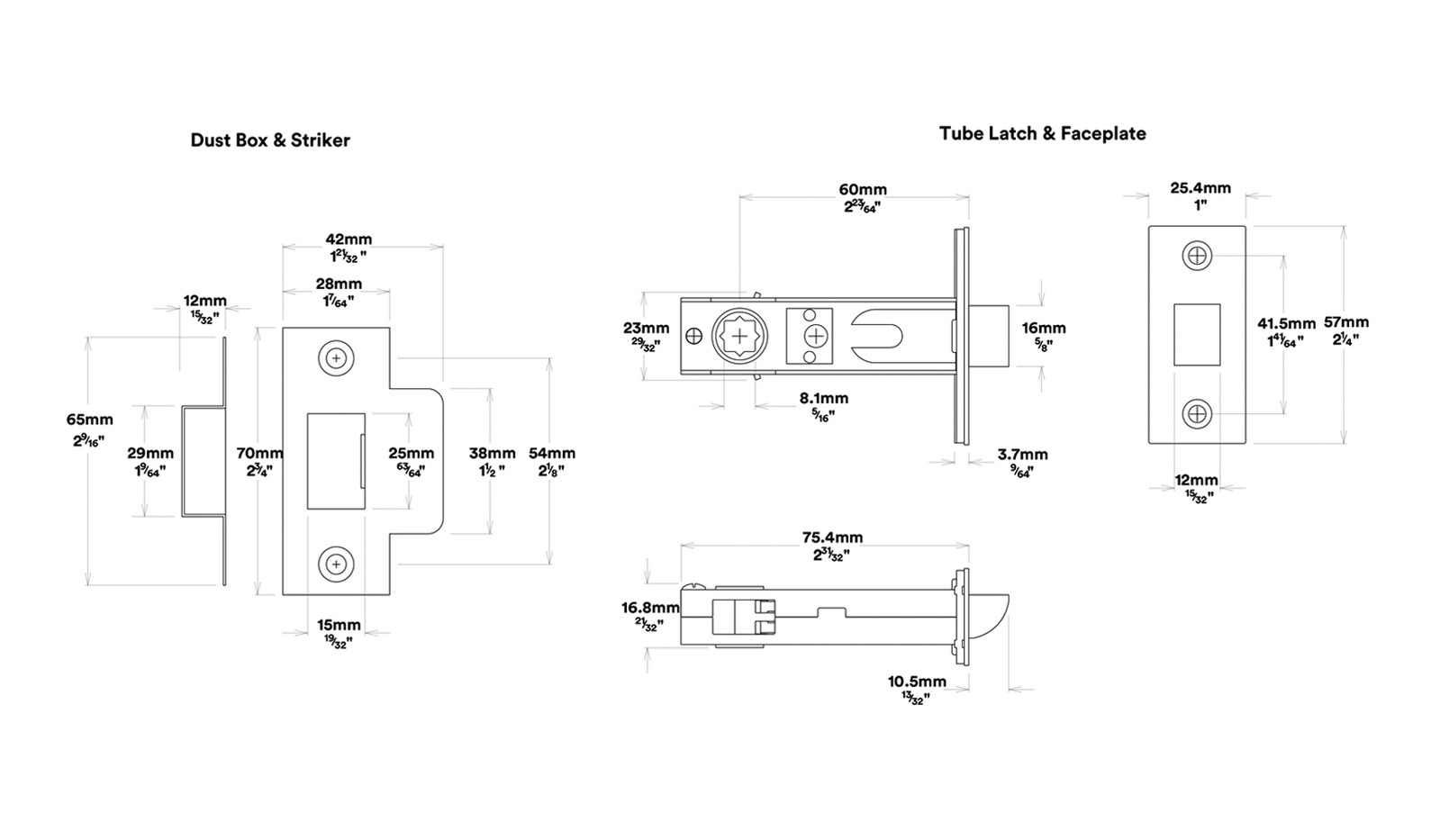

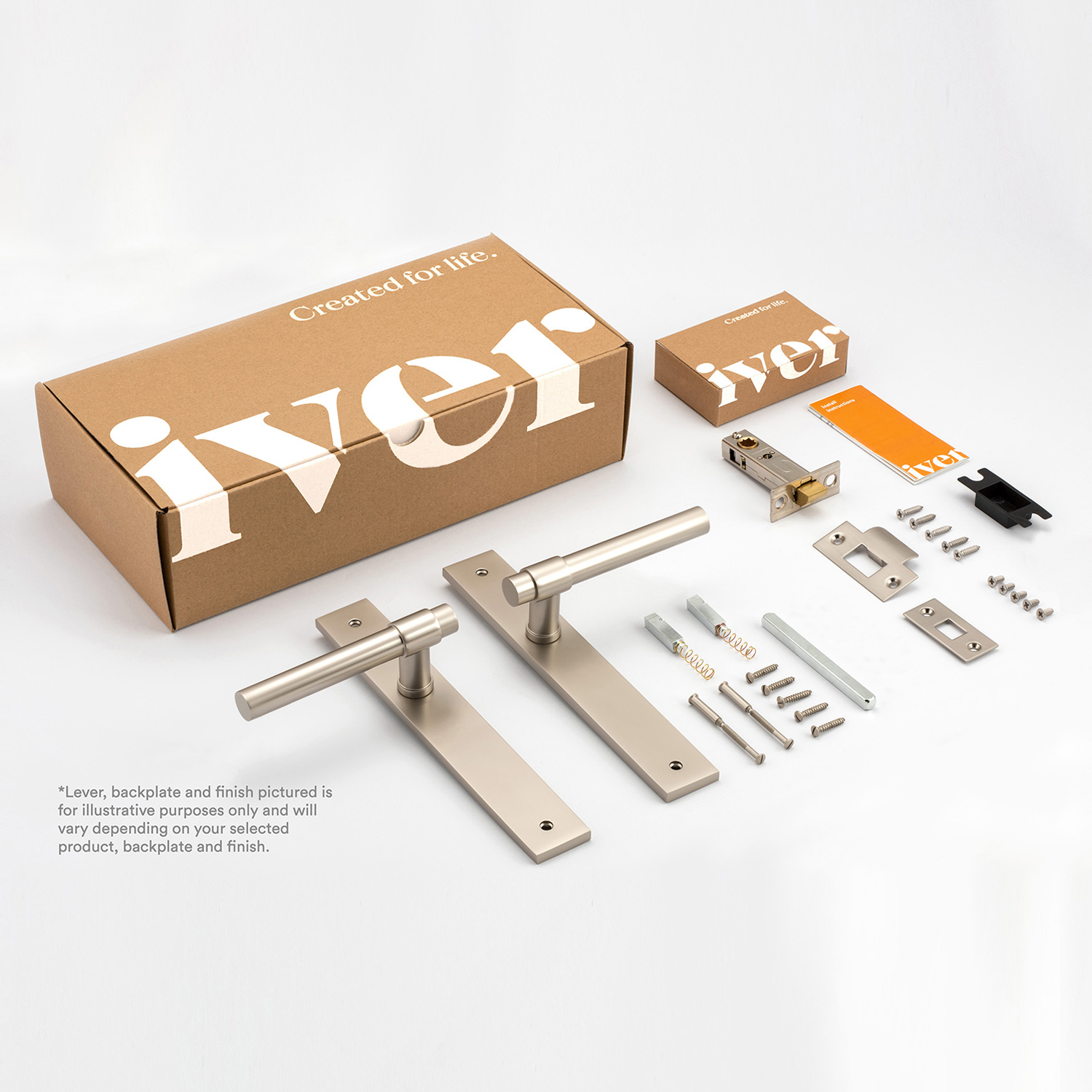

Includes:

• 2 x Berlin Levers on Oval Backplate
• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 15 x Screws
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Tie Bolts
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Berlin lever features a sleek bar-shaped handle, reminiscent of a classic Bauhaus design
• The lever’s clean and unadorned form is visually striking, while its ergonomic handle ensures ease of use
• The Berlin lever is an essential choice for any project that seeks to capture the essence of modern style and practicality
• For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries

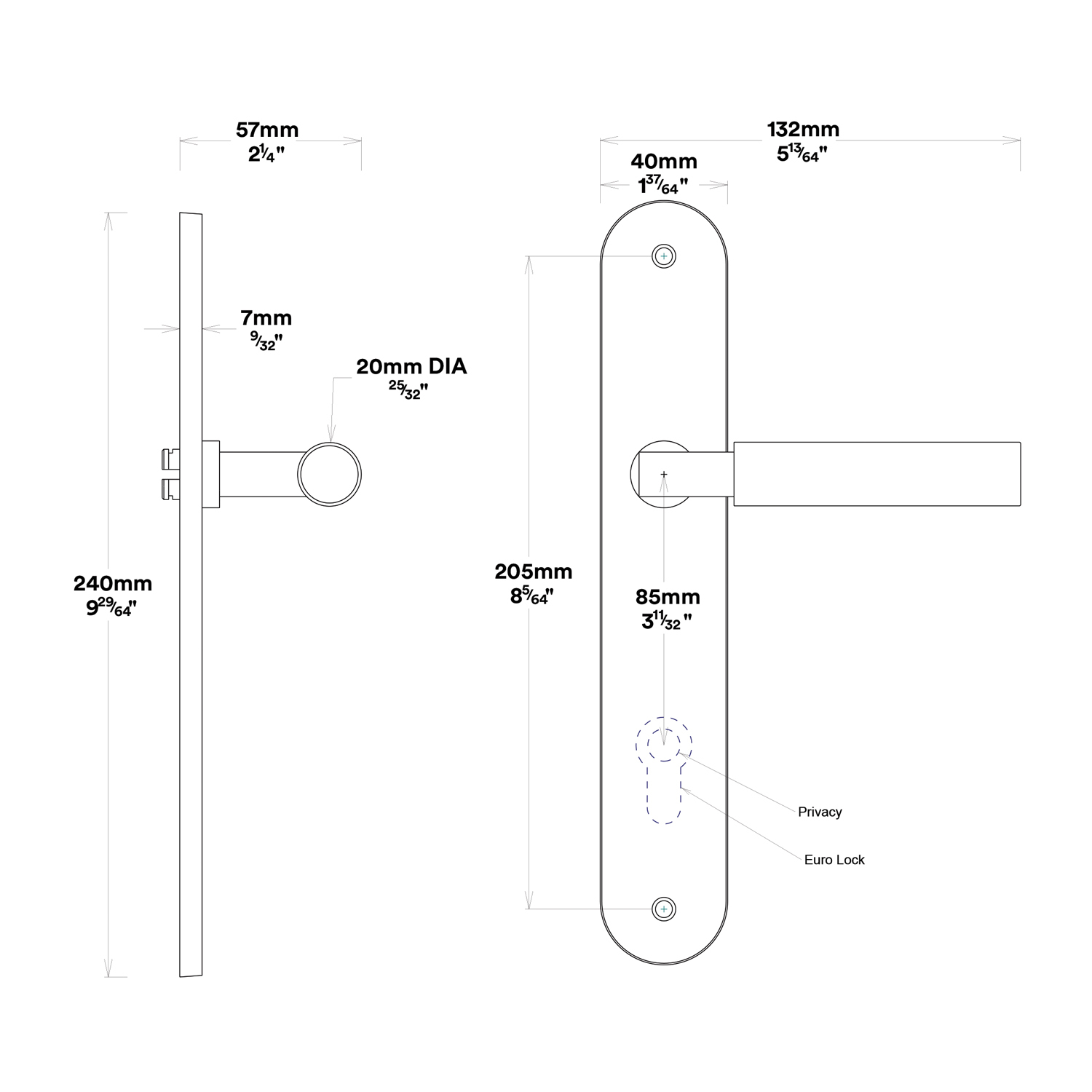

Specifications:

• Height: 240mm
• Width: 40mm
• Length: 120mm
• Projection: 57mm
• Centre to Centre: 205mm
• Function: Passage
• Finish: Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
