Iver Berlin Door Lever Handle on Round Rose Privacy Kit

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

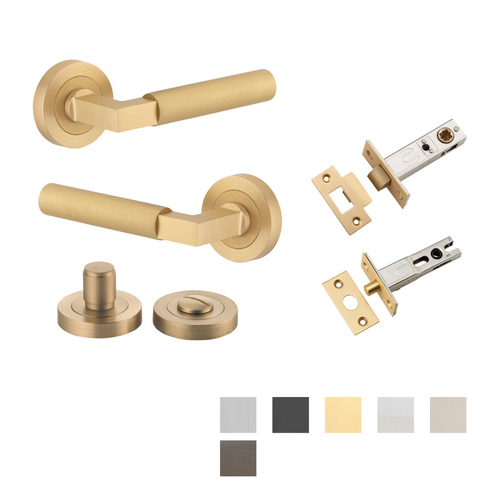

Includes:

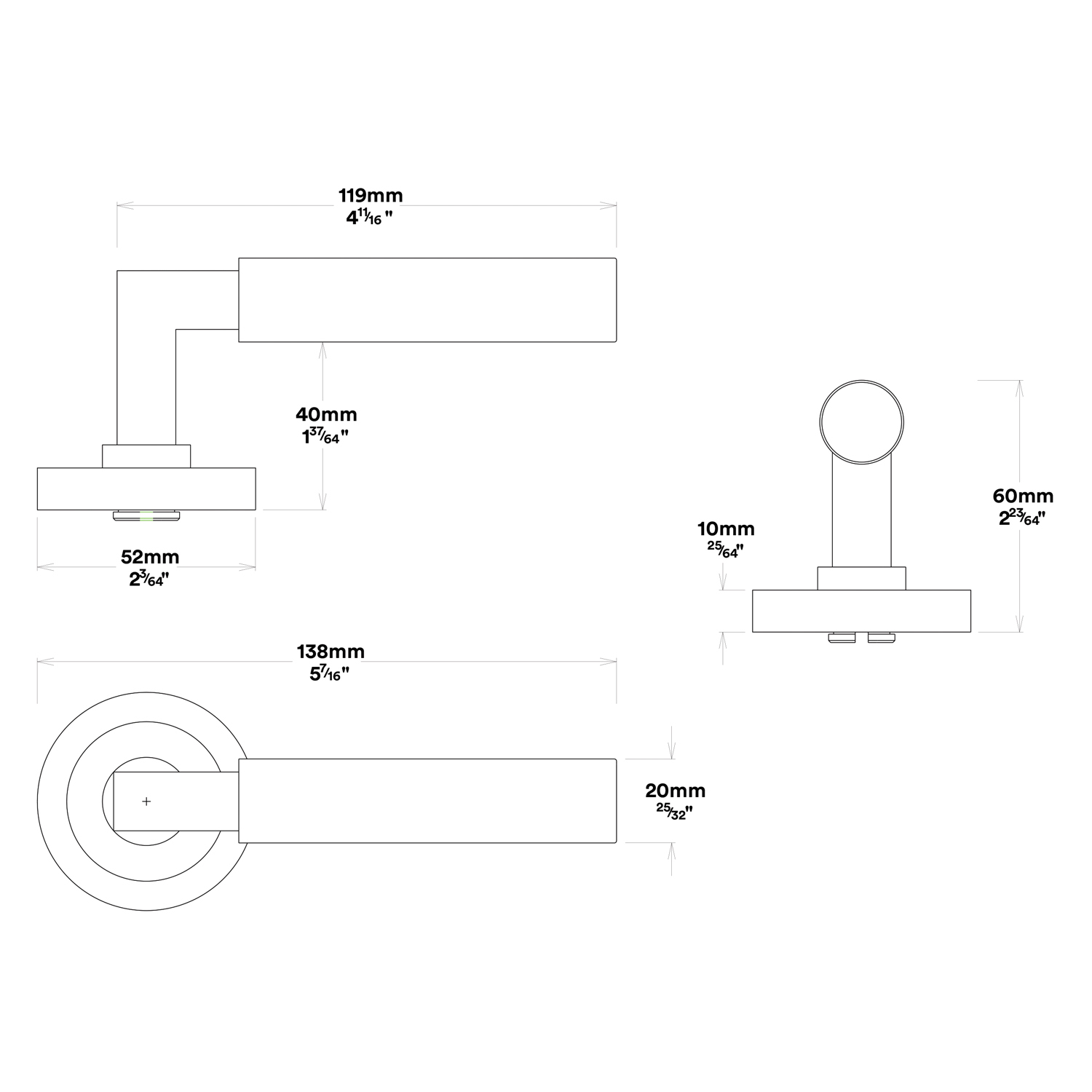

• 2 x Berlin Levers on Round Rose

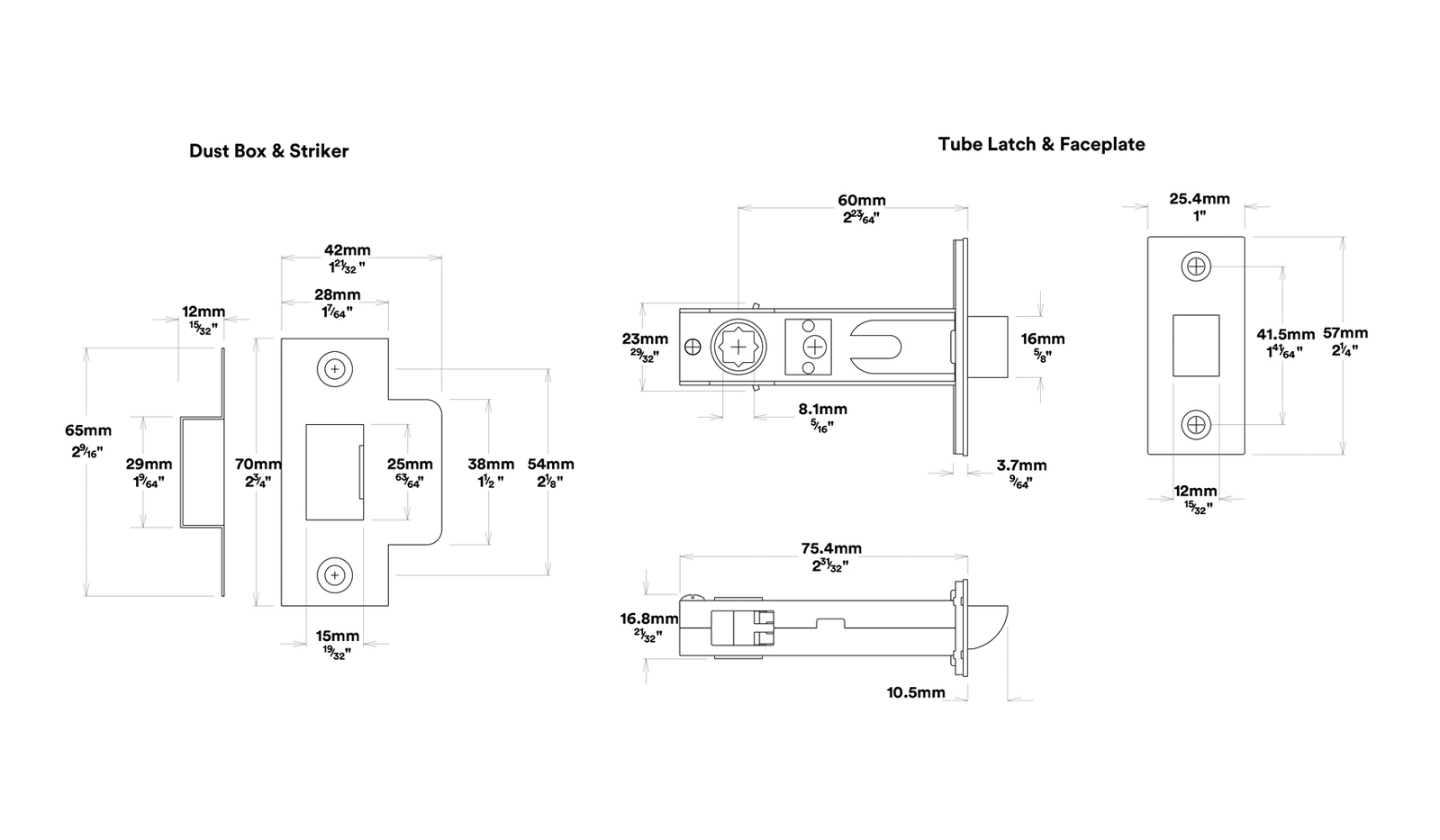

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

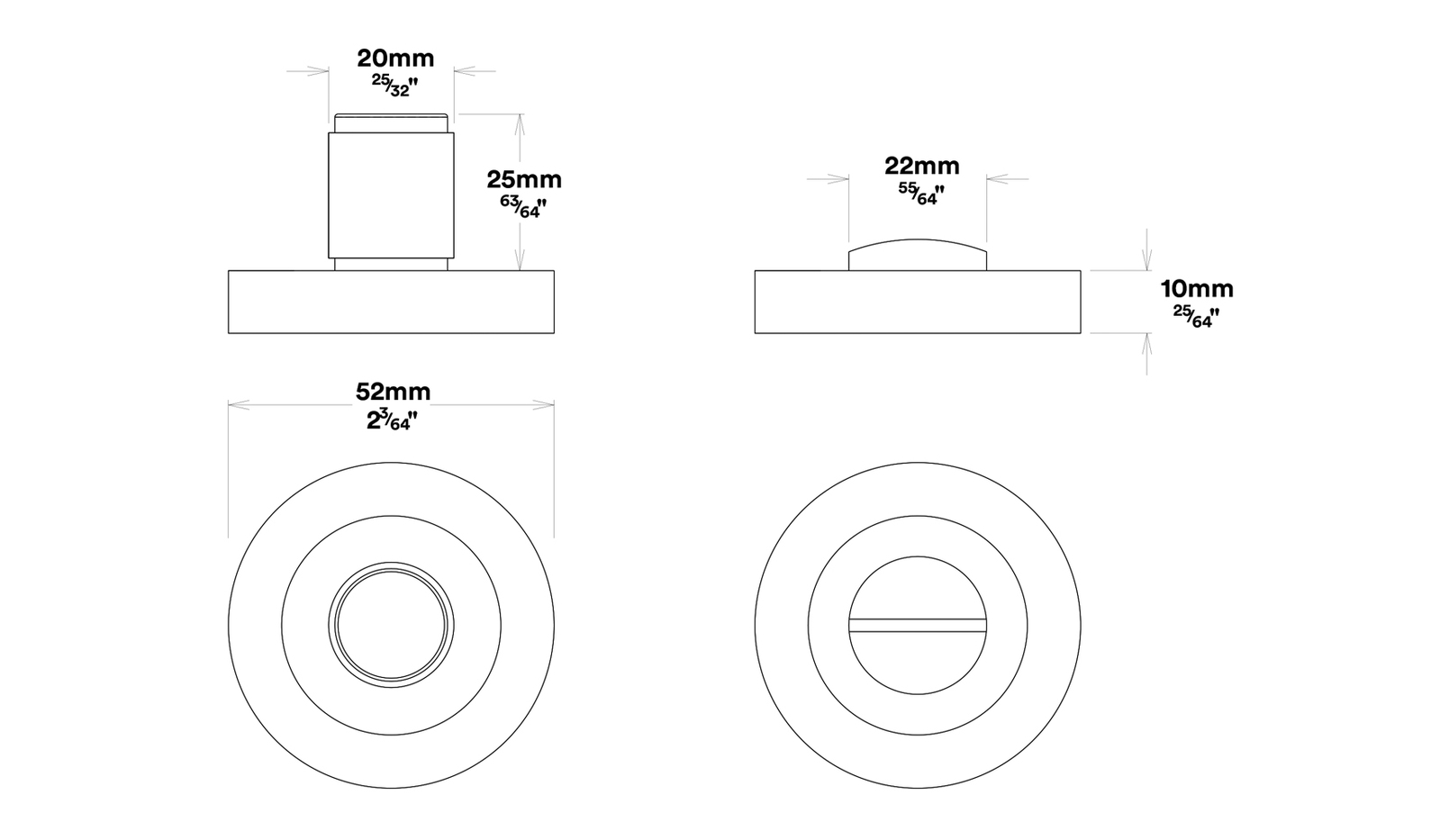

• 1 x Privacy Turn Oval Concealed Fix Round

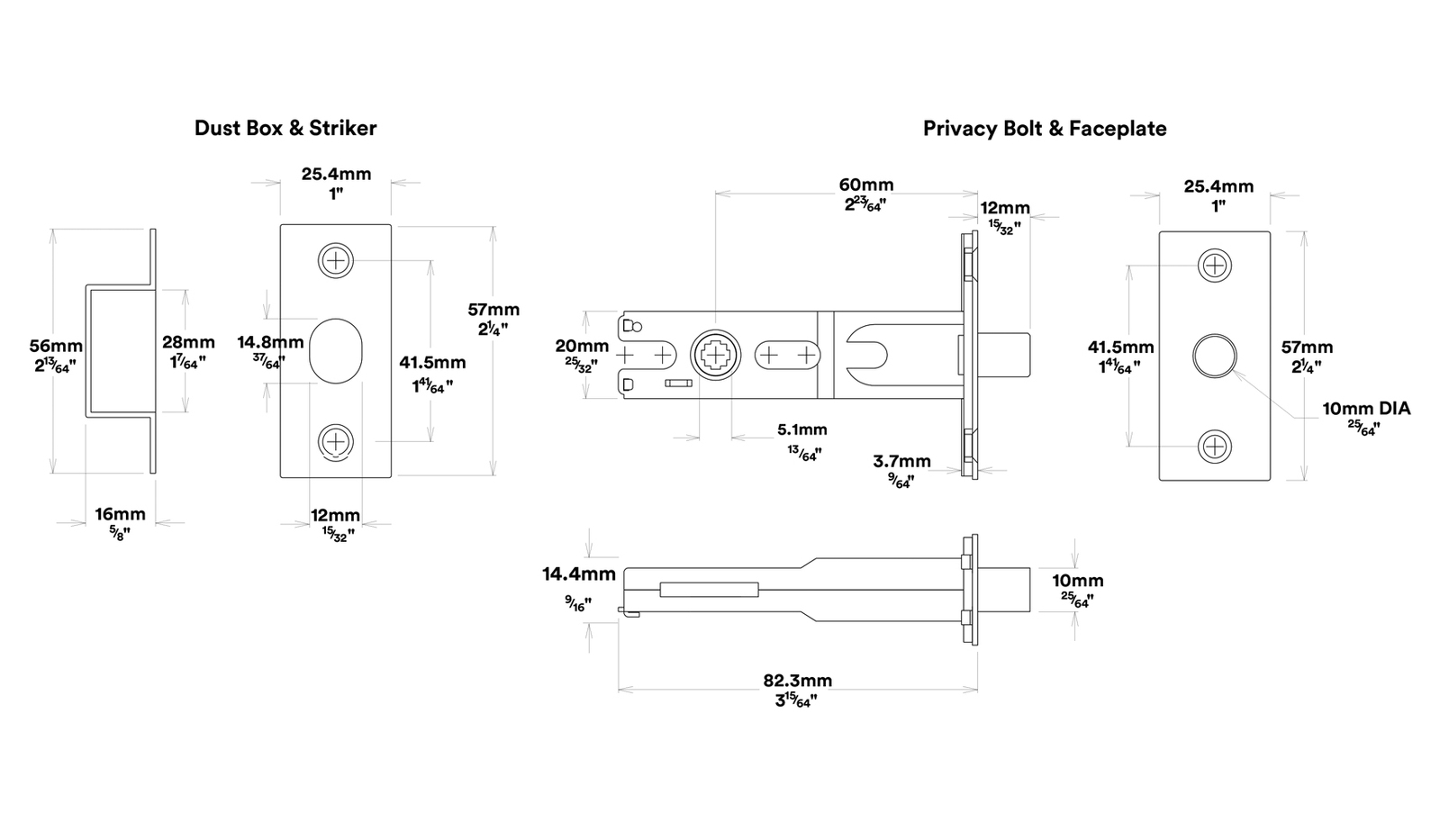

• 1 x Privacy Bolt Round Backset 60mm
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Privacy Spindles
• 39 x Screws
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Berlin lever features a sleek bar-shaped handle, reminiscent of a classic Bauhaus design
• The lever’s clean and unadorned form is visually striking, while its ergonomic handle ensures ease of use
• The Berlin lever is an essential choice for any project that seeks to capture the essence of modern style and practicality
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

Specifications:

• Backplate Diameter: 58mm
• Height: 52mm
• Width: 52mm
• Length: 120mm
• Projection: 60mm
• Centre to Centre: 41.5mm
• Function: Privacy
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
