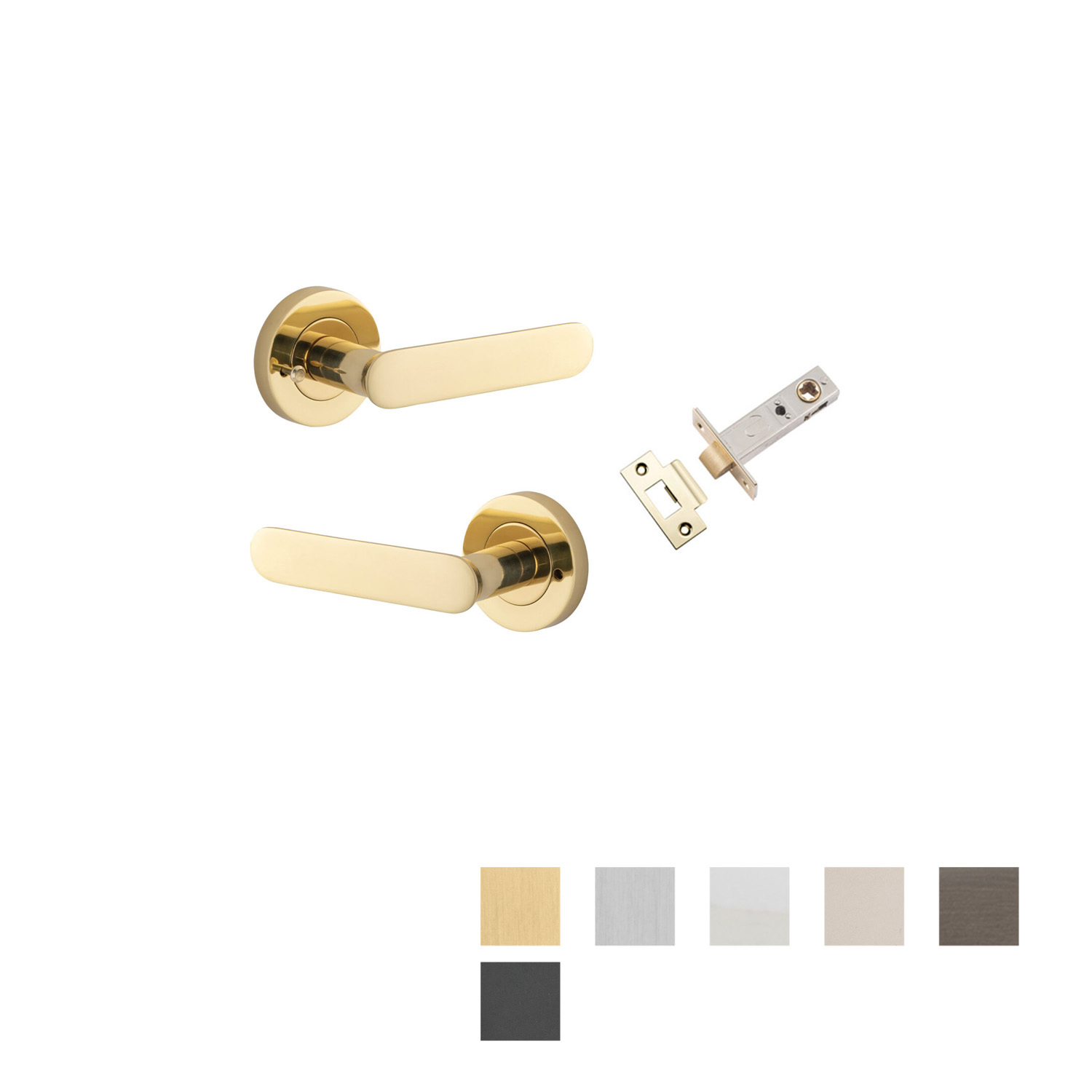

Iver Bronte Door Lever on Round Rose Inbuilt Privacy Kit

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

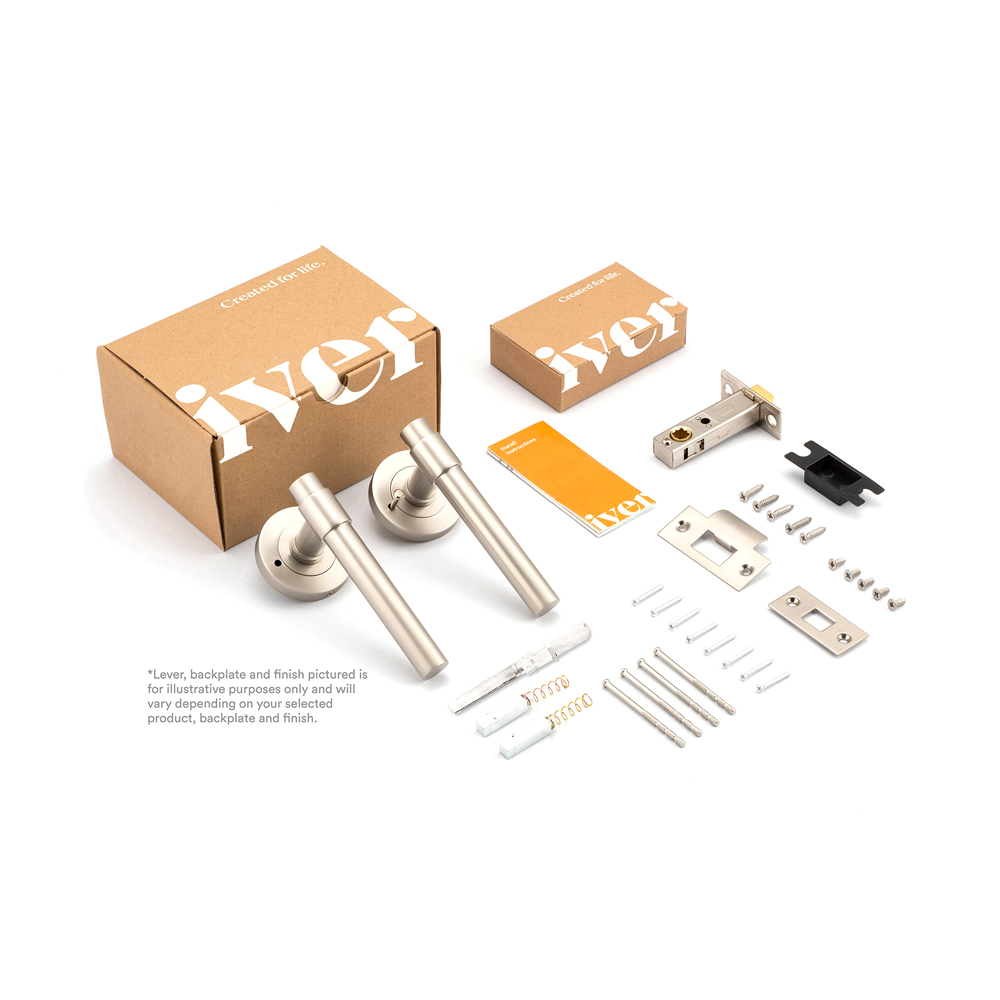

Includes:

• 2 x Bronte Levers on Round Rose with Inbuilt Privacy Pin to suit in

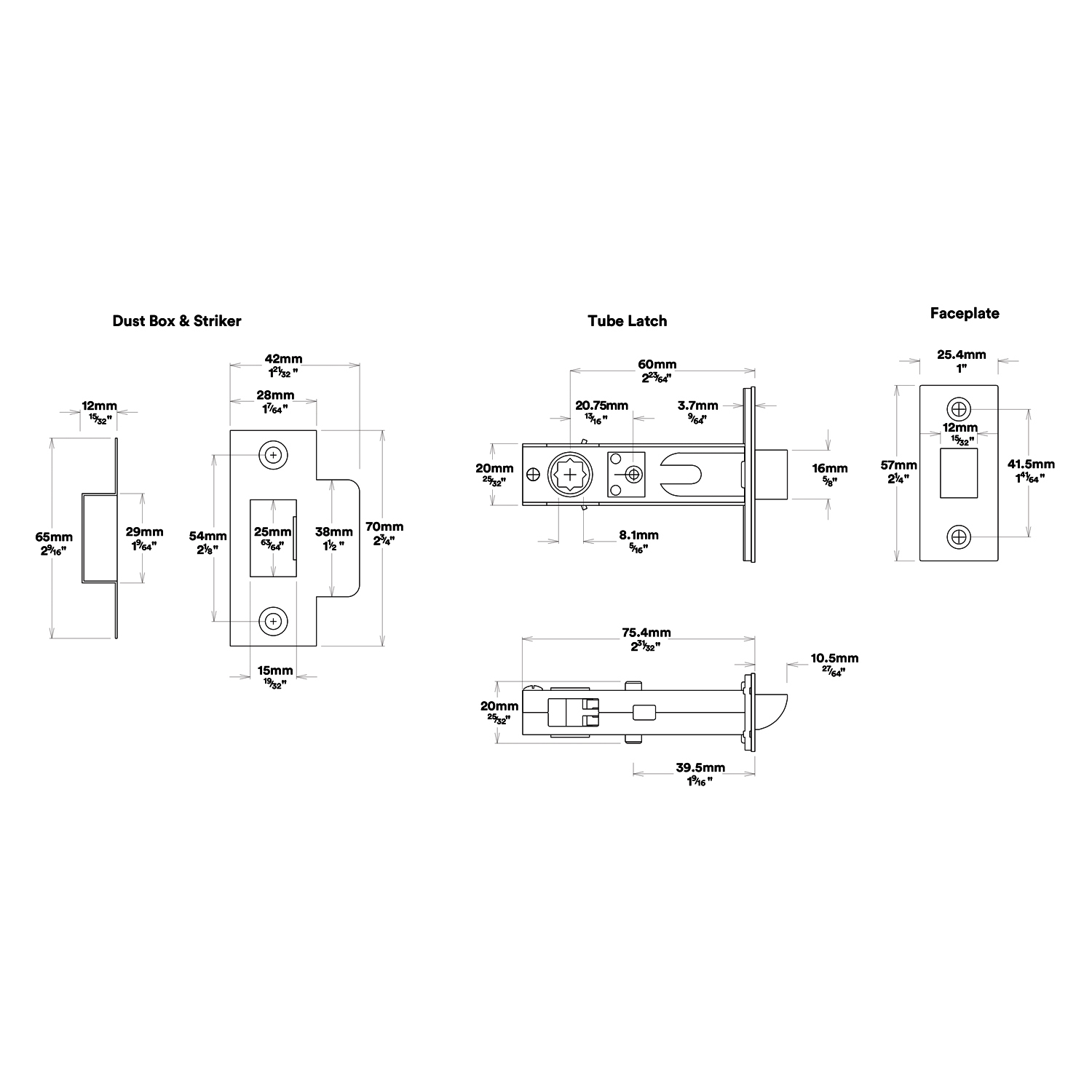

• 1 x Tube Latch Privacy Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 1 x Inbuilt Privacy Spindle
• 22 x Screws
• 1 x Dust Box
• 1 x Allen Key
• 2 x Grub Screws
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms
• Style and function were carefully considered in the design of the Bronte lever
• Contemporary in form, the Bronte features defined edges and a distinct oval shape, gently rounded back to ensure the lever is soft and inviting to the touch
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)

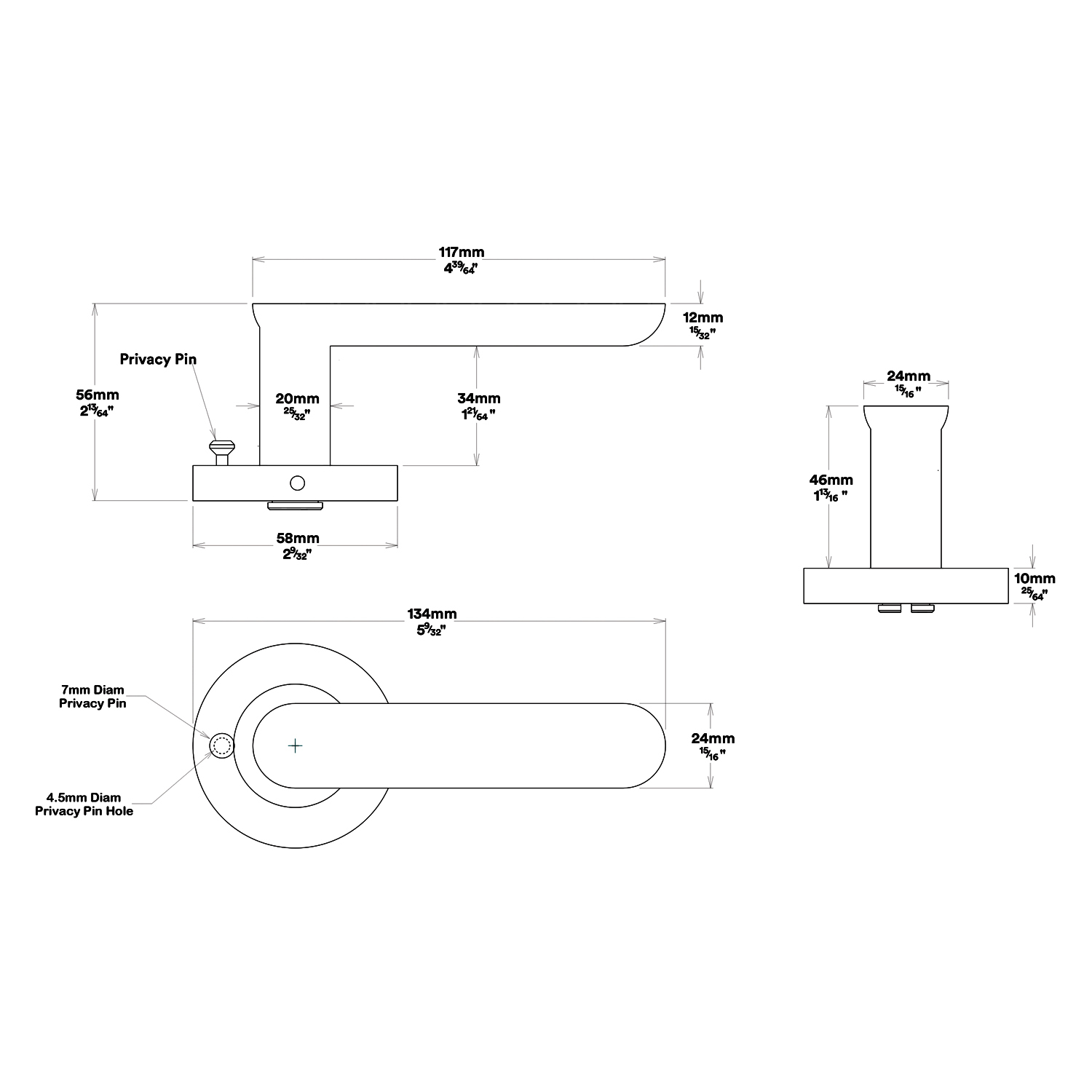

Specifications:

• Backplate Diameter: 58mm
• Height: 58mm
• Width: 58mm
• Length: 117mm
• Projection: 56mm
• Centre to centre: 41.5mm
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Satin Nickel
  • Signature Brass
