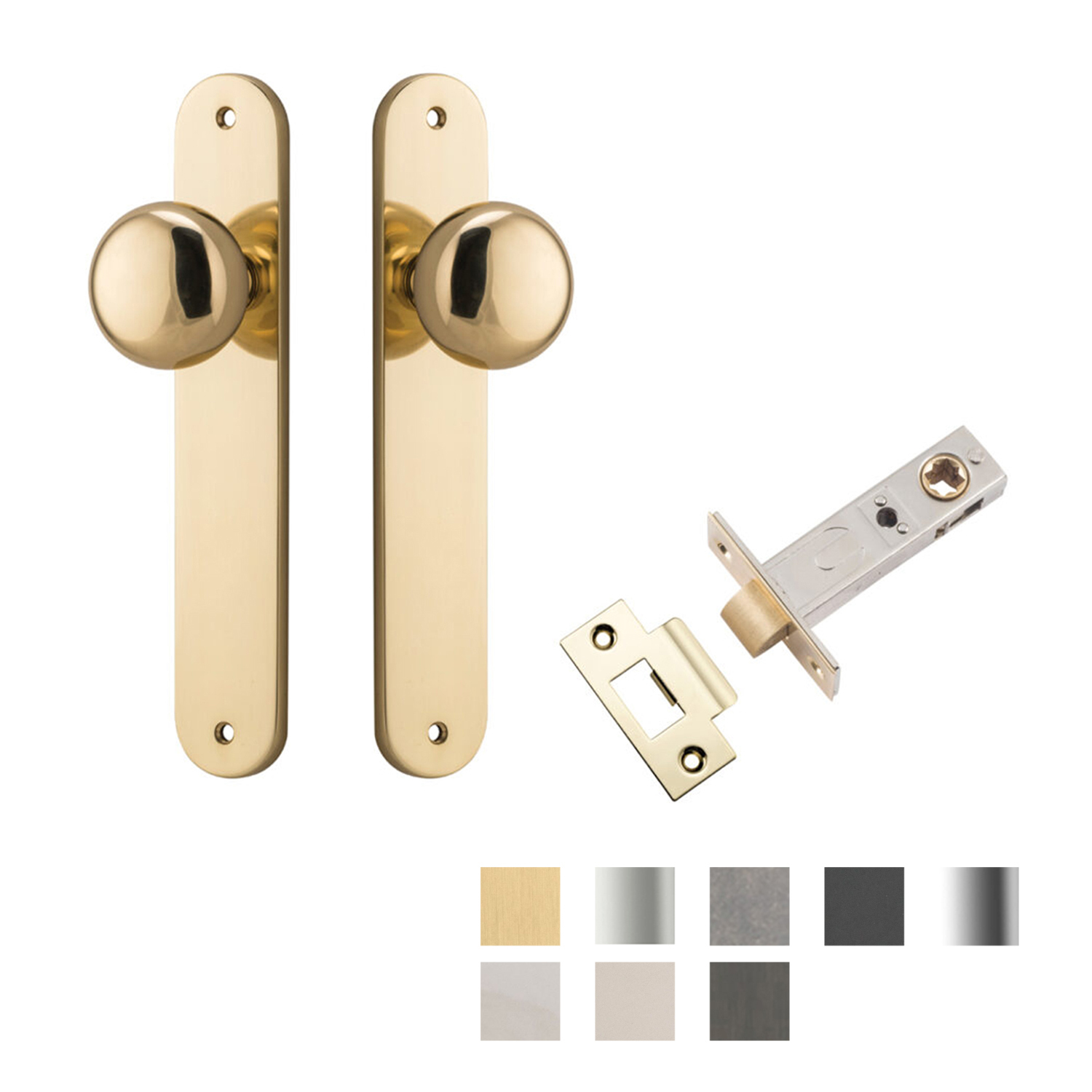

Iver Cambridge Door Knob on Oval Backplate Passage Kit

Passage ideal for interior hallways, closets, and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

  • 2 x Knobs on Oval Backplate

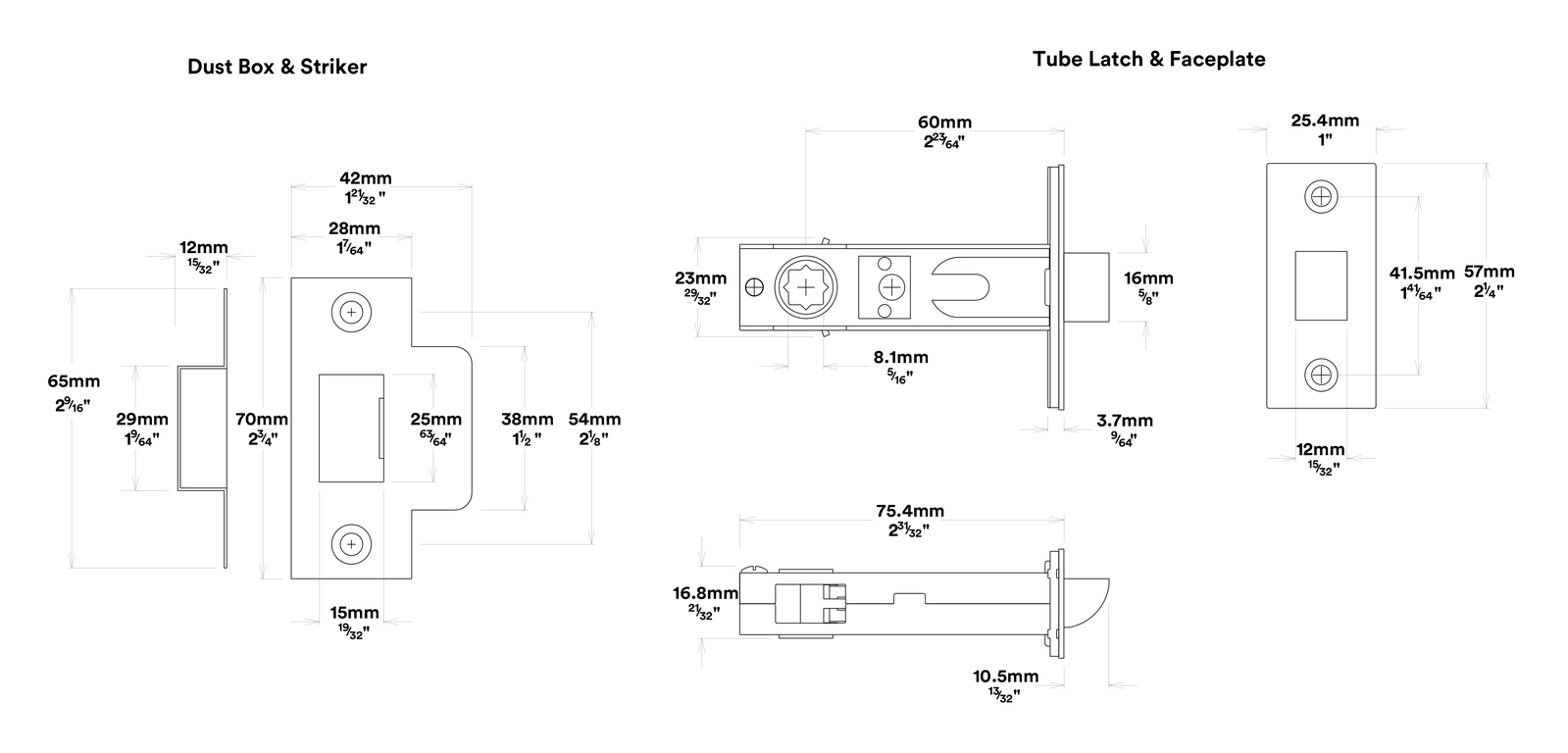

  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 15 x Screws
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 2 x Tie Bolts
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual

Features:

  • The smooth rounded form references the Victorian era
  • Simplicity provides a high level of versatility in the application

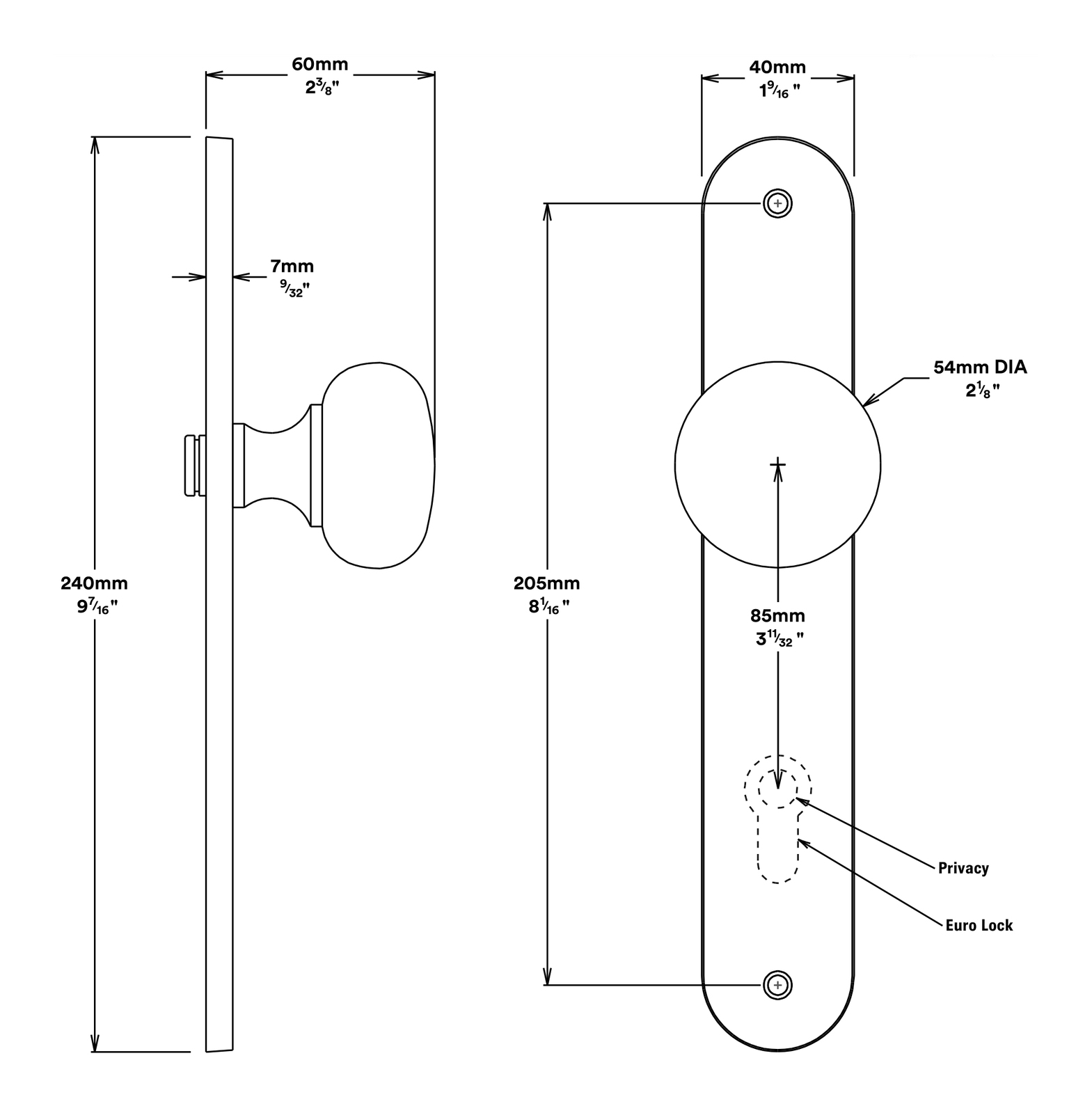

Specifications:

  • Backset: 60mm
  • Height: 240mm
  • Width: 40mm
  • Length: 54mm
  • Projection: 60mm
  • Centre to Centre: 205mm
  • Available Finish:
    • Brushed Brass
    • Brushed Chrome
    • Distressed Nickel
    • Matt Black
    • Polished Brass
    • Polished Chrome
    • Polished Nickel
    • Satin Nickel
    • Signature Brass

Notes:

  • Knobs and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
SKU TRA15334KPASS60_
Brand Iver
