Iver Cambridge Door Knob on Rectangular Backplate Passage Kit

Passage ideal for interior hallways, closets, and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

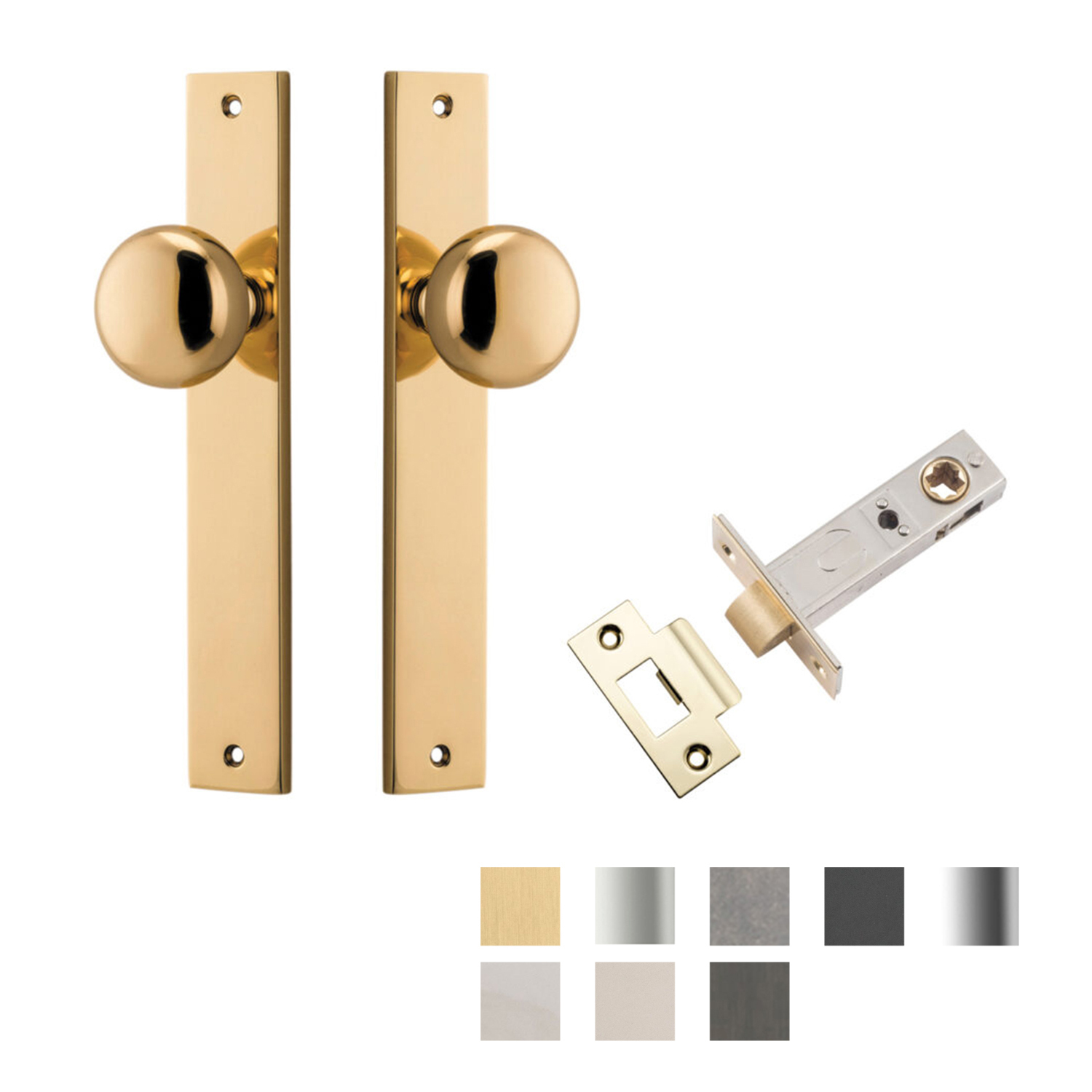

Includes:

• 2 x Knobs on Rectangular Backplate
• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 15 x Screws
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Tie Bolts
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The smooth rounded form references the Victorian era
• Simplicity provides a high level of versatility in the application

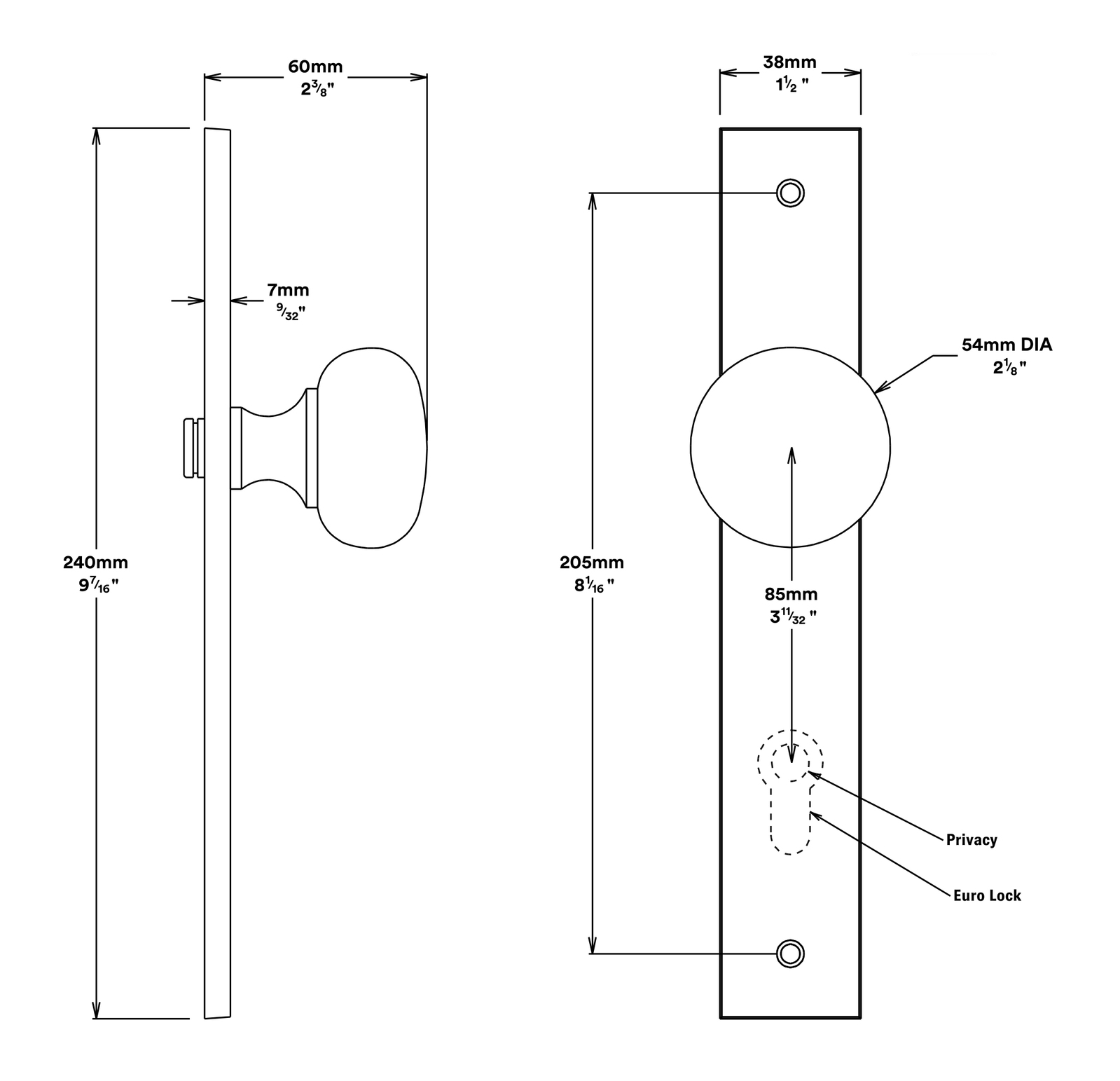

Specifications:

• Backset: 60mm
• Height: 240mm
• Width: 38mm
• Projection: 60mm
• Centre to Centre: 205mm
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Distressed Nickel
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Polished Nickel
  • Satin Nickel
  • Signature Brass

Notes:

• Knobs and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
