Iver Cambridge Door Knob on Stepped Backplate Privacy Kit with Turn

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

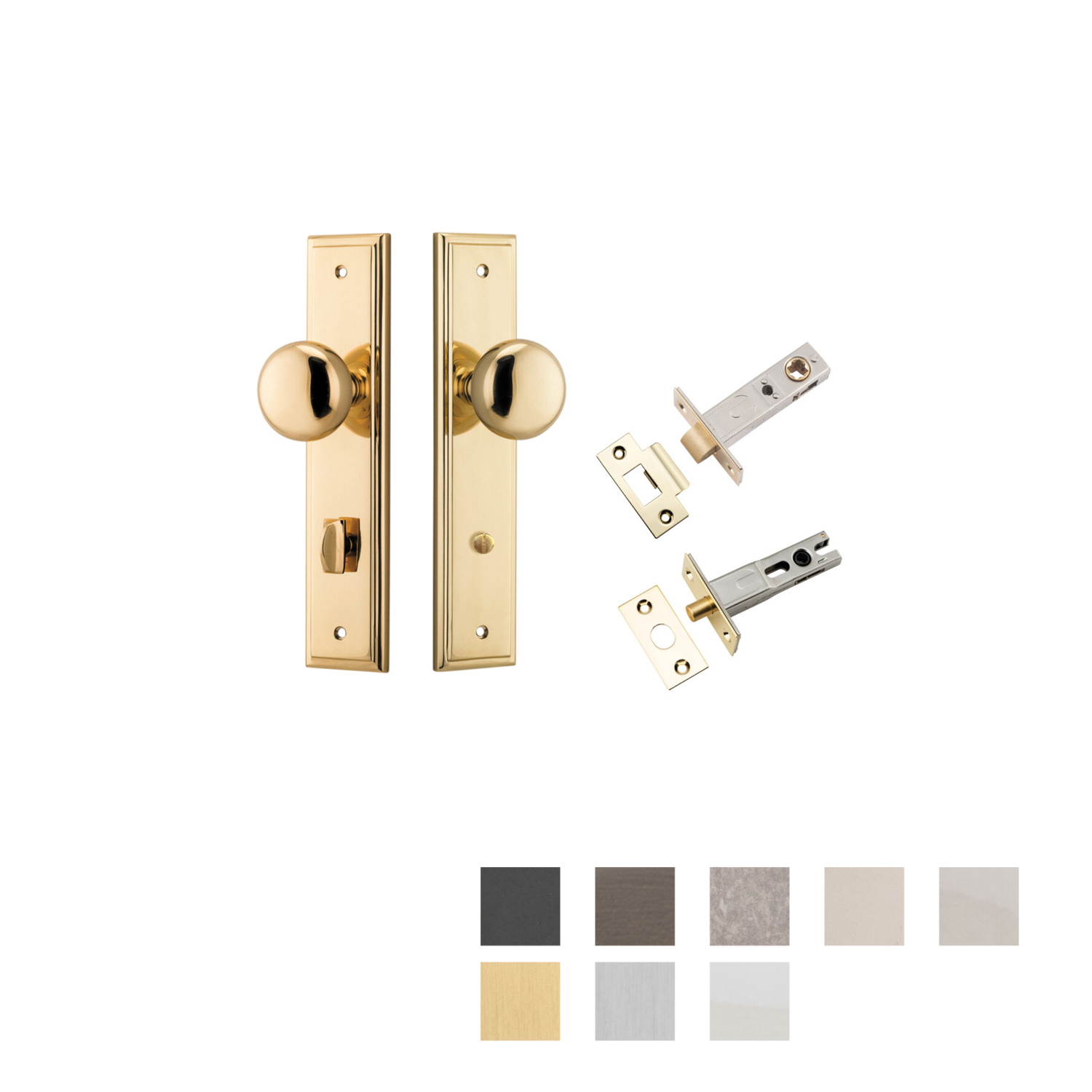

Includes:

• 2 x Knobs on Backplate
• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms
• The smooth rounded form of the Cambridge references the Victorian era, whilst its simplicity still provides a high level of versatility in application
• The Cambridge is perfectly suited to a concealed fix rose or a variety of backplates
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)

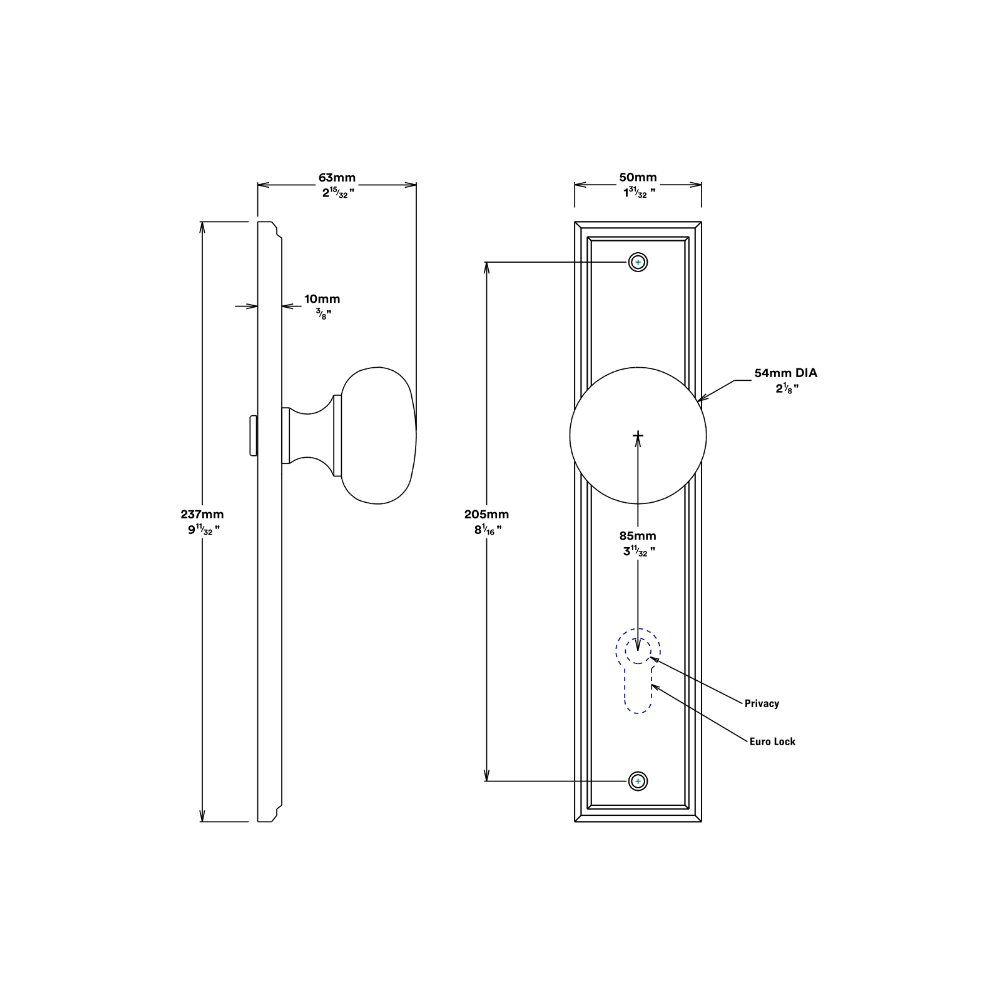

Specifications:

• Backset: 60mm
• Height: 237mm
• Width: 50mm
• Length: 54mm
• Projection: 63mm
• Centre to Centre: 85mm
• Available Finish:
  • Brushed Chrome
  • Distressed Nickel
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Polished Nickel
  • Satin Brass
  • Satin Nickel
  • Signature Brass
