Iver Guildford Door Knob on Round Rose Passage Kit

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

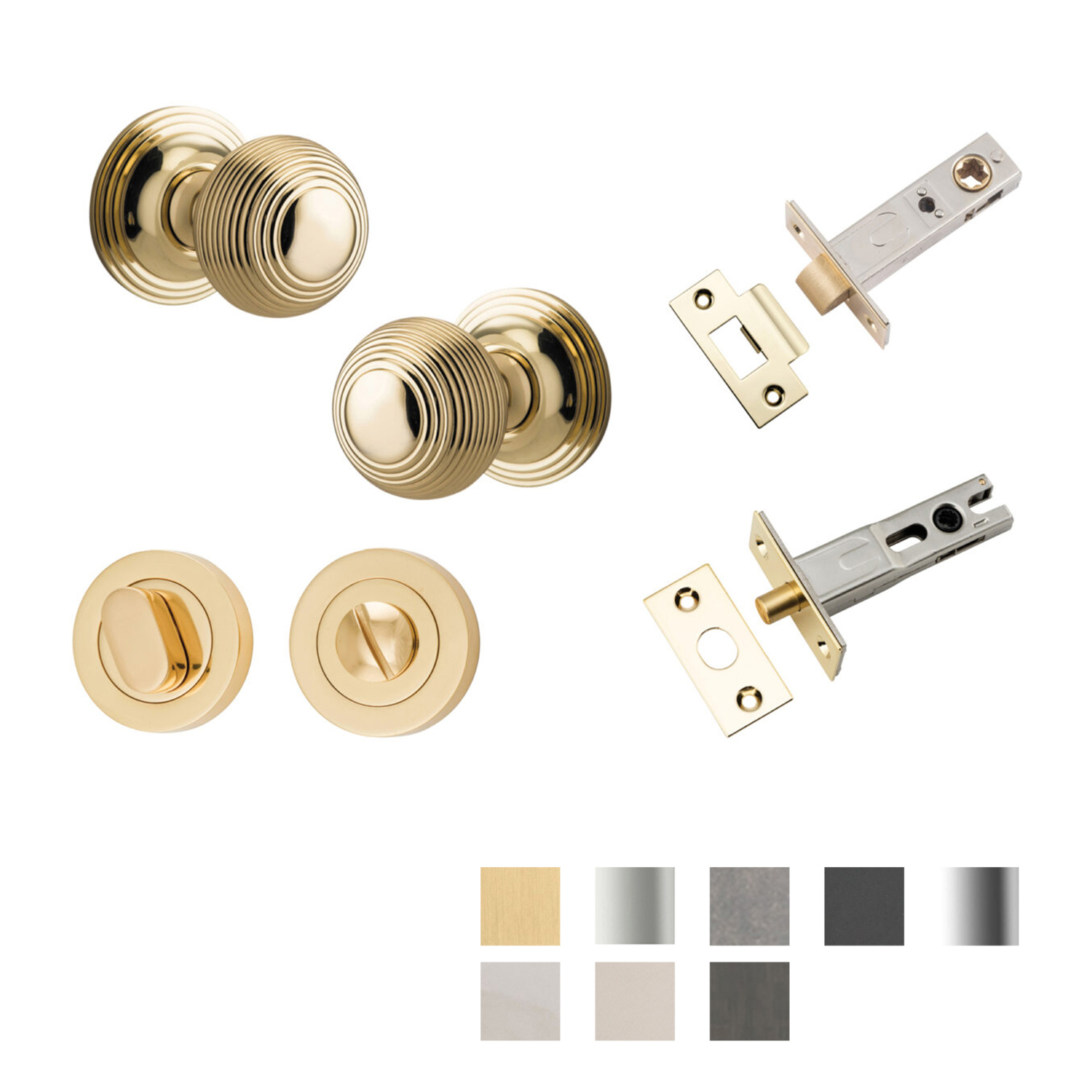

Includes:

• 2 x Knobs on Round Rose

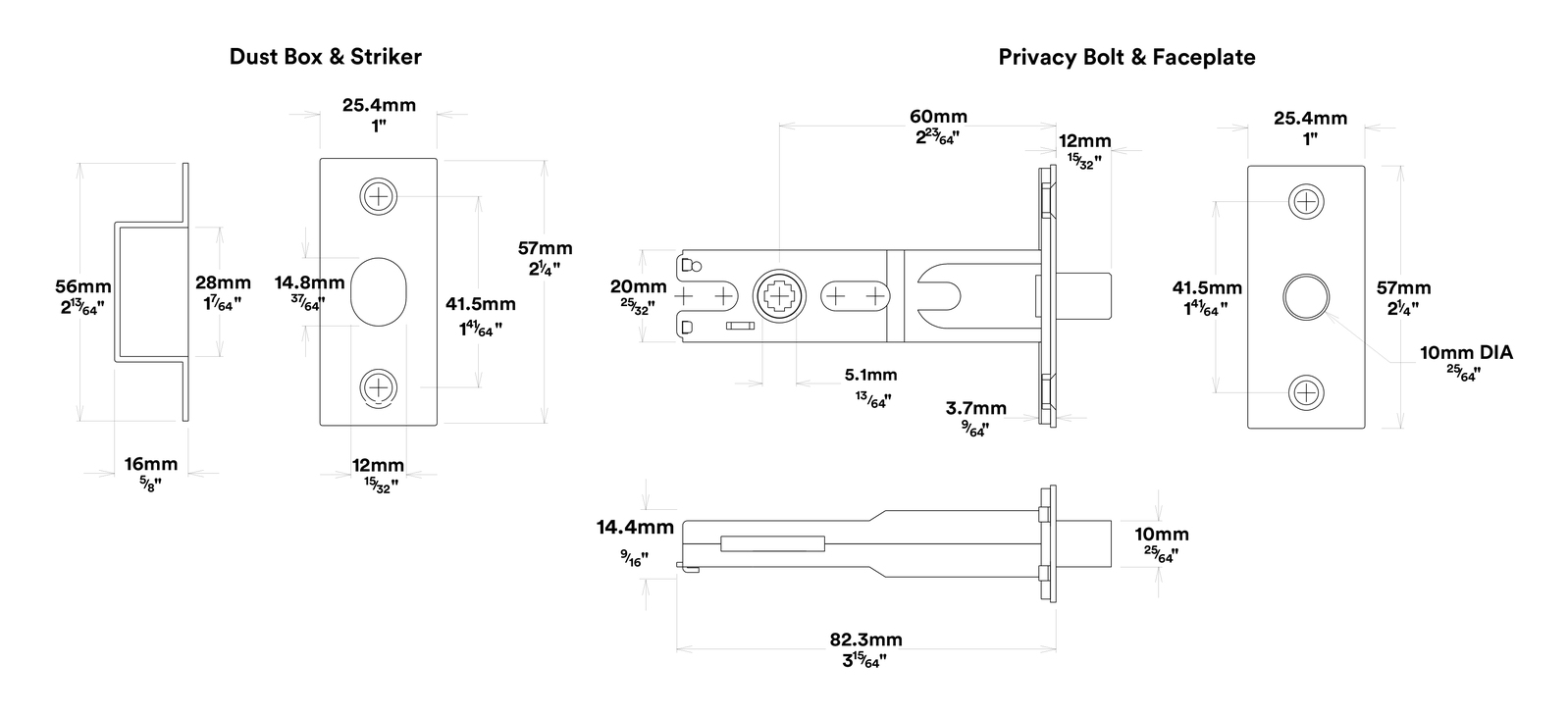

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

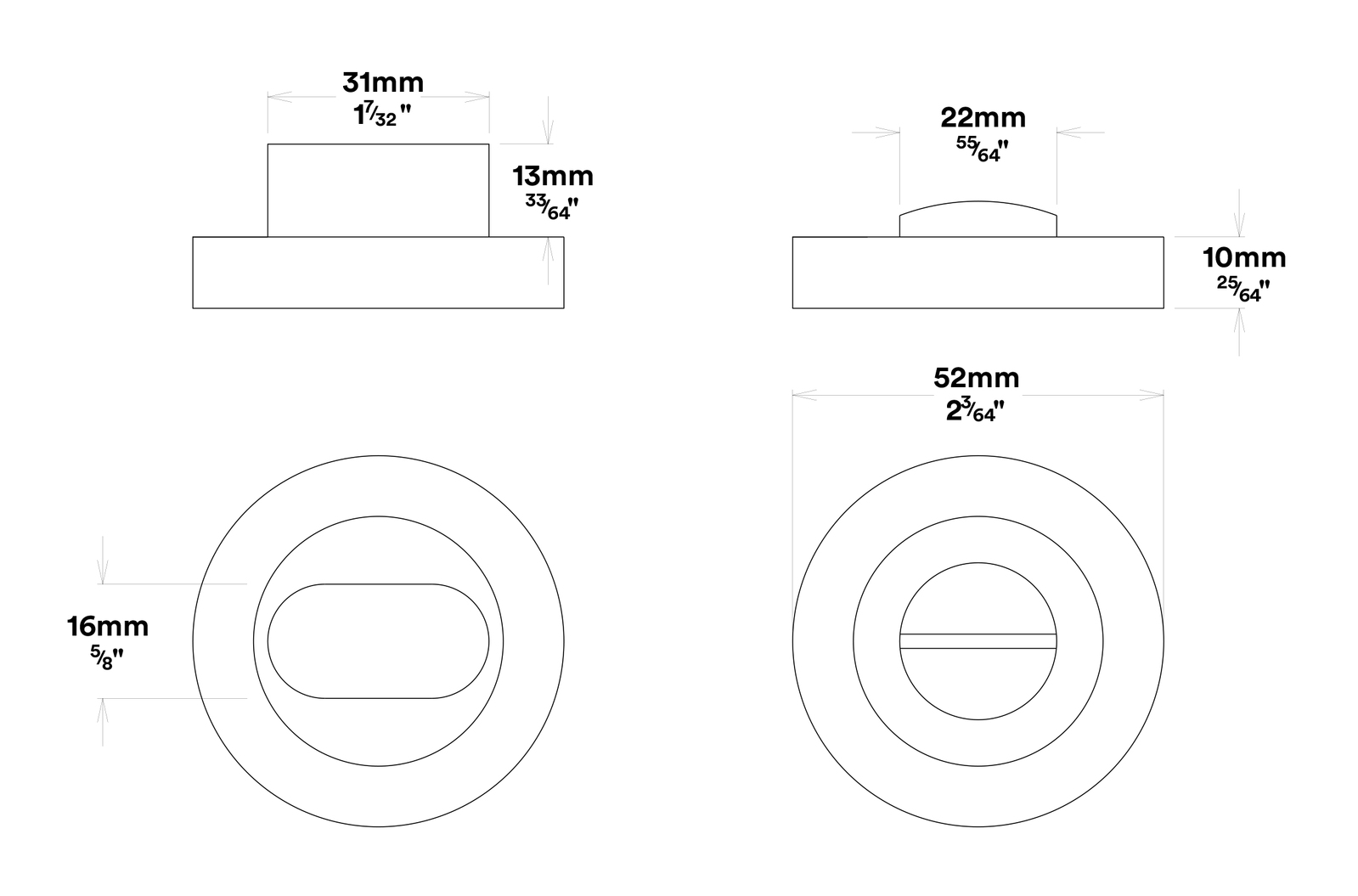

• 1 x Privacy Turn Oval Concealed Fix Round
• 1 x Privacy Bolt Round Backset 60mm
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Privacy Spindles
• 39 x Screws
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Embodied in its reeded form, inspired by designs of the early Georgian era
• The knob perfectly bridges the gap between traditional and contemporary
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

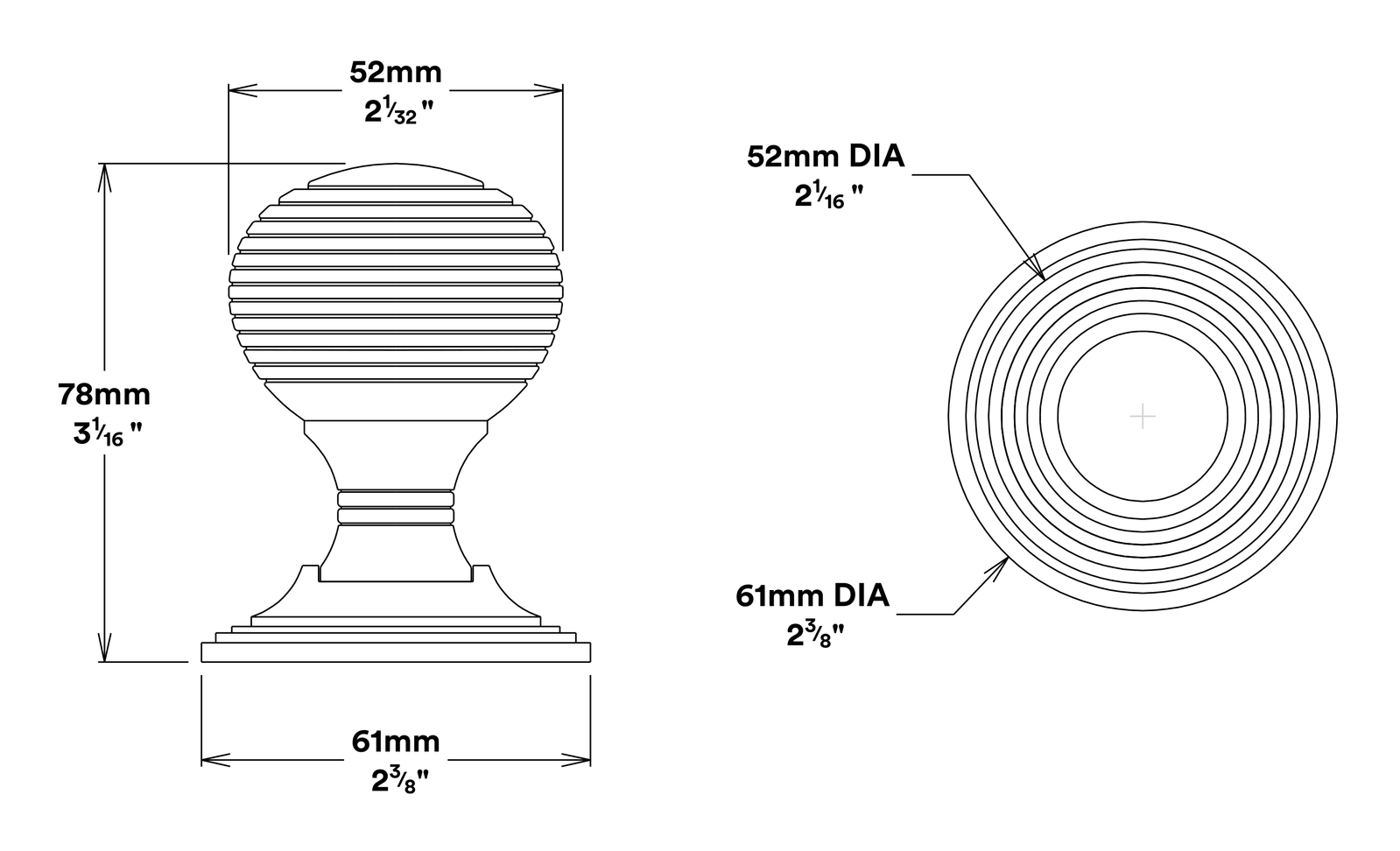

Specifications:

• Backset: 60mm
• Backplate Diameter: 61mm
• Height: 52mm
• Width: 52mm
• Projection: 78mm
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Distressed Nickel
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Polished Nickel
  • Satin Nickel
  • Signature Brass

Notes:

• Knobs and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
