Iver Helsinki Door Pull Handle Entrance Kit
20710KENTR60KK

Entrance Lock is defined as a lock where the unlocked by key from outside when outer lever is locked by turn-button on inside lever. Inside lever always unlocked.

Entrance Lock Function - Outisde key unlocks outside knob, inside knob free at all times, push button locks outside knob.

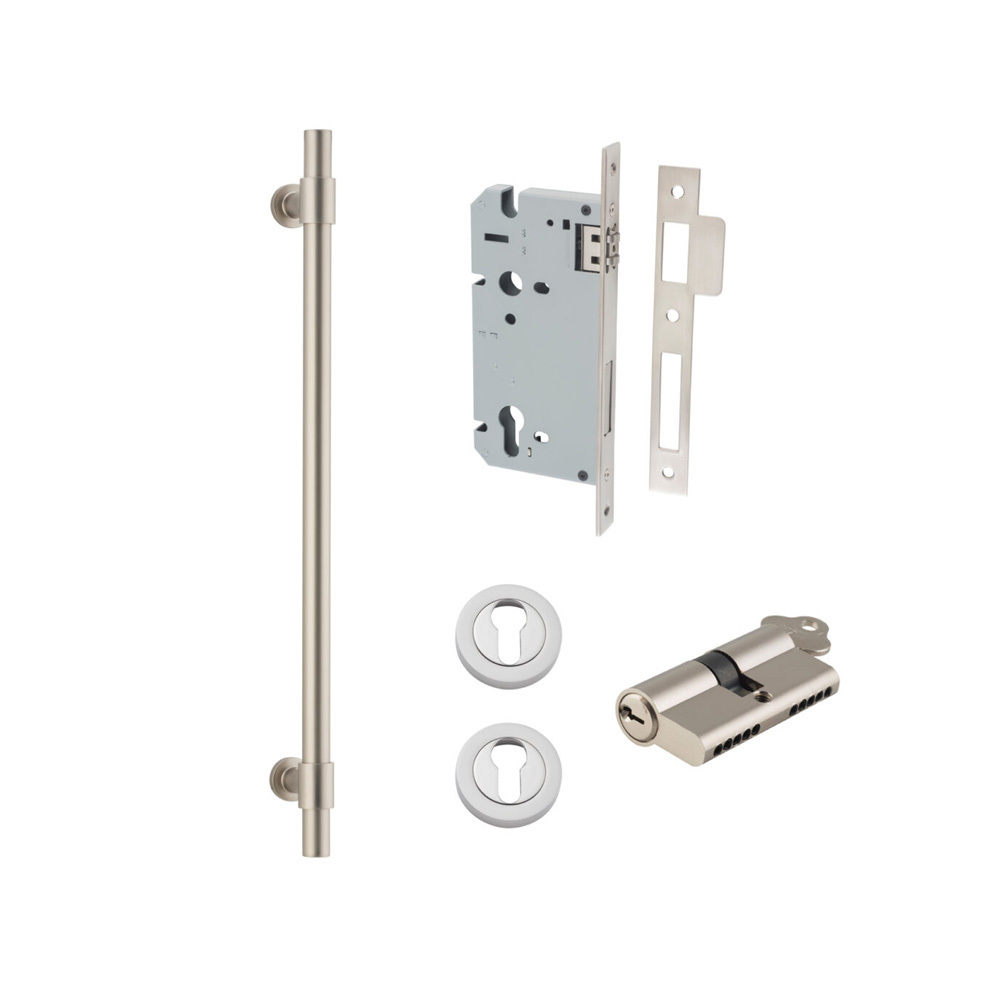

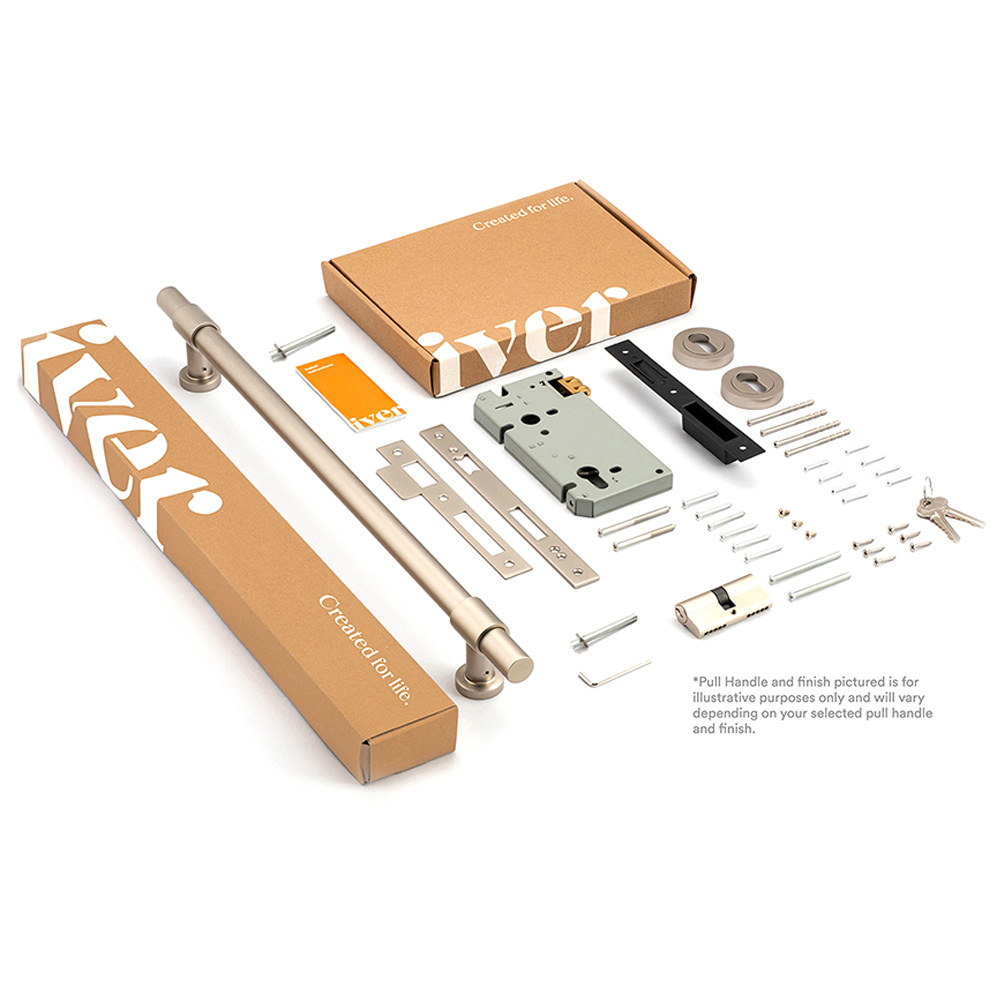

Includes:

• 1 x Pull Handle 450mm

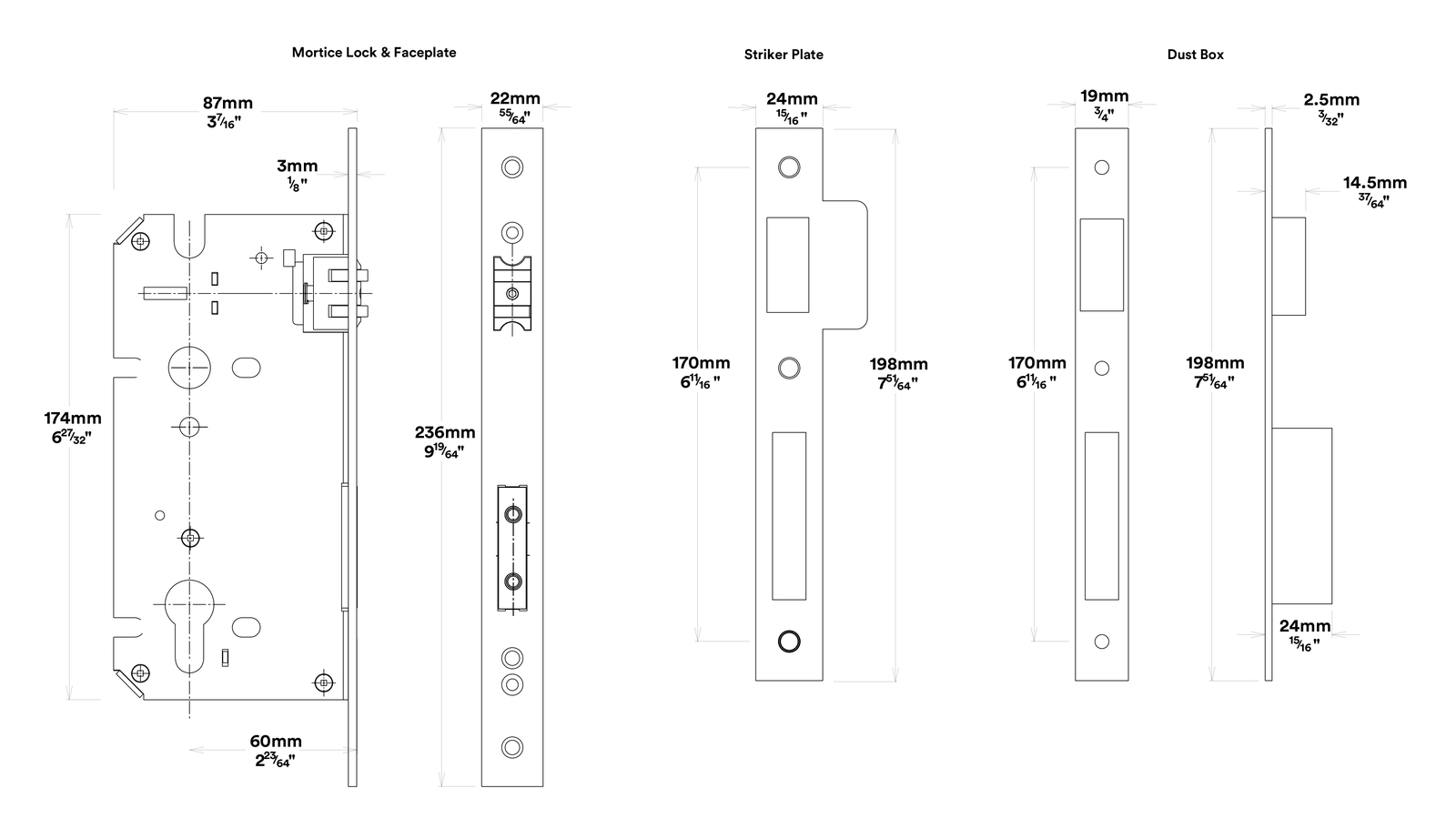

• 1 x Euro Mortice Lock Roller CTC 85mm Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 2 x Euro Escutcheon Concealed Fix Round

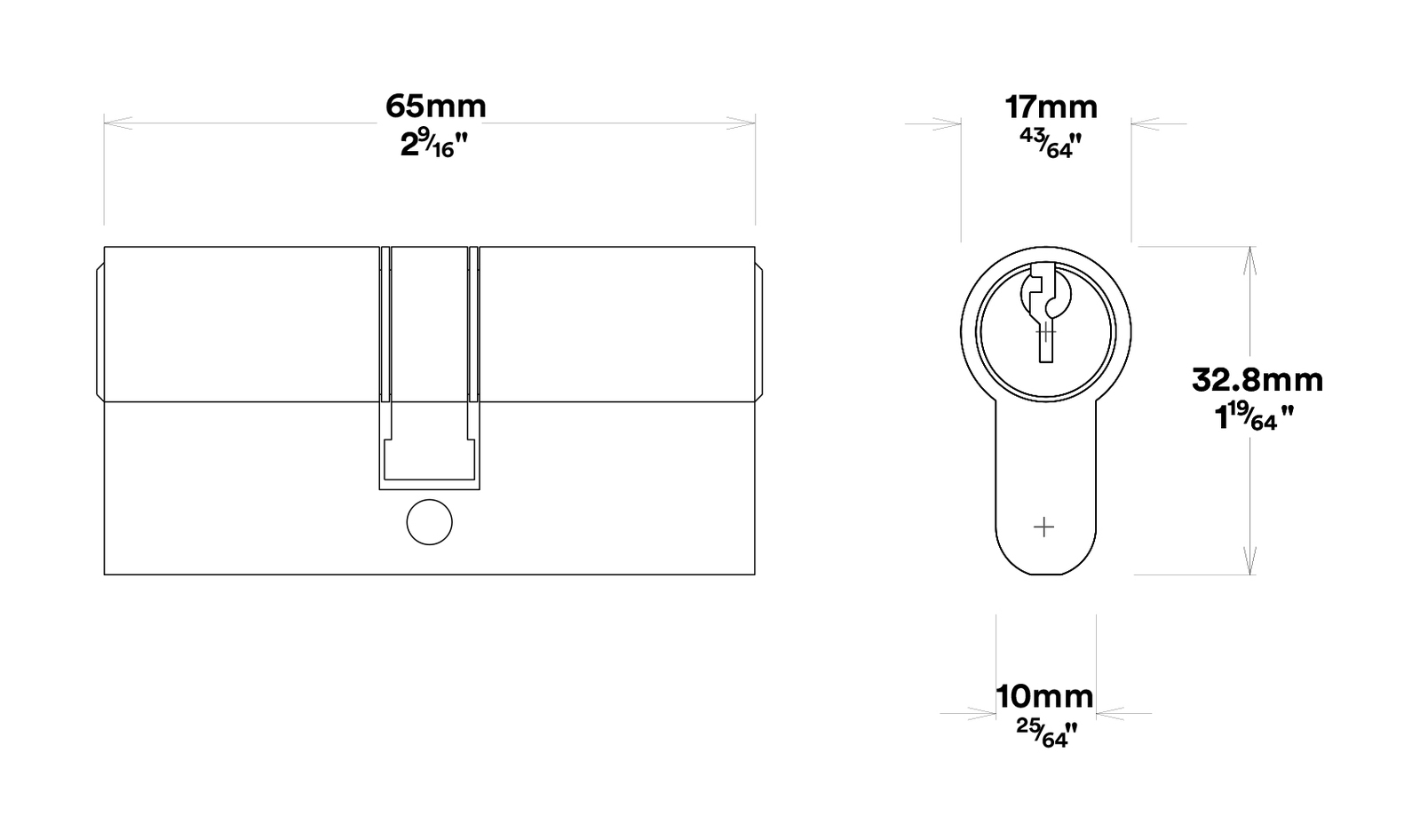

• 1 x Euro Cylinder 5 Pin Dual Function Key/Key
• 2 x Keys
• 2 x Concealed Fix Spindle*
• 32 x Screws
• 1 x Dust Box
• 2 x Studs
• 1 x Allen Key
• 2 x Grub Screws
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Helsinki pull handle’s modern design makes it the perfect statement piece, featuring a striking industrial accent at each end of a solid bar pull
• Sit comfortably amongst contemporary minimalist projects
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)
• Concealed fix product, this product includes all components and fixings required to install on your door for single or back to back pull handle applications
• Kits include one pull handle only, a second must be purchased separately

Specifications:

• Backset: 60mm
• Backplate Diameter: 35mm
• Width: 22mm
• Length: 560mm
• Projection: 66mm
• Centre to centre: 450mm
• Finish: Satin Nickel
