Iver Oslo Door Lever on Round Rose Inbuilt Privacy Kit

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

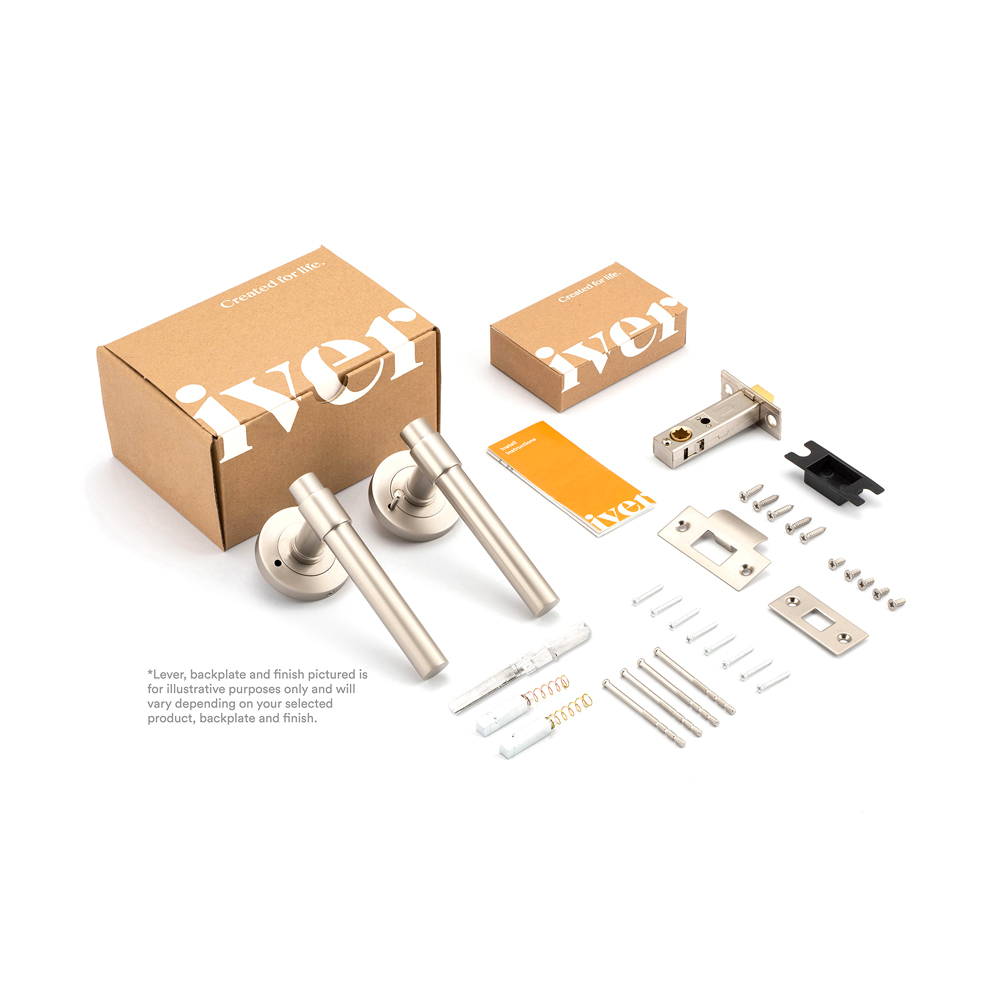

Includes:

• 2 x Levers on Round Rose with Inbuilt Privacy Pin
• 1 x Tube Latch Privacy Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 1 x Inbuilt Privacy Spindle
• 22 x Screws
• 1 x Dust Box
• 1 x Allen Key
• 2 x Grub Screws
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms
• The Oslo lever with inbuilt privacy lock is fire-rated to 2 hours making it the perfect option for any commercial project
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)
• Successfully tested to meet highest durability rating (500,000 cycles)

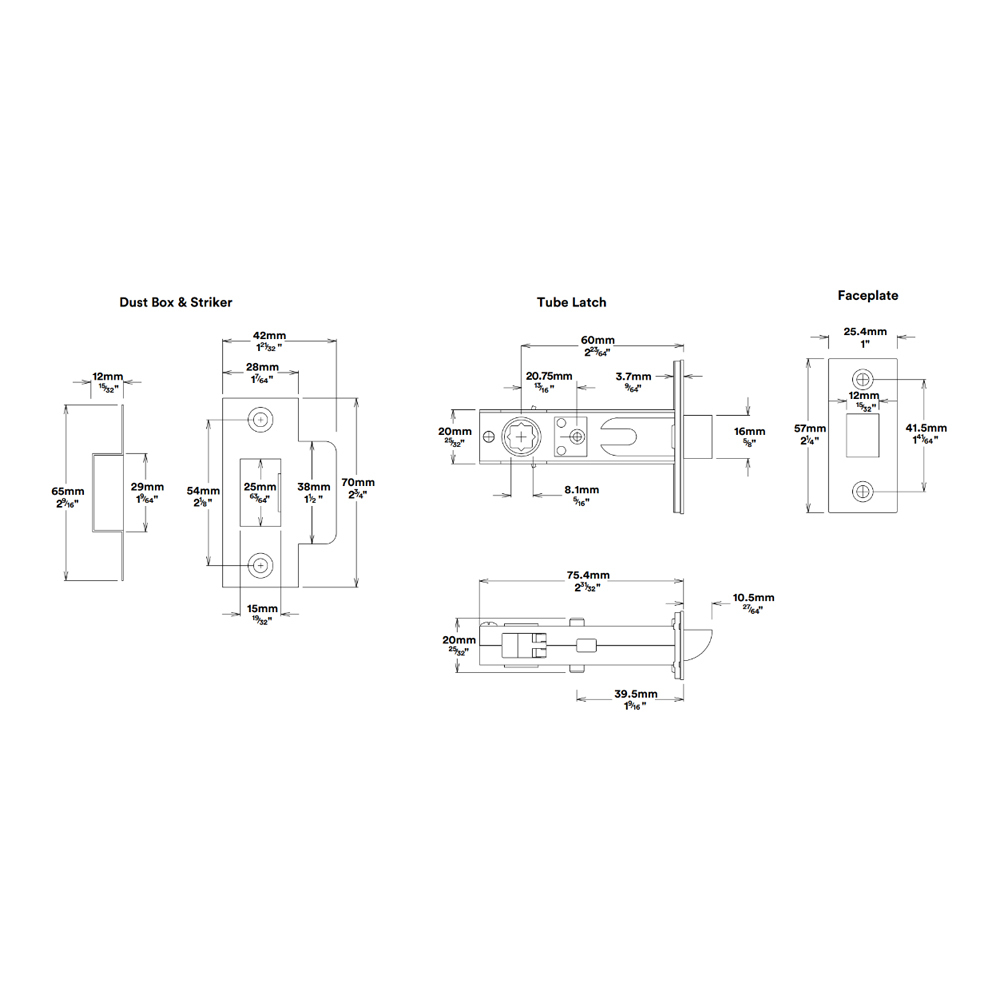

Specifications:

• Backplate Diameter: 58mm
• Height: 58mm
• Width: 58mm
• Length: 118mm
• Projection: 57mm
• Centre to Centre: 41.5mm
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Distressed Nickel
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Polished Nickel
  • Satin Nickel
  • Signature Brass
