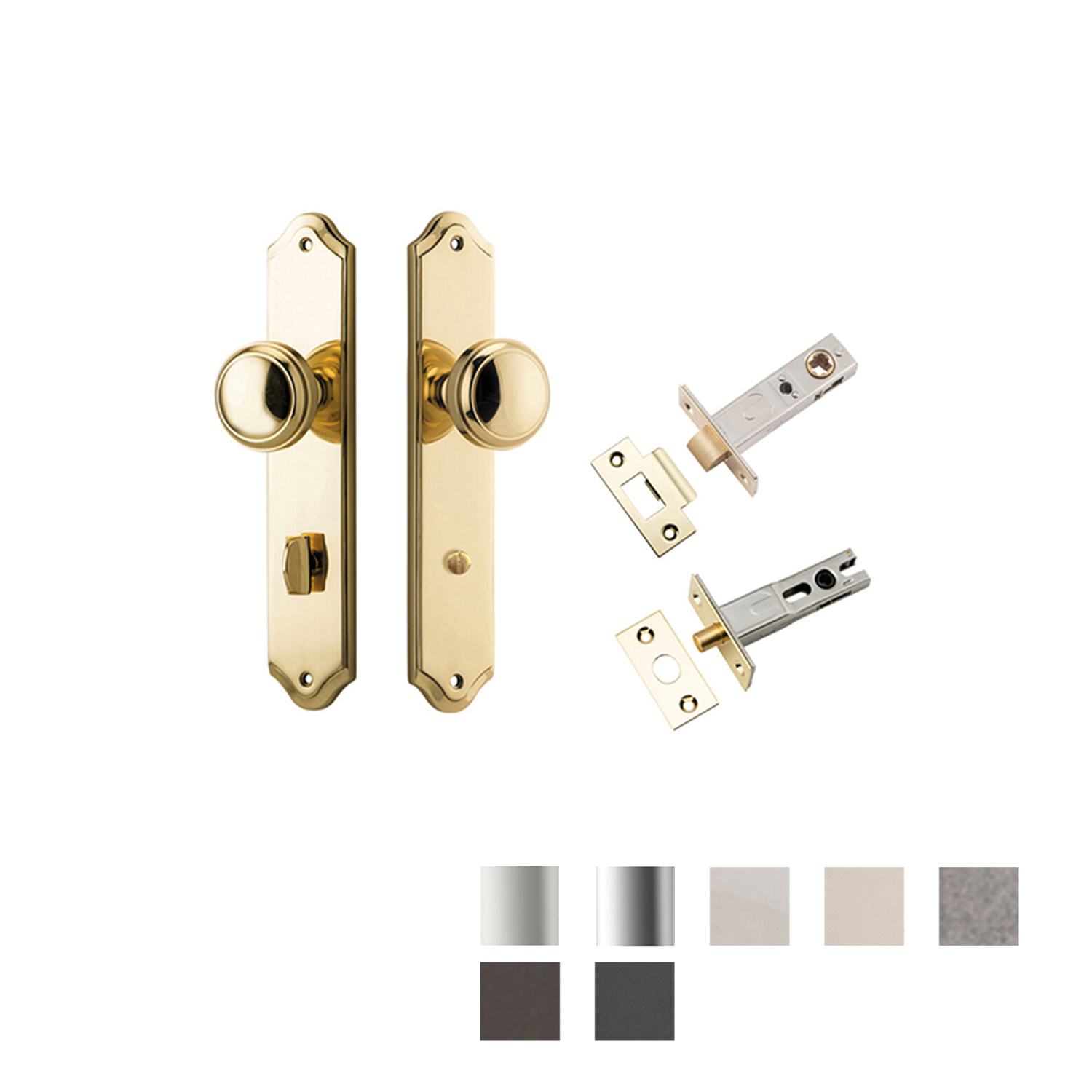

Iver Paddington Door Knob on Shouldered Backplate Privacy Kit with Turn

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

  • 2 x Knobs on Backplates
  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate

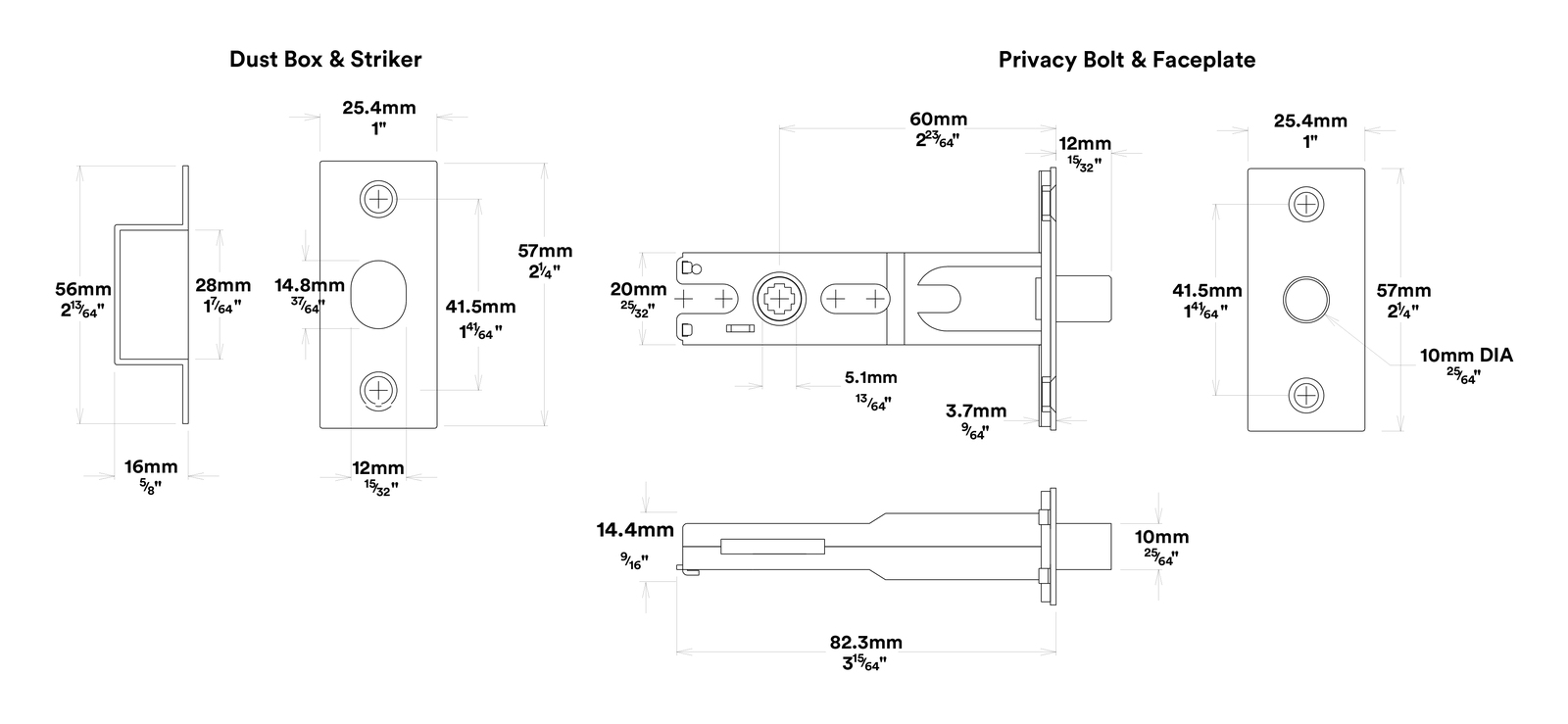

  • 1 x Striker Plate
  • 1 x Privacy Bolt Round Backset 60mm
  • 20 x Screws
  • 2 x Tie Bolts

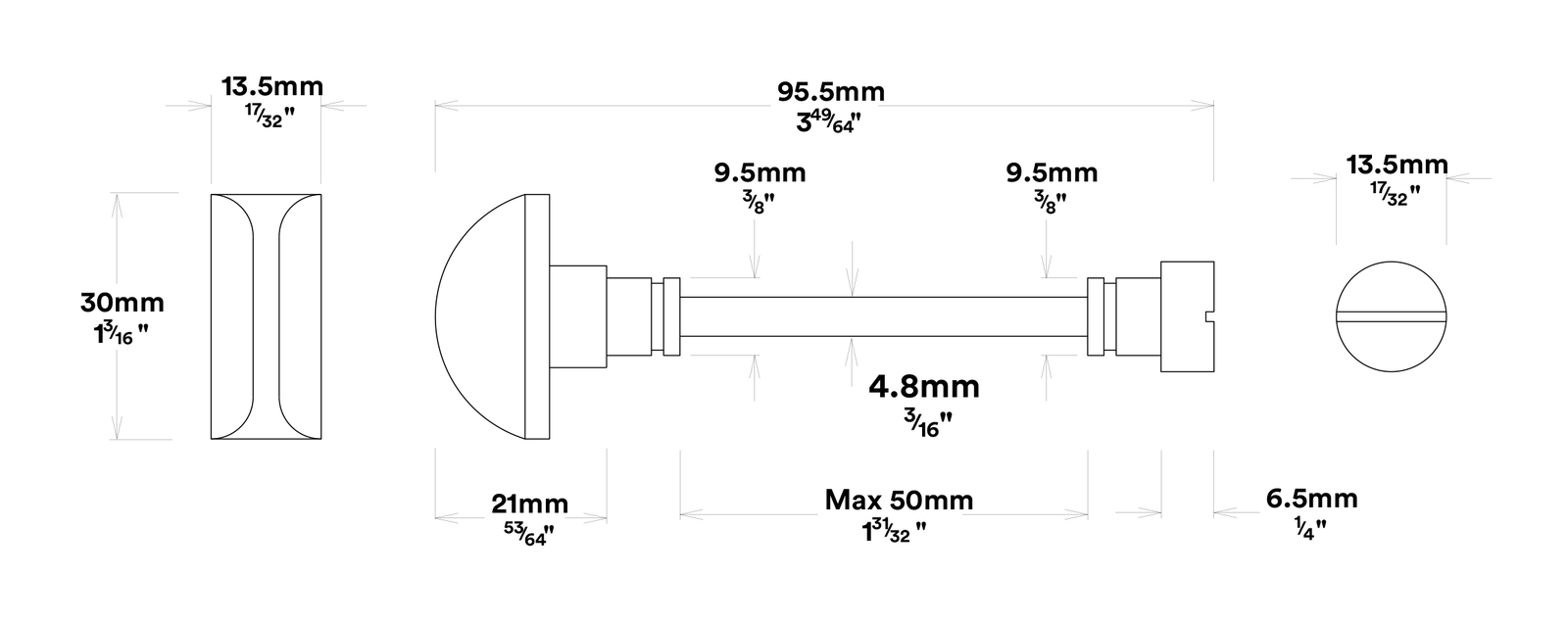

  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 1 x Privacy Adaptor
  • 2 x Dust Boxes
  • 1 x Drill Template
  • 1 x Instruction Manual

Features:

  • Provides a subtle nod to its English roots with a refined, elegant appearance, a versatile knob that is perfectly suited to a concealed fix rose or several different backplates

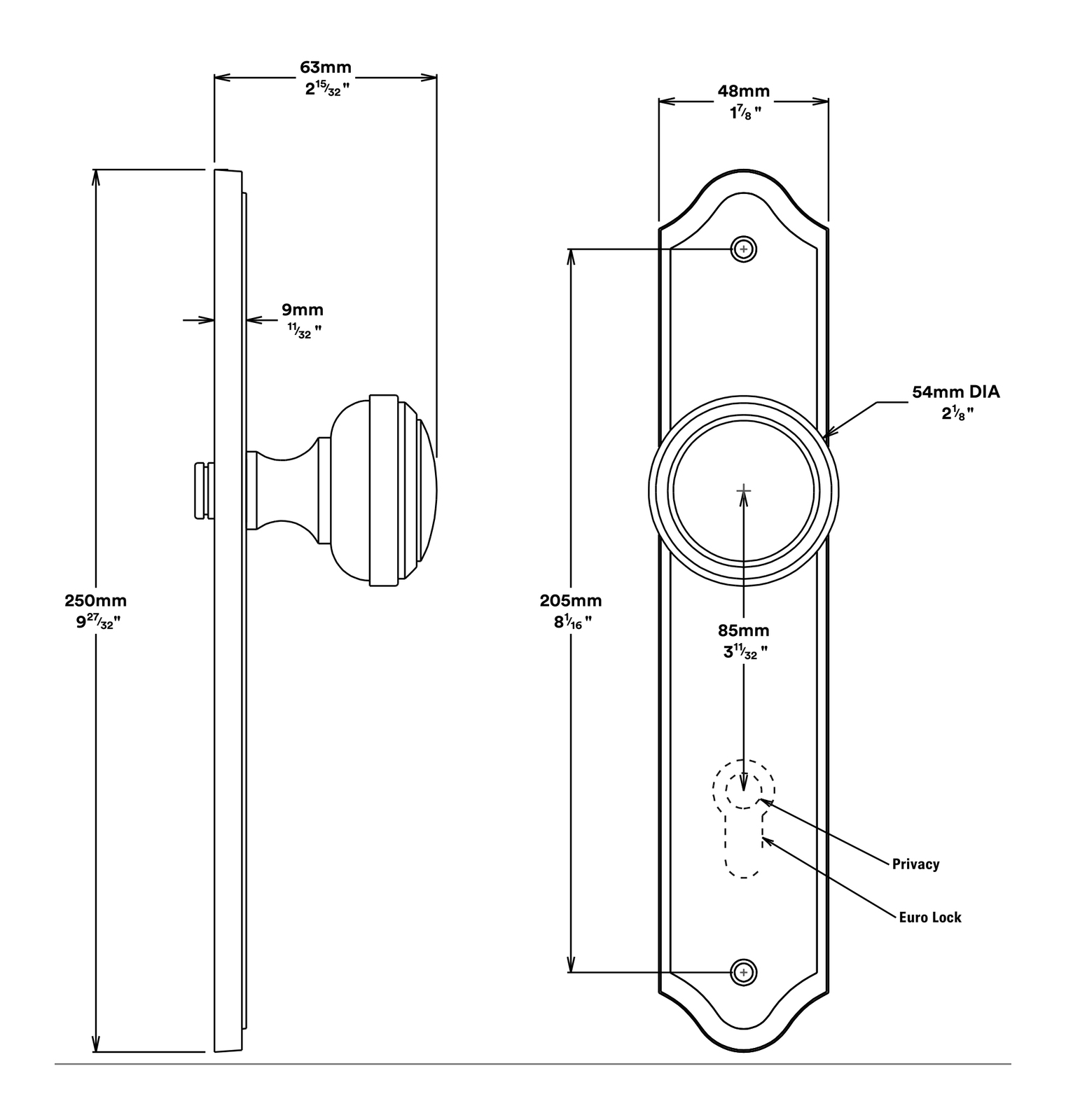

Specifications:

  • Backset: 60mm
  • Height: 250mm
  • Width: 48mm
  • Length: 54mm
  • Projection: 63mm
  • Centre to Centre: 85mm
  • Available Finish:
    • Brushed Brass
    • Brushed Chrome
    • Distressed Nickel
    • Matt Black
    • Polished Brass
    • Polished Chrome
    • Polished Nickel
    • Satin Nickel
    • Signature Brass

Note:

  • Knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).

SKU TRA12326KPRIV60_
Brand Iver
