Iver Sarlat Door Lever Handle on Chamfered Backplate

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

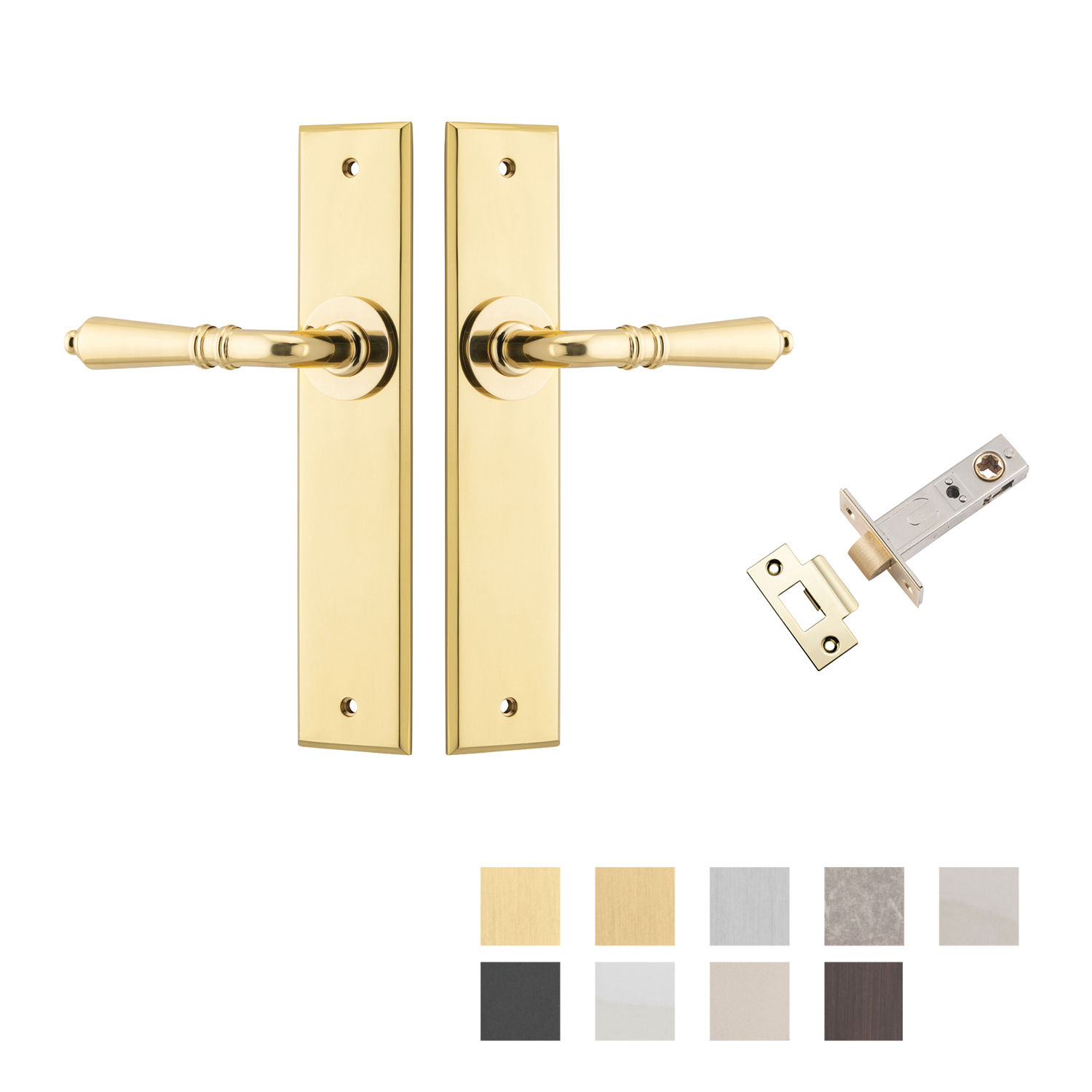

Includes:

  • 2 x Sarlat Levers on Chamfered Backplate

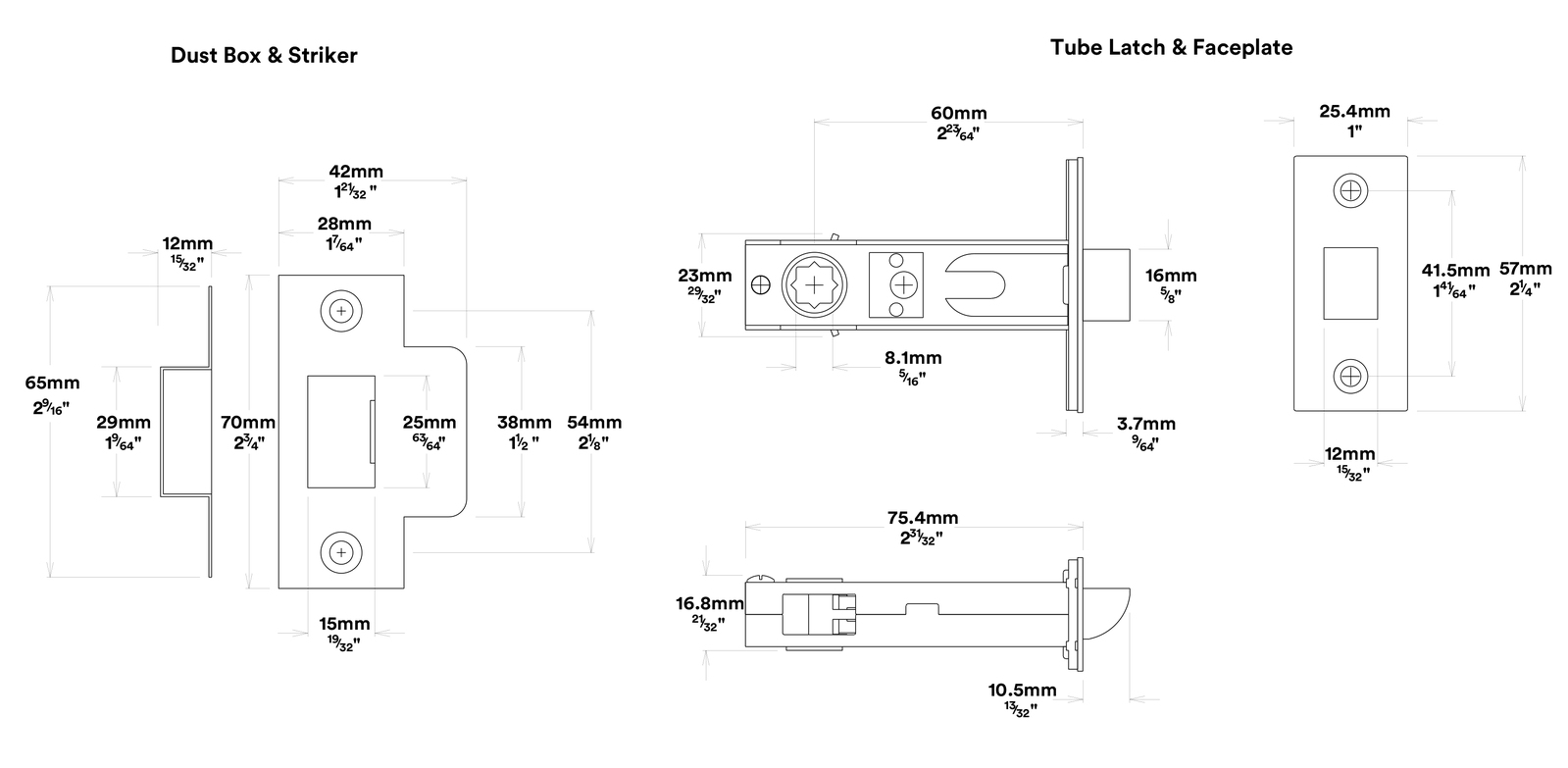

  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 15 x Screws
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 2 x Tie Bolts
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual

Features:

  • Understated and chic, the Osaka lever complements both neutral interiors and bold design through its minimalist rounded edges and flat surface
  • For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries

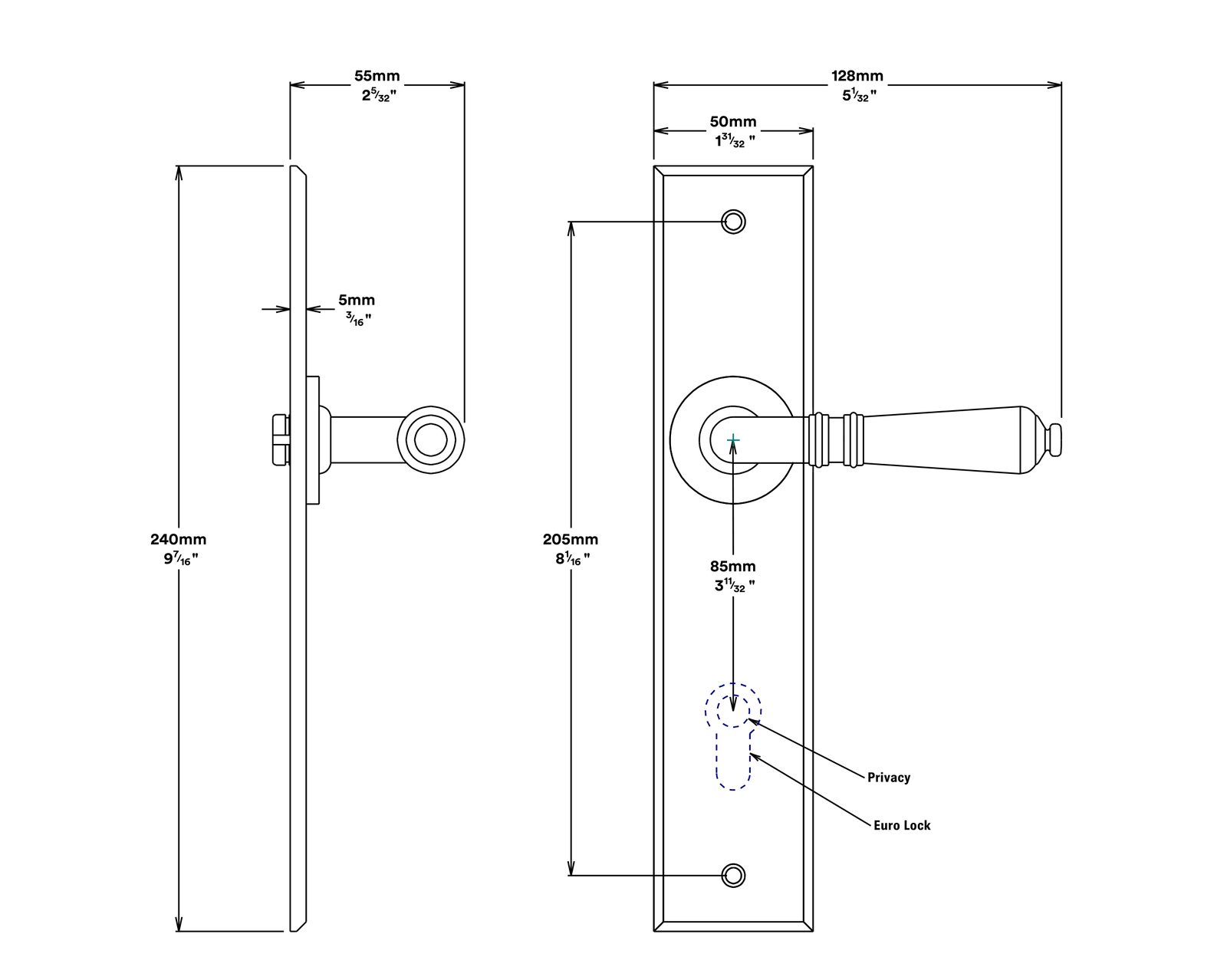

Specifications:

  • Height: 240mm
  • Width: 50mm
  • Length: 111mm
  • Projection: 55mm
  • Centre to centre: 205mm
  • Function: Passage
  • Available Finish:
    • Brushed Brass
    • Brushed Chrome
    • Distresed Nickel
    • Brushed Gold PVD
    • Matt Black
    • Polished Brass
    • Polished Chrome
    • Polished Nickel
    • Satin Nickel
    • Signature Brass

Notes:

  • Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
SKU TRA10780KPASS60_
Brand Iver
