Iver Sarlat Door Lever on Shouldered Backplate Privacy Kit with Turn
11712KPRIV60

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

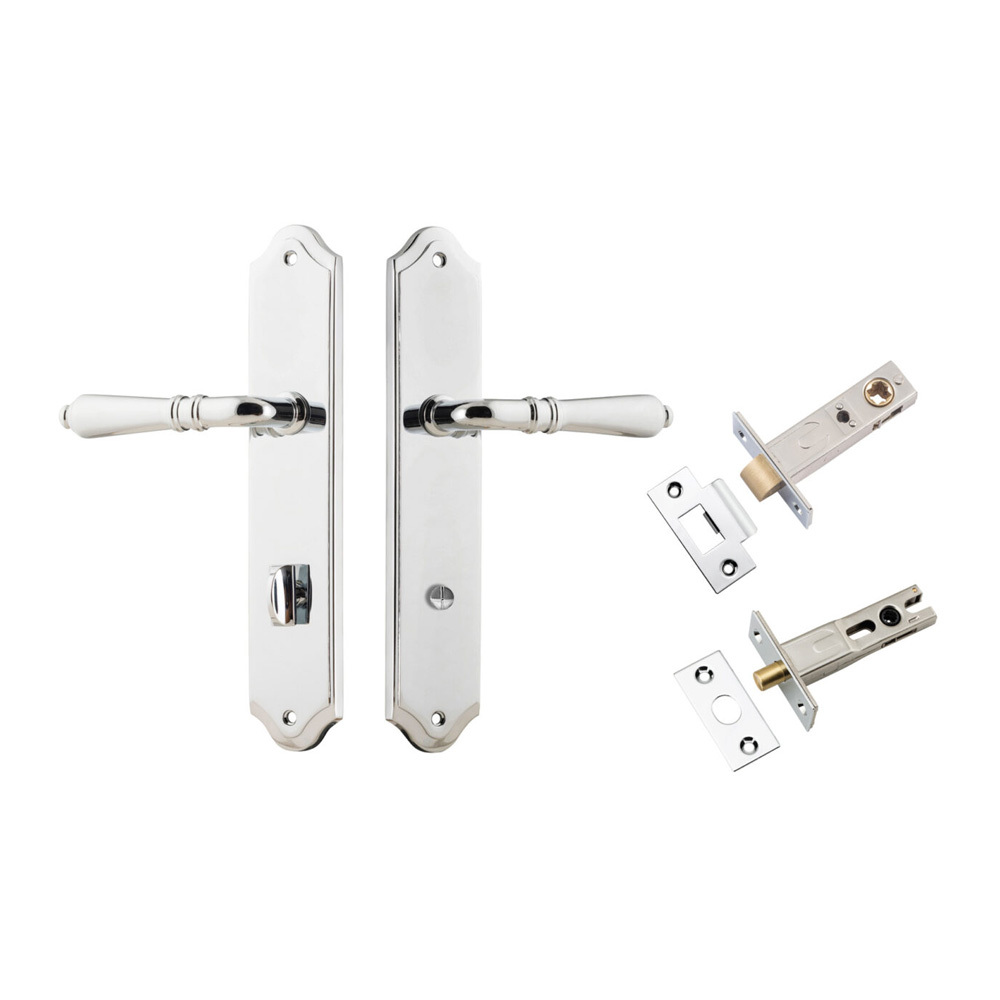

Includes:

• 2 x Levers on Backplates

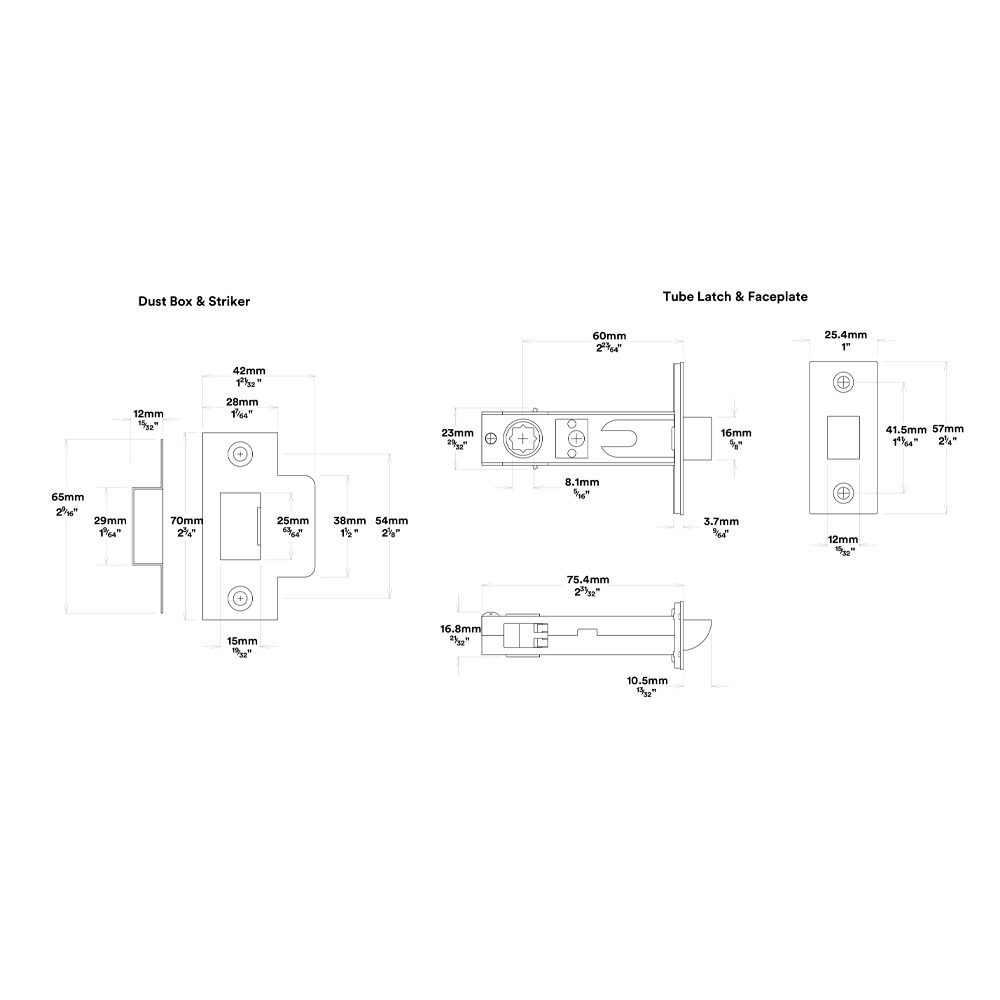

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

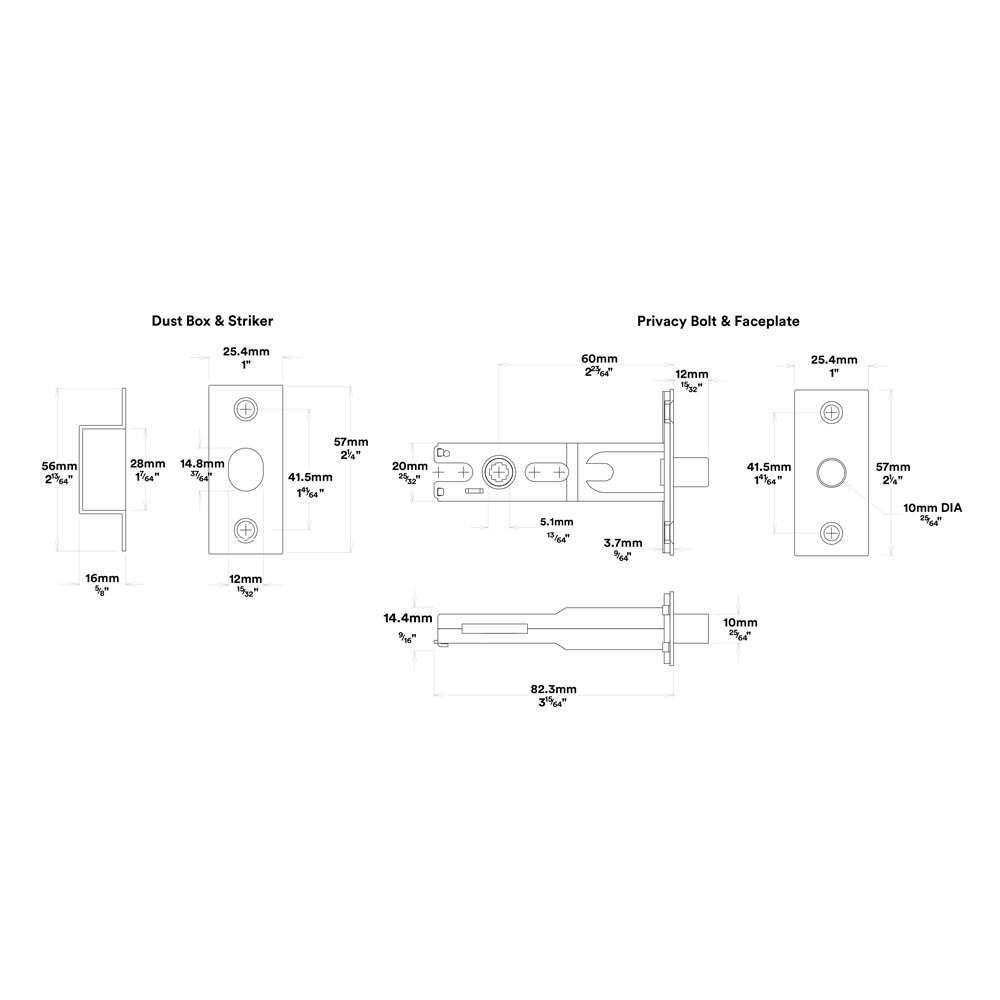

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Blend of modern beauty and timeless appeal featuring a classic fluted shape, ornamental ring detail and a decorative tip
• Sarlat lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function
• Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)
• Includes all components required to install on your door

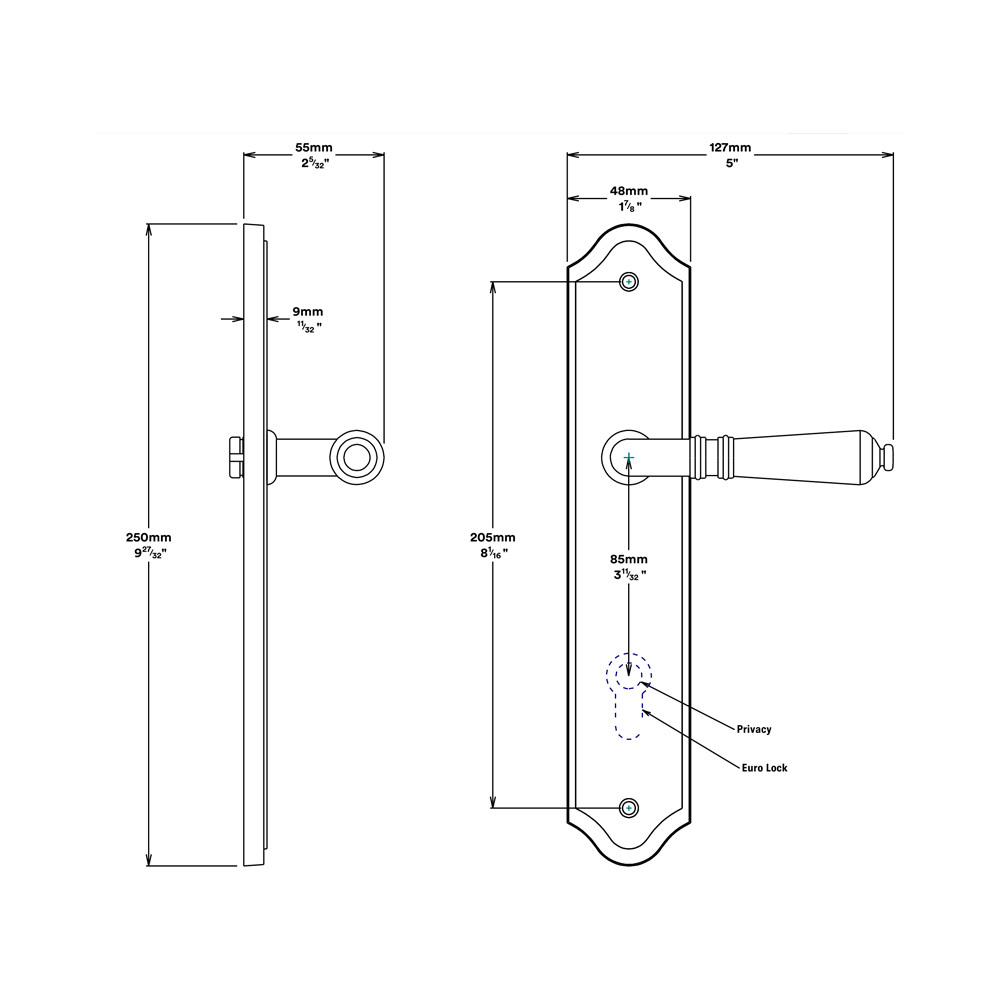

Specifications:

• Backset: 60mm
• Height: 250mm
• Width: 48mm
• Length: 113mm
• Projection: 55mm
• Centre to centre: 85mm
• Finish: Polished Chrome
