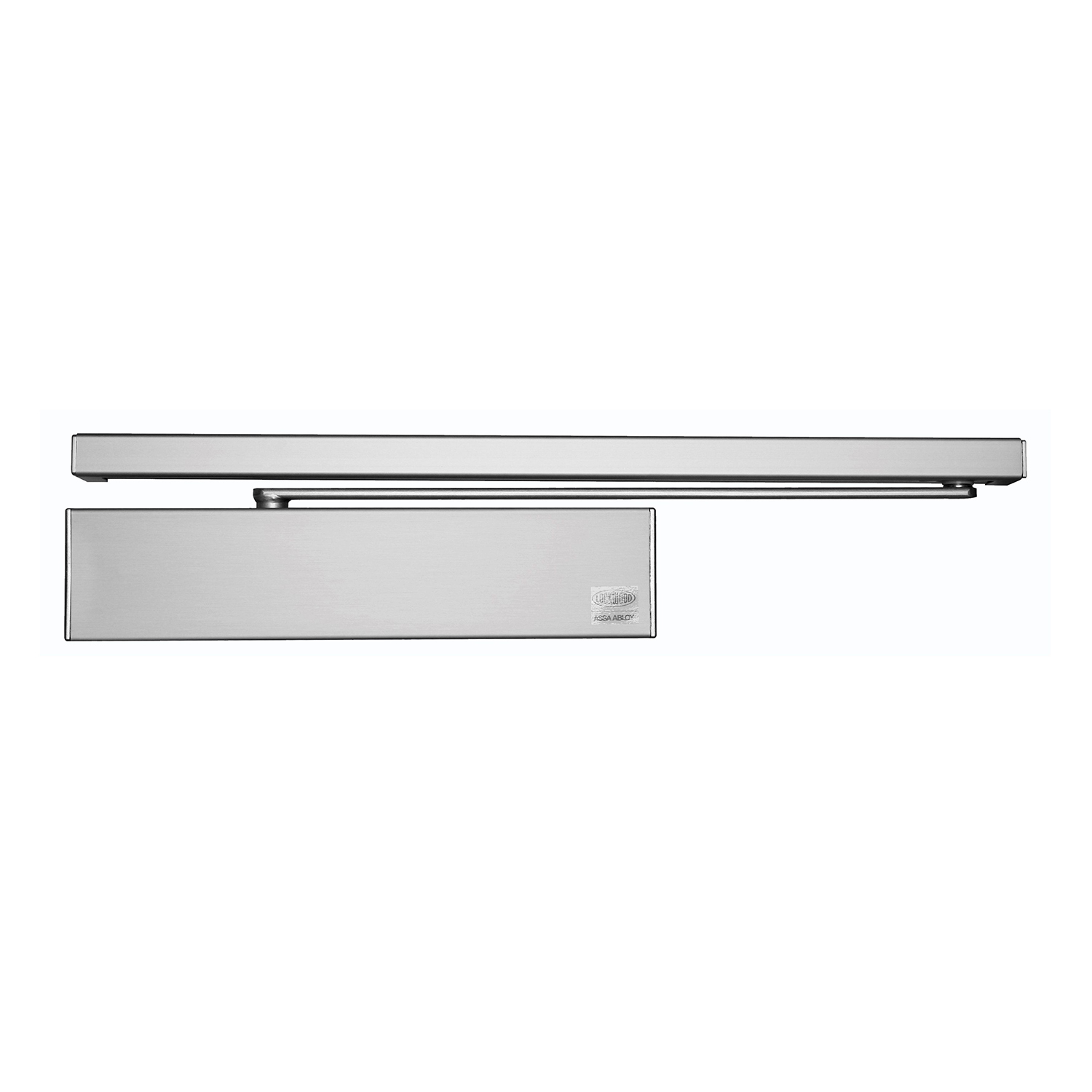

Lockwood Cam Action Door Closer
2616DASSS

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.

Features:

  • Premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc
  • Aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door
  • Light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height

Specifications:

  • Power: EN adjustable 1 to 6
  • Back Check: Adjustable
  • Handing: Non-handed, Suitable for left or right hand doors
  • Cover: Formed metal cover
  • Materials: Cast aluminium body manufactured from high-performance silicon alloy
  • Mechanism: CAM action
  • Mounting: Pull side, push side and over-door mounting
  • Valves: Two pressure relief valves are a standard feature to protect against abuse
  • Delayed Action: Adjustable
  • Closing Speed: Adjustable
  • Latching Speed: Adjustable
  • Finish: Satin Stainless Steel

Standards and Compliance:

  • Disabled Access Australian Standard (AS1428.1) Design for access and mobility.

Note: Hold open closers can not be used on fire doors.

SKU ASS2616DASSS
Barcode # 9340116000930
Brand Lockwood
