Lockwood Vivid V1 Passage Set

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

  • 2 x Lever
  • 2 x Rose Trim

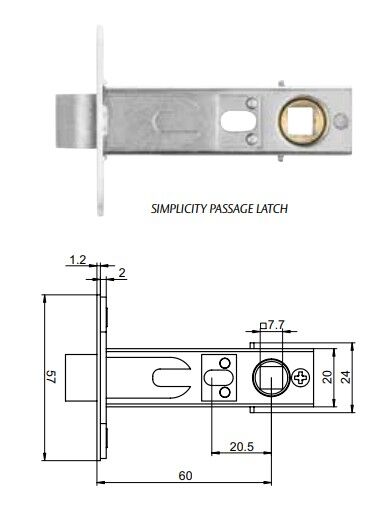

  • 1 x Passage Latch
  • 1 x Face Plate
  • 2 x Spindle
  • 2 x Spindle Springs
  • 2 x Through Fix Screws
  • 2 x Hex Inserts
  • 1 x Strike Plate
  • 1 x Dustbox
  • 4 x Timber Mounting Screws

Features:

  • A stylish range of internal door furniture suitable for use in residential dwellings.
  • All fixings are concealed beneath a removable rose trim providing an aesthetically appealing installation.
  • Finishes are derived from a physical vapor deposition (PVD) surface treatment which offers a range of benefits, including sustainability and durability.

Specifications:

  • Rose Diameter: 54mm
  • Rose Thickness: 12mm
  • Lever Length: 127mm
  • Lever Width: 22mm
  • Door Thickness: 32mm - 45mm
  • Projection: 53mm
  • Available Finish:
    • Gunmetal
    • Satin Brass
    • Satin Bronze

Standards and Compliance:

  • Tested to AS4145.2 2008 for Durability passing D7 - 300,000 cycles.
  • Tested to AS4145.2 2008 for Neutral Salt Spray, passing C6 - 168 hours.
  • AS1428.1-2009, Designed for access and mobility.
SKU ASSVIV1V1_
Brand Lockwood
