Metlam Moda Lock and Indicator Set
MODA_LOCK_ANMB

Privacy Indicator Bolt ideally used restrooms, especially public toilets or change rooms.

Privacy Indicator Bolt Function - is used to indicate whether a single-occupant room is occupied or not. These bolts also serve as the room's main lock or additional security.

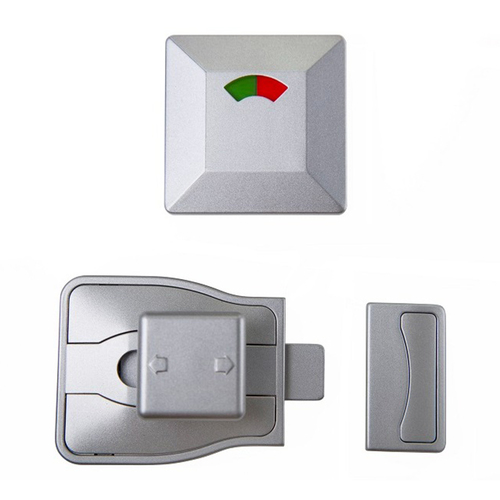

Includes:

• 1 x Indicator
• 1 x Slide Lock
• 1 x Staple

Features:

• A large eyelet allows for a clearer view of the vacant/ engaged signal.
• Solid one-piece diecast handle.
• A Unique 'Easy-Glide' Slide Lock for restricted hand mobility, limb loss, and hygiene protection.
• Raised directional arrows to assist those with vision impairment
• Functional modern design registered 'no backing plate' set up saves time on installation with an on-door easy adjustment to ensure a smooth fit.

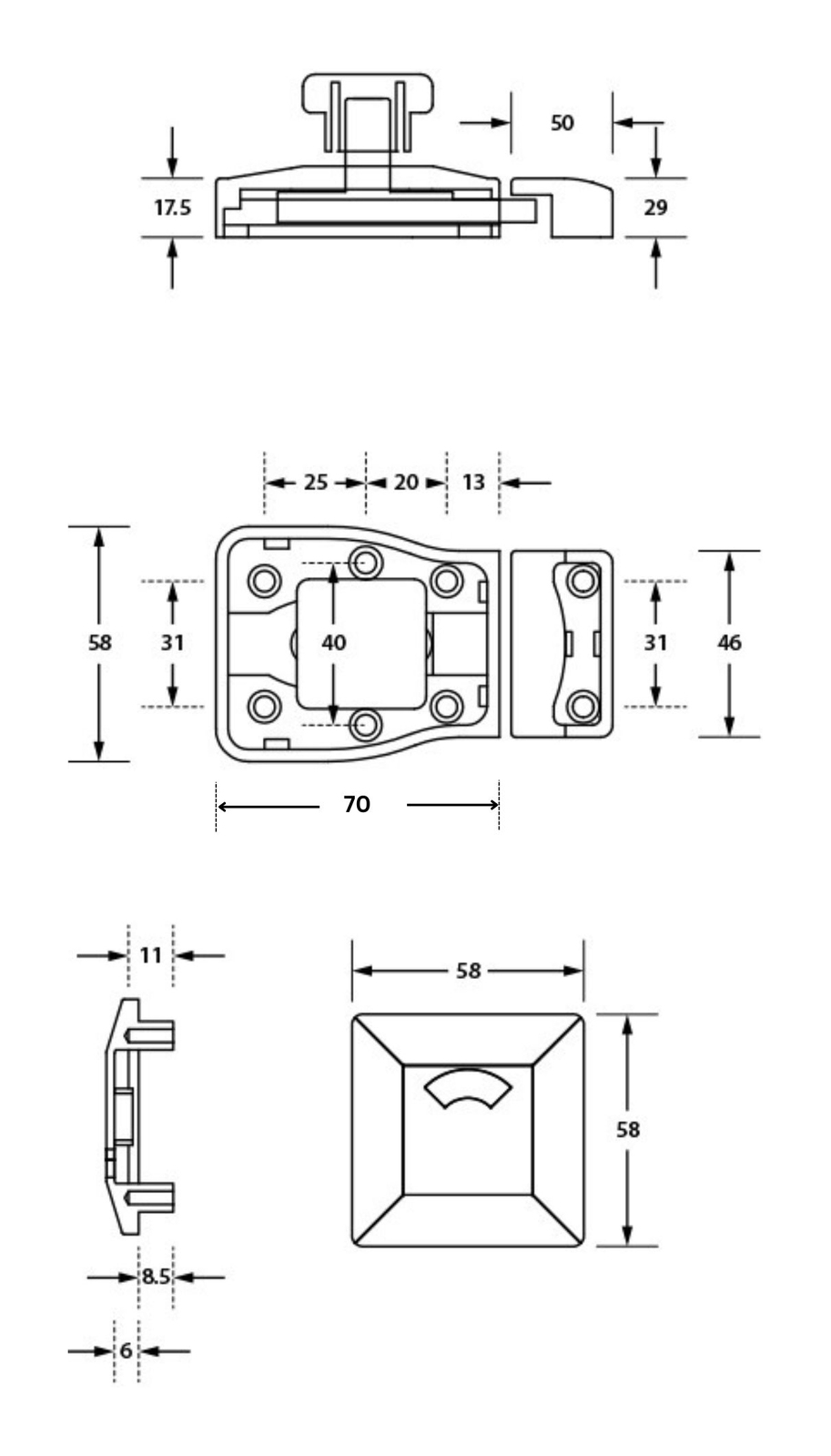

Specifications:

• Material: Diecast Zinc, Alloy ZP3ABS Snap-On Cover
• Fixing: Concealed Screw Fix
• Indicator Length: 58mm
• Indicator Width: 58mm
• Indicator Projection: 6mm
• Indicator Depth: 11mm
• Slide Lock Height: 58mm
• Slide Lock Width: 70mm
• Slide Lock Centre to Centre: 40mm
• Staple Height: 46mm
• Staple Width: 50mm
• Staple Projection: 29mm
• Satple Centre to Centre: 31mm
• Finish: Antimicrobial Coated

Note:

• This product is deemed to satisfy AS1428.1 Australian disability standards for use in ambulant and accessible toilet cubicles when installed in accordance with AS1428.1 guidelines.
